BSS Audio BLU-DAN Dante/AES67 to BLU Link Bridge Processor

Use the BLU-DAN Dante/AES67 to BLU Link Bridge Processor from BSS Audio to add Dante/AES67 connectivity to your BLU Link device. The system incorporates a BLU Link audio bus with 256 audio channels at 48 kHz. The processor enables you to send and receive up to 64 x 64 channels of audio simultaneously at 48 kHz to and from other Dante-enabled devices. The unit offers a primary and a secondary RJ45 Dante port for fault tolerance. The Secondary port can be configured for Switched or Redundant operation using Dante 4.0 Controller software. When a device is set for Switched operation, the Secondary Ethernet port will behave as a standard switch port, allowing daisy-chaining through the device.

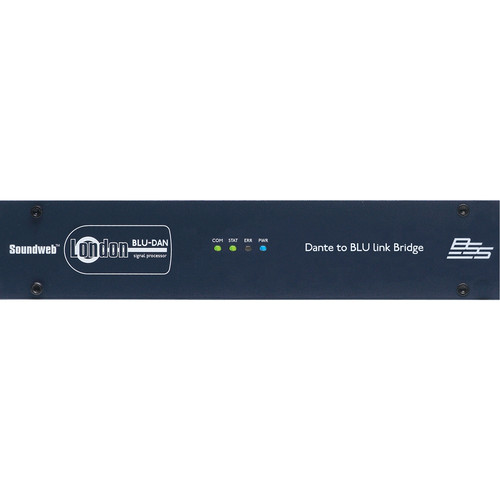

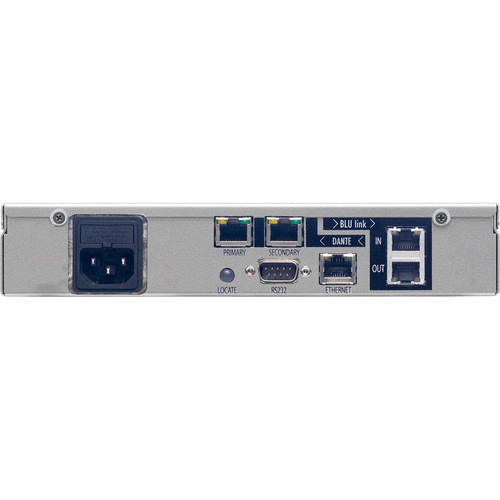

The unit features two Dante/AES67 RJ45 ports as well as a RS-232 and an additional RJ45 port for control. Additional features include a front panel with LED indicators, HiQnet Audio Architect, and a half-rack design. The BLU-DAN is compatible with separately available Cat 5e / 6 cables up to 328′ and comes with a rackmounting hardware, power cable, and rubber feet.
