Buffalo BS-XP2012 12-Port Ethernet Switch

Add to Wishlist

Interface Types:Ā Ethernet RJ45

Electrical Interface:Ā Ethernet 10Gigabit – 10Gbps

On-Board Cache:Ā 2MB

Bays/Ports/Slots:Ā 12

U Height:Ā 1U

Wattage/VA:Ā 50W

Voltage:Ā 110-240V Multi

4,899.00 د.إ

Add to Wishlist

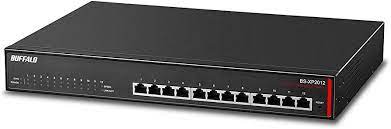

Buffalo BS-XP Series BS-XP2012 Manageable 1U 12-Port 10GbE Layer2 Full Duplex Ethernet Switch – Brand New

Buffalo BS-XP Series BS-XP2012 ManageableĀ 1U 12-Port 10 Gigabit Layer 2 Full Duplex Desktop / Rack-Mountable / Wall Mountalbe Ethernet Switch – Brand New

BS-XP Series
10Gigabit Layer 2 Switch

High Speed Switching for SMB
Buffaloā€™s BS-XP series of 10GbE switches offers an easy, cost-effective and energy-efficient way to extend your business network at blazing speeds. Plug and play installation requires no additional software or configuration; simply plug your network-ready devices into one of the available Ethernet ports. Each AUTO-MDIX port automatically detects and configures the correct connection while optional jumbo frame support and full duplex operation provide maximum performance.

Along with 802.3az Green Ethernet technology, the BS-XP series includes intelligent Power Control, an energy conservation feature that monitors the activity status of each port to reduce the total power consumed. Its durable, metal chassis has holes and comes with rack mounting accessories for easy wall- /rack-mounting or rubber feet for placement on a desktop.

With 10GbE speeds, eco-minded operation, performance-minded features and a lifetime warranty, Buffaloā€™s BS-XP series of switches is a perfect network extension for your business.

Features and Benefits

  • Eight/twelve 10GbE ports
  • 802.3az Green Ethernet technology
  • Automatic energy conservation feature reduces total power consumption
  • Auto-MDIX provides fast plug and play setup with any Ethernet cable
  • Durable metal chassis
  • Loop prevention or detection (depending on model)
  • VLAN Management
  • QoS
  • Link Aggregation
  • IGMP snooping
  • Traffic Management
SKU: BS-XP2012 Category:
BS-XP Series
10Gigabit Layer2 Switches
Model Number BS-XP2012
SPECIFICATIONS
Compatible models IEEE802.3u (100BASE-TX)
IEEE802.3ab (1000BASE-T)
IEEE802.3an (10GBASE-T)
IEEE802.3x (Flow Control)
IEEE802.3az (EEE)
Interface IEEE802.3u (100BASE-TX), IEEE802.3ab (1000BASE-T), IEEE802.3an (10GBASE-T)
Transmission speed 100Mbps (100BASE-TX), 1000Mbps (1000BASE-T), 10Gbps (10GBASE-T)
Data transfer method Store-and-Forward
Latency 10Ī¼sec
Buffer capacity 2MBytes
Backplane bandwidth 240Gbps
Data transfer rate 120Gbit/s
Address table 16000 entries
Number of Ports 100M/1000M/10G Full-Duplex 12 ports (all ports Auto-MDIX function deployment)
Applicable cable 100BASE-TX: UTP category 5
1000BASE-T: UTP category 5e or better
10GBASE-T: UTP category 6a or better
Transmission distance Up to 100m
Terminal shape RJ-45 type 8 terminal
Management function English, German, French Web configuration interface
Support function Jumbo Frame 9,216Byte support, Loop detection & prevention function, Bad packet filtering, VLAN (by firmware update), QoS (by firmware update), Link Aggregation (by firmware update)
Security feature User name, password; MAC address filter
VLAN feature To be added by firmware update
Power-supply voltage 100-240V, 50/60Hz
Power consumption 50W maximum
Quiescent current 0.900A maximum
Calorific value 180.0kJ/h maximum
Dimensions (WƗDƗH) 330(W) X 230(D) X 44(H) mm
Weight 2570g
Operating environment 0 ~ 50 Ā° Celsius, (non-condensing) 10-85% humidity
Approvals VCCI Class A, FCC / IC Class A, UL, CE, CB
Supported Standards IIEEE802.3u (100BASE-TX)
IEEE802.3ab (1000BASE-T)
IEEE802.3an (10GBASE-T)
IEEE802.3x (Flow Control)
IEEE802.3az (EEE)
19-inch rack mount Support (mounting bracket included)



ROHS Compliant

Weight:Ā 6Ā lb
