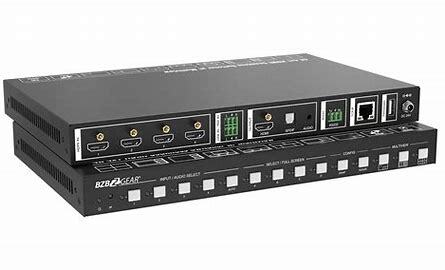

BZBGEAR 4×1 4K HDMI Seamless Switcher/Scaler with Audio De-Embedding and Multiview

Add to Wishlist
  • 4 x HDMI Inputs, 1 x HDMI Output
  • Input/Output up to 4K30 Video
  • Audio De-Embedding via 3.5mm/TOSLINK Out
  • 2 x L/R 3-Pin Terminal Audio Inputs
  • Auto-Scaling for Each Source Input
  • Multiview Output, 16 Preset Layouts
  • HDCP 2.2 Support
  • Front-Panel, IP, IR, or RS-232 Control

4,999.00 د.إ

Add to Wishlist

Switch and auto-scale up to four 4K HDMI sources with the 4×1 4K HDMI Seamless Switcher/Scaler with Audio De-Embedding and Multiview from BZBGear. The switcher features four HDMI inputs, which can be switched manually or automatically to the HDMI output. There are also two 3-pin terminal blocks to input 2-channel audio. Each input supports up to 4K30 4:4:4 video and output up to 4K30 RGB video.

The switcher allows you to input line-level analog audio via its two 3-pin terminal blocks, and you can also de-embed audio for speakers or an audio mixer using the 3.5mm analog and TOSLINK S/PDIF digital outputs. The multiview function on the HDMI output allows you to view all four inputs on a single monitor, and the layout and window size can be adjusted. The switcher can be controlled via front-panel buttons, a web GUI, an IR remote control, or RS-232 serial control.

Key Features
Four HDMI inputs, one HDMI output
Supports resolutions up to 4K30 4:4:4
Multiview output to simultaneously display multiple inputs on a single monitor
3.5mm analog and TOSLINK digital outputs for audio de-embedding
Line-level audio mix input
IR remote, RS-232, web GUI, front-panel control options
Seamless switching between four HDMI inputs
Auto-scaling for each source input
Single window auto-switching
Cycle through windows using the swap button
Size and layout of windows can be customized
Windows have three different size options
16 pre-defined layouts
SKU: BG-UMV-HA41 Category: Tag:
Processing
Switching Type
IR Remote, Pushbutton, Software
Input
Video Inputs
4x HDMI (1.4) Female
Input Video Format
HDMI (4:4:4)
UHD 4K at 30 fps
Audio Inputs
2x Block 3-Pin Stereo Analog Female
Embedded Audio Input
HDMI: 2-Channel (per Input)
Output
Video Outputs
1x HDMI (1.4) Female
Output Video Format
HDMI
UHD 4K at 30 fps
Audio Outputs
1x TOSLINK Stereo S/PDIF Female
1x 1/8″ / 3.5 mm TRS Stereo Analog Female
Embedded Audio Output
HDMI
Connectivity
Other I/O
1x Block 3-Pin RS-232 Input/Output
1x RJ45 LAN Input/Output
HDCP Support
Yes, Version 2.2
Hardware
Wi-Fi
No
Bluetooth
No
Power
Power I/O
1x Barrel (24 VDC at 1.2 A) Input
Power Consumption
Power Supply: 100 to 240 VAC (13 W)
Environmental
Operating Temperature
27 to 87°F / -5 to 55°C
Storage Temperature
-13 to 158°F / -25 to 70°C
Operating Humidity
10 to 90%
General
Dimensions
11.2 x 6.79 x 1.1″ / 28.5 x 17.25 x 2.7 cm
Weight
2.73 lb / 1.24 kg
Packaging Info
Package Weight
4.43 lb
Box Dimensions (LxWxH)
13.2 x 12.2 x 2.7″
