BZBGEAR BG-PSC7X2 7×2 4K UHD Presentation Switcher Scaler with HDMI/VGA/Component/Composite Video & Audio

Add to Wishlist
  • Multi-Display supports two HDMI mirrored outputs
  • Multiple Control Options – Front panel, IR, RS-232, TCP/IP
  • Audio Support – Embed via 3.5mm line in or de-embed audio signals Coaxial S/PDIF or 3.5mm
  • Crystal Clear Images – Supports image resolutions up to 4K2K@30Hz 4:4:4
  • LCD Display to easily view system status at a glance

د.إ4,999.00

Add to Wishlist

The BZBGEAR BG-PSC7X2 multi-function presentation switcher provides users with a variety of inputs, allowing numerous devices to be displayed on a single HDMI display. Supporting input signals up to 4K@30Hz, this unit is also equipped with an integrated scaler which allows resolutions as low as 640 x 480 to be scaled up to 1920×1080@60Hz. The powerful dual-switcher mode allows the BG-PSC7X2 to simultaneously function as a 4×1 4K HDMI switcher and a 7×1 1080P multi-format switcher. Featuring audio embedding, de-embedding, and supporting variety of input connections, this unit is an effective solution for use in auditoriums, classrooms, and conference rooms.

Connectivity

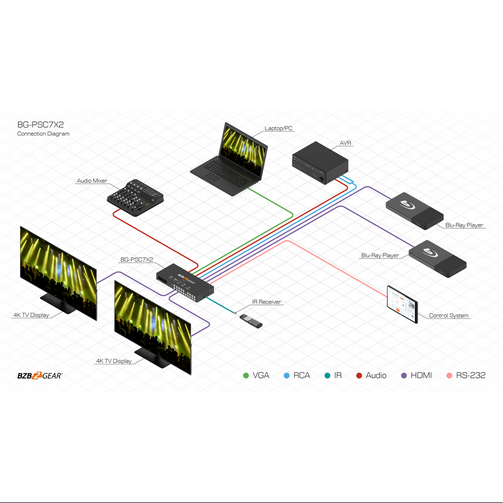

The BG-PSC7X2 is equipped with seven inputs including four HDMI, one VGA, one component (YPbPr), and one composite A/V. The VGA input is paired with a 3.5mm audio input. Two mirrored HDMI outputs provide connections for dual displays. Equipped with one digital coax and one RCA line output, the BG-PSC7X2 provides audio de-embedding for connection to external audio systems. The digital bypass circuit allows 4K@30Hz 4:4:4 sources to be displayed.

Control
The BG-PSC7X2 can be operated via the front panel buttons, included IR remote, or RS-232, commands. The LCD menu display provides access to EDID management settings to ensure stable signals and reliable switching. Scaler settings and audio format settings can also be adjusted, providing a high degree of flexibility for installation. An IR input port allows integration with IR distribution and third-party control systems.

  • Features:

    • Multi-Display supports two HDMI mirrored outputs
    • Multiple Control Options – Front panel, IR, RS-232, TCP/IP
    • Audio Support – Embed via 3.5mm line in or de-embed audio signals Coaxial S/PDIF or 3.5mm
    • Crystal Clear Images – Supports image resolutions up to 4K2K@30Hz 4:4:4
    • LCD Display to easily view system status at a glance
    • Accepts input resolutions up to 4K@30, outputs scale to 1080P
Category: Tag:

  • Specifications:

    • Bandwidth: 10.2Gbps
    • Video Input Connectors:
      – 4x HDMI Type A
      – 1x VGA
      – 1x YPbPr
      – 1x AV
    • Video Output Connectors: 2x HDMI Type A
    • Audio Input Connectors:
      – 2x 3.5mm stereo jack
      – 4x RCA (2x L/R)
    • Audio Output Connectors:
      – 1x 3.5mm stereo jack
      – 1x RCA (SPDIF)
    • RS-232 Serial Port: 1x DB-9 connector
    • IR Input Ports: 1x 3.5mm stereo jack
    • Dimensions (WxHxD): 12.7″ x 5.3″ x 1.7″ (323mm x 135mm x 44mm)
    • Shipping Weight: 2.65lbs (1.2kg)
    • Operating Temperature: 32°F – 104°F (0°C – 40°C)
    • Storage Temperature: -4°F – 140°F (-20°C – 60°C)
    • Power Supply: DC 5V/2A

  • Item Includes:

    • 1x BG-PSC7X2 7×2 4K UHD Presentation Switcher Scaler
    • 1x 5V/2A power supply
    • 1x Remote control
    • 1x IR Receiver
    • 1x Mounting kit
