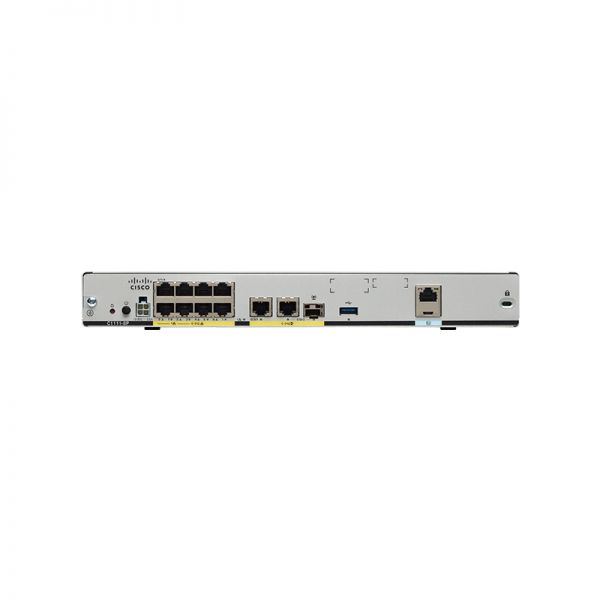

C1111-8PLTEEA – Cisco 1100 Series Integrated Services Routers
| Model: | C1111-8PLTEEA – Cisco 1100 Series Integrated Services Routers |
| Detail: |
ISR 1100 8P Dual GE SFP Router w/ LTE Adv SMS/GPS EMEA & NA
|
| Model | C1111-8PLTEEA |
| GE | 1 |
| GE/SFP combo | 1 |
| ADSL2/VDSL2+ | N/A |
| LTE Advanced (CAT6) | 1 EMEAR & North America |
| 802.11ac | N/A |
| GE | 8 |
| PoE | 4 |
| PoE+ | 2 |
| Integrated USB 3.0 AUX/console | Yes |
| Dimensions (H x W x D) | H x W X D = 1.75 x 12.7 x 9.6 in.
(44 x 323 x 244 mm) (includes rubber feet) |
9,999.00 د.إ
Cisco 1100 Series Integrated Services Router (ISRs) delivers Cisco IOSĀ® XE Software, providing WAN, comprehensive security, wired and wireless access in a single, high-performance platform. Cisco 1100 Series ISR is ideal for Small and Medium enterprise branch offices. The C1111-8PLTEEA is the ISR 1100 8P Dual GE SFP Router with w/ LTE Adv SMS/GPS, EMEA & NA.
Table 2 shows the business benefits.
| Business need | Features/description |
| Lightweight, compact size with low power consumption | āCan be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors. |
| High performance to run concurrent services | āHigh performance allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, video, and wireless services. |
| High availability and business continuity | āĀ Redundant WAN connections for failover protection and load balancing.
āĀ Dynamic failover protocols such as Virtual Router Redundancy Protocol (VRRP; RFCĀ 2338), Hot Standby Router Protocol (HSRP), and Multigroup HSRP (MHSRP). |
| Consistent, high application performance levels | āĀ The router can run multiple services simultaneously with minimal performance degradation. |
| Risk mitigation with multilevel security | āĀ Network perimeter security with integrated application inspection firewall.
āĀ Data privacy through high-speed IP Security (IPsec) Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption. āĀ High-performance VPNs: DMVPN, FlexVPN, GET VPN, EzVPN āĀ Cisco Umbrellaā¢Ā security architecture to provide content filtering via category-based URL classification and blocking, thus helping increase productivity and providing better use of company resources. āĀ Enforced security policy with OpenDNS. āĀ Security hardware acceleration. āĀ Trustworthy systems with Field-Programmable Gate Array (FPGA) and hardware anchor. āĀ Encrypted traffic analytics maintain integrity of encrypted flow |
| Unified control of wired and wireless networks from a common console for streamlined operations | āĀ Simplifies and centralizes configuration and management of wireless and wireline devices. Supports WLAN services without requiring a wireless LAN controller.
āĀ Supports Mobility Express for WLAN-enabled routers. |
| Remote configuration and management to keep local IT staff lean | āĀ Supports separate console/auxiliary and USB ports.
āĀ Can be configured to work with optional USB token. āĀ Supports TR-069. |
| Performance
āĀ Throughput āĀ Service reliability |
āĀ Crypto performance up to 250 Mbps for 1100-8P and 150 Mbps for 1100-4P.
āĀ A distributed multicore architecture with the industryās first internal services plane. āĀ Remote installation of application-aware services that run identically to their counterparts in dedicated appliances. |
| Lower WAN expenditures | āĀ Cisco Software-Defined WAN (SD-WAN) (over the Cisco Application Policy Infrastructure Controller Enterprise Module [APIC-EM]) support for optimized WAN connection. |
| Pay as you grow: IPsec performance upgrade model | āĀ Router IPsec capacity can be increased with a remote performance-on-demand license upgrade (no hardware upgrade) for exceptional savings andCapEx budget management. |
| IT consolidation, space savings, and improved Total Cost of Ownership (TCO) | āĀ Single converged branch platform integrates routing, switching, security, and performance management capabilities. |
| Business continuity and increased resiliency | āĀ The entire 1100 Series supports Power over Ethernet (PoE) and PoE+ power toĀ endpoints. |
Product Accessories
Licenses
Table 3 shows the licenses for C1111-8PLTEEA.
| Licenses | Description |
| SL-1100-4P-APP | AppX License for Cisco ISR 1100 4P Series |
| C1-SL-1100-4P-APP | AppX Foundation License for Cisco ISR 1100 4P Series |
| SL-1100-4P-SEC | Security License for Cisco ISR 1100 4P Series |
| C1-SL-1100-4P-SEC | Security License for Cisco ISR 1100 4P Series |
| SL-1100-4P-SECNPE | NPE Security License for Cisco ISR 1100 4P Series |
Small Form-Factor Pluggable Supported
Table 4 shows the SFP for Cisco 1100 Series Routers.
| Small Form-Factor Pluggable | ISR 1100 8P | ISR 1100 4P | Description |
| GLC-EX-SMD | Yes | Yes | 1000BASE-EX SFP transceiver module, SMF, 1310nm, DOM. |
| GLC-LH-SMD | Yes | Yes | GE SFP, LC connector LX/LH transceiver; with DOM. |
| GLC-SX-MMD | Yes | Yes | GE SFP, LC connector SX transceiver; with DOM. |
| GLC-ZX-SMD | Yes | Yes | 1000BASE-ZX SFP; with DOM. |
| GLC-FE-100ZX | Yes | Yes | 100BASE-ZX SFP (80km). |
| GLC-GE-100FX | Yes | Yes | 100FX SFP on GE ports. |
| GLC-BX-D | Yes | Yes | 1000BASE-BX SFP, 1490NM. |
| GLC-BX-U | Yes | Yes | 1000BASE-BX SFP, 1310NM. |
Compare to Similar Item
Table 5 shows the comparison between C1111-8PLTEEA and C1111-8P.
| Model | C1111-8P | C1111-8PLTEEA |
| WAN GE | 1 | 1 |
| WAN GE/SFP combo | 1 | 1 |
| ADSL2/VDSL2+ | N/A | N/A |
| LTE Advanced (CAT6) | N/A | 1 EMEAR & North America |
| 802.11ac | N/A | N/A |
| LAN GE | 8 | 8 |
| PoE | 4 | 4 |
| PoE+ | 2 | 2 |
| Integrated USB 3.0 AUX/console | Yes | Yes |
C1111-8PLTEEA Specification |
|
| Description | ISR 1100 8P Dual GE SFP Router w/ LTE Adv SMS/GPS EMEA & NA |
|
Physical Properties |
|
| Dimensions (H x W x D) | LTE models:
H x W X D = 1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm) (includes rubber feet) |
|
AC Input Power |
|
| Input voltage | Universal 100 to 240 VAC |
| Frequency | 50-60 Hz |
| Input current | PoE not enabled: 0.82A maximum
PoE enabled: 1.55A Maximum |
| Surge current | 90 A peak and less than 8 Arms per half cycle |
|
Ports |
|
| Micro USB Port | One RJ-45: Separate console port |
| USB port | USB 3.0 Type A host port
USB devices supported: USB flash memory |
| Console port | One USB 5-pin micro Type B: Console management connectivity |
| 10/100/1000 Gigabit Ethernet | Two GE ports allocated among RJ45 and SFP as:
One combo port with 10/100/1000RJ-45 Ethernet port or SFP Ethernet port (labeled GE0/0/0) One dedicated 10/100/1000RJ-45 Ethernet port (labeled GE0/0/1) |
| Wireless VLANs | 32 (encrypted and non-encrypted VLANs) |
| Wireless specifications | 2×2 .11ac Wave 2 |
| Default and maximum DRAM | 4GB |
| Default and maximum flash | 4GB |
| Inline PoE | 4 ports for -8P PIDs, 2 ports for -4P PIDs
802.3af-compliant PoE or 802.3at-compliant PoE+ |
| Acoustic for Cisco 1100 Series ISRs | Not Applicable – Fanless design |
| Approvals and compliance | Emission
47 CFR Part 15
CISPR 32 Edition 2 EN 300 386 V1.6.1 EN 55032:2012/ AC:2013 EN 55032:2015 EN61000-3-2 2014 EN61000-3-3: 2013 ICES-003 ISSUE 6:2016 KN 32: 2015 V-2/2015.04 V-3/2015.04 TCVN 7189: 2009 CNS13438: 2006 IEC 60950-1 EN 60950-1 UL 60950-1 CSA C22.2 No. 60950-1 Immunity CISPR24: 2010 + A1: 2015 EN 300 386 V1.6.1 EN55024: 2010 + A1: 2015 KN35: 2015 TCVN 7317: 2003 |
|
Environmental |
|
| Operating humidity | 5 to 85% relative humidity |
| Operating temperature | 32 to 104Ā°F (0 to 40Ā°C) Sea Level;
32 to 77Ā°F (0Ā°C to 25Ā°C) at 10,000 ft 1.5Ā°C derating per 1000 ft |
| Altitude in China | 0-6560 ft (0-2000 m) |
| Altitude in all other countries | 0-10,000 ft (0-3050 m) |
|
Transportation and Storage |
|
| Nonoperating temperature | -40 to 158Ā°F (-40 to 70Ā°C) |
| Nonoperating humidity | 5 to 95% relative humidity (noncondensing) |
| Nonoperating altitude | 0 to 15,000 ft (0 to 4570m) |
