| Model: | C3650-STACK-KIT= Catalyst 3650 Series Spare StackWise |
| Detail: |
Cisco Catalyst 3650 Stack Module Spare
|
11,499.00 د.إ

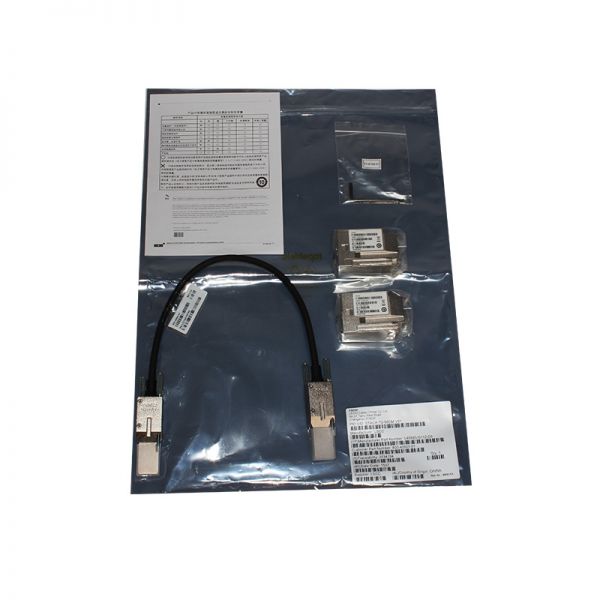

C3650-STACK-KIT= is a Cisco Catalyst 3650 Stack Module Spare. It includes a StackWise Adapter and a StackWise Cable.
The Cisco Catalyst 3650 supports an optional stacking module that is based on the Cisco StackWise-160 technology. StackWise-160 has a stack bandwidth of 160 Gbps. It creates a highly resilient single unified system of up to 9 switches. It also enables local switching in Cisco Catalyst 3650 Series Switches.
Note:
| ā | Stack-Wise Adapter | ā£ | Stack-Wise cable |
| ā” | A 3650 switch | ā¤ | Another 3650 switch with Stack-Wise Adapter |
| ā¢ | A 3650 switch with Stack-Wise Adapter | ā„ | Four Stackable 3650 switches |
Installation steps:
1. Removing the Stack-Wise Adapter Blank from a Stack-Wise Port of the switch.
2. Installing the Stack-Wise Adapter in a Stack-Wise Port.
3. Connecting the Stack-Wise Cable to the Stack-Wise Adapter.
4. Use the Stack-Wise Cables to connect at least four switches.
Then you finish the installation. (see the Figure ā„)
C3650-STACK-KIT= Specifications |
|
| Specification | Details |
| Product Brand | Cisco |
| Product Name | C3650-STACK-KIT= |
| Compatibility | Cisco Catalyst 3650 Series Switches |
| Number of Ports | 2 x Stack ports |
| Networking Type | Network stacking module |
| Connectivity Technology | Wired |
| Data Transfer Rate | 160 Gbps |
| Features | Cisco StackWise-160 technology |
| Operating Temperature | 32Ā°F to 113Ā°F (0Ā°C to 45Ā°C) |
| Operating Humidity | 10% to 95% (non-condensing) |
