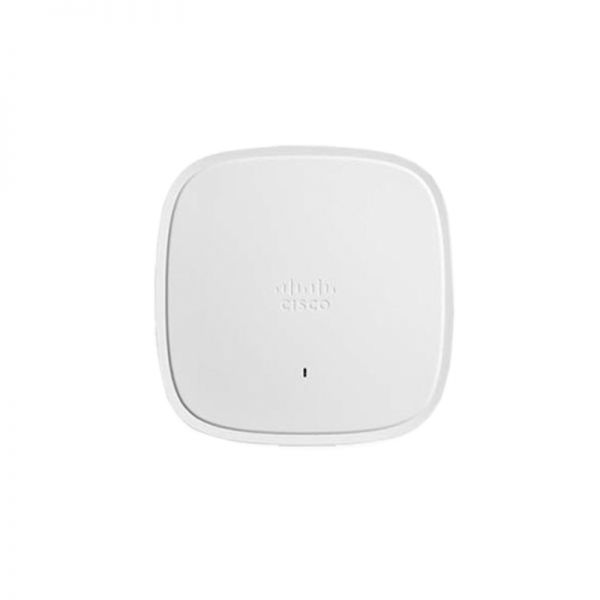

C9120AXI-Q – Cisco Catalyst 9120 Access Point


Cisco Catalyst 9120AX Access Point, internal antennas; Wi-Fi 6; 4×4:4 MIMO, Q Domain

10,899.00 د.إ

C9120AXI-Q Overview

CiscoĀ® CatalystĀ® 9115 Series Wi-Fi 6 Access Points are the next generation of enterprise access points. They are resilient, secure, and intelligent. C9120AXI-Q is the Cisco Catalyst 9120AX Access Point, internal antennas; Wi-Fi 6; 4×4:4 MIMO, Q Domain.

Product Details

Cisco AP 9120 series provides these features:

– 802.11ax (Wi-Fi 6)

– Cisco RF ASIC

– Uplink/downlink OFDMA

– MU‑MIMO technology

– Target wake time

– BSS coloring

– Intelligent Capture

– Flexible Radio Assignment

– Dual 5-GHz radio support

– Smart antenna connector

– Cisco Mobility Express

– Multigigabit Ethernet support

– Bluetooth 5.0

– Container support for applications

– Apple Features

SKU: C9120AXI-Q Category: Tag:

C9120AXI-Q Specification

C9120AXI-Q Specification

Description Cisco Catalyst 9120AX Access Point, internal antennas; Wi-Fi 6; 4×4:4 MIMO, Q Domain
Software ā—Ā Ā Cisco Unified Wireless Network Software Release 8.9.x or later

ā—Ā Ā Cisco IOS ® XE Software Release 16.11 with AP Device Pack, or later

Supported wireless LAN controllers ā—Ā Ā Cisco Catalyst 9800 Series Wireless Controllers

ā—Ā Ā Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller

802.11n version 2.0 (and related) capabilities ā—Ā Ā 4×4 MIMO with four spatial streams

ā—Ā Ā Maximal Ratio Combining (MRC)

ā—Ā Ā 802.11n and 802.11a/g beamforming

ā—Ā Ā 20- and 40-MHz channels

ā—Ā Ā PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)

ā—Ā Ā Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)

ā—Ā Ā 802.11 Dynamic Frequency Selection (DFS)

ā—Ā Ā Cyclic Shift Diversity (CSD) support

802.11ac ā—Ā Ā 4×4 downlink MU-MIMO with four spatial streams

ā—Ā Ā MRC

ā—Ā Ā 802.11ac beamforming

ā—Ā Ā 20-, 40-, 80-, and 160-MHz channels

ā—Ā Ā PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz)

ā—Ā Ā Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)

ā—Ā Ā 802.11 DFS

ā—Ā Ā CSD support

802.11ax ā—Ā Ā 4×4 downlink MU-MIMO with four spatial streams

ā—Ā Ā Uplink/downlink OFDMA

ā—Ā Ā TWT

ā—Ā Ā BSS coloring

ā—Ā Ā MRC

ā—Ā Ā 802.11ax beamforming

ā—Ā Ā 20-, 40-, 80-, and 160-MHz channels

ā—Ā Ā PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz)

ā—Ā Ā Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)

ā—Ā Ā 802.11 DFS

ā—Ā Ā CSD support

Integrated antenna Flexible radio (either on 2.4GHz or on 5GHz)

ā—Ā Ā 2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth

ā—Ā Ā 5 GHz, peak gain 5 dBi, internal antenna, omnidirectional in azimuth

Dedicated 5GHz radio

ā—Ā Ā 5 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth

External antenna (soldĀ separately) ā—Ā Ā Cisco Catalyst 9120E Access Points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)

ā—Ā Ā Cisco Catalyst 9120P Access Points) are certified for use with antenna gains up to 13 dBi (2.4 GHz and 5 GHz) with the AIR-ANT2513-P4M-N= antenna

ā—Ā Ā Cisco offers the industry’s broadest selection ofĀ antennas, delivering optimal coverage for a variety of deployment scenarios

ā—Ā Ā Supports Self-Identifiable Antennas (SIA) on one RP-TNC port

Smart Antenna Connector ā—Ā Ā Available on the 9120E and on the 9120P only

ā—Ā Ā Compact multi RF connector with DART interface

ā—Ā Ā Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector when used with antennas with RP-TNC connector

ā—Ā Ā Required when running the flexible radio as either a second 5-GHz serving radio or a Wireless Security Monitoring radio

Interfaces ā—Ā Ā 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz

ā—Ā Ā Management console port (RJ-45)

ā—Ā Ā USB 2.0 @ 3.75W (enabled via future software)

Indicators ā—Ā Ā Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
Dimensions (WĀ xĀ LĀ xĀ H) ā—Ā Ā Access point (without mounting brackets): C9120I: 8.5 x 8.5 x 1.7ā€ (21.6 x 21.6 x 4.3 cm)
Input power requirements ā—Ā Ā 802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOEĀ Ā®)

ā—Ā Ā Cisco power injector, AIR-PWRINJ6=

ā—Ā Ā 802.3af PoE

ā—Ā Ā Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af)

Environmental Cisco Catalyst 9120AXI

ā—Ā Ā Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)

ā—Ā Ā Nonoperating (storage) altitude test: 25˚C, 15,000 ft.

ā—Ā Ā Operating temperature: 32° to 122°F (0° to 50°C)

ā—Ā Ā Operating humidity: 10% to 90% (noncondensing)

ā—Ā Ā Operating altitude test: 40˚C, 9843 ft.

System memory ā—Ā Ā 2048 MB DRAM

ā—Ā Ā 1024 MB flash

Available transmit power settings 2.4 GHz

ā—Ā Ā 23 dBm (200 mW)

ā—Ā Ā 20 dBm (100 mW)

ā—Ā Ā 17 dBm (50 mW)

ā—Ā Ā 14 dBm (25 mW)

ā—Ā Ā 11 dBm (12.5 mW)

ā—Ā Ā 8 dBm (6.25 mW)

ā—Ā Ā 5 dBm (3.13 mW)

ā—Ā Ā 2 dBm (1.56 mW)

ā—Ā Ā -1dBm (0.79mW)

ā—Ā Ā -4dBm(0.39mW)

5 GHz

ā—Ā Ā 26 dBm (400 mW)

ā—Ā Ā 23 dBm (200 mW)

ā—Ā Ā 20 dBm (100 mW)

ā—Ā Ā 17 dBm (50 mW)

ā—Ā Ā 14 dBm (25 mW)

ā—Ā Ā 11 dBm (12.5 mW)

ā—Ā Ā 8 dBm (6.25 mW)

ā—Ā Ā 5 dBm (3.13 mW)

ā—Ā Ā 2 dBm (1.56 mW)

ā—Ā Ā -1dBm (0.79mW)

Frequency band and 20-MHz operating channels Q (Q regulatory domain):

ā— 2.412 to 2.472 GHz; 13 channels
ā— 5.180 to 5.320 GHz; 8 channels
ā— 5.500 to 5.700 GHz; 11 channels
