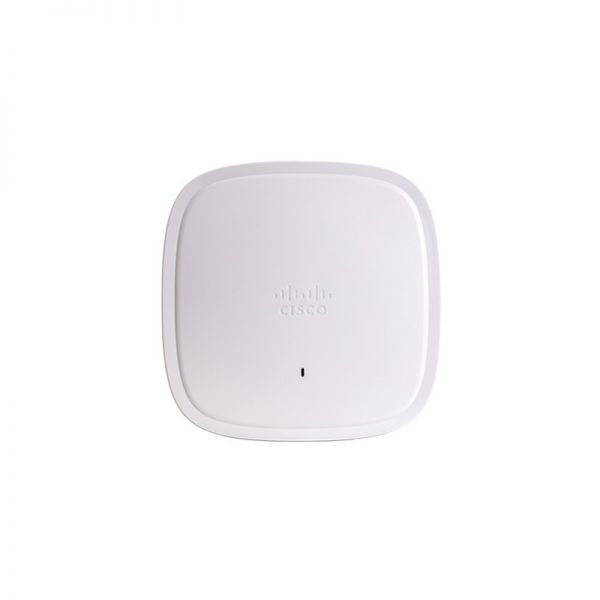

C9130AXI-H – Cisco Catalyst 9130 WiFi 6 Access Point

C9130AXI-H Specification

• Cisco Unified Wireless Network Software Release 8.10.x or later

• Cisco IOS ^® XE Software Release 16.12.1 with AP Device Pack, or later

• Cisco 3504, 5520, and 8540 Wireless Controllers and Cisco Virtual Wireless Controller

• Maximal Ratio Combining (MRC)

• 802.11n and 802.11a/g

• 20- and 40-MHz channels

• PHY data rates up to 1.5 Gbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)

• Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive)

• 802.11 Dynamic Frequency Selection (DFS)

• Cyclic Shift Diversity (CSD) support

• MRC

• 802.11ac beamforming

• 20-, 40-, 80-, and 160-MHz channels

• PHY data rates up to 6.9 Gbps (160 MHz with 5 GHz)

• Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)

• 802.11 DFS

• CSD support

• WPA3 support

• Uplink/downlink OFDMA

• TWT

• BSS coloring

• MRC

• 802.11ax beamforming

• 20-, 40-, 80-, and 160-MHz channels

• PHY data rates up to 10 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz)

• Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)

• 802.11 DFS

• CSD support

• WPA3 support

• 5 GHz: Peak gain 6 dBi, internal antenna, omnidirectional in azimuth

• Cisco offers the industry’s broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios

• Supports Self-Identifiable Antennas (SIA) on the Smart antenna connector

• Smart antenna connector is a compact multi-RF connector with 8-DART interface

• Requires the AIR-CAB002-D8-R= 2-fppt smart antenna connector when used with antennas with a RP-TNC connector

• Requires the AIR-CAB003-D8-N= 3 ft smart antenna connector when used with AIR-ANT2513P4M-N= antenna

• Management console port (RJ-45)

• USB 2.0 at 4.5W (enabled via future software)

– C9130AXI: 8.9 x 8.9 x 1.88 in. (22.6 x 22.6 x 4.8 cm)

• Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)

• Nonoperating (storage) altitude test: 25˚C, 15,000 ft (4600 m)

• Operating temperature: 32° to 122°F (0° to 50°C)

• Operating humidity: 10% to 90% (noncondensing)

• Operating altitude test: 40˚C, 9843 ft (3000 m)

Note: When the ambient operating temperature exceeds 40°C, the access point will shift from 8×8 to 4×4 on the 5 GHz radio, uplink Ethernet will downgrade to 1 Gigabit Ethernet; however, the USB interface will remain enabled.

• 1024 MB flash

• 23 dBm (200 mW)

• 20 dBm (100 mW)

• 17 dBm (50 mW)

• 14 dBm (25 mW)

• 11 dBm (12.5 mW)

• 8 dBm (6.25 mW)

• 5 dBm (3.13 mW)

• 2 dBm (1.56 mW)

• -1 dBm (0.79 mW)

• -4 dBm(0.39 mW)

5 GHz

• 26 dBm (400 mW)

• 23 dBm (200 mW)

• 20 dBm (100 mW)

• 17 dBm (50 mW)

• 14 dBm (25 mW)

• 11 dBm (12.5 mW)

• 8 dBm (6.25 mW)

• 5 dBm (3.13 mW)

• 2 dBm (1.56 mW)

• -1 dBm (0.79 mW)

• 802.11b/g:

– 20 MHz: 3

• 802.11n:

– 20 MHz: 3

• 802.11ax:

– 20 MHz: 3

5 GHz

• 802.11a:

– 20 MHz: 26 FCC, 16 EU

• 802.11n:

– 20 MHz: 26 FCC, 16 EU

– 40 MHz: 12 FCC, 7 EU

• 802.11ac/ax:

– 20 MHz: 26 FCC, 16 EU

– 40 MHz: 12 FCC, 7 EU

– 80 MHz: 5 FCC, 3 EU

– 160 MHz 2 FCC, 1 EU

Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.

– IEC 60950-1

– EN 60950-1

– UL 60950-1

– CAN/CSA-C22.2 No. 60950-1

– AS/NZS60950.1

– UL 2043

– Class III equipment

• Emissions:

– CISPR 32 (rev. 2015)

– EN 55032 (rev. 2012/AC:2013)

– EN 55032 (rev. 2015)

– EN61000-3-2 (rev. 2014)

– EN61000-3-3 (rev. 2013)

– KN61000-3-2

– KN61000-3-3

– AS/NZS CISPR 32 Class B (rev. 2015)

– 47 CFR FCC Part 15B

– ICES-003 (rev. 2016 Issue 6, Class B)

– VCCI-CISPR 32

– CNS (rev. 13438)

– KN-32

– QCVN 118:2018/BTTTT

• Immunity:

– CISPR 24 (rev. 2010)

– EN 55024 + AMD 1(rev. 2010)

– EN 55035: 2017

– KN35

• Emissions and immunity:

– EN 301 489-1 (v2.1.1 2017-02)

– EN 301 489-17 (v3.1.1 2017-02)

– QCVN (18:2014)

– QCVN 112:2017/BTTTT

– KN 489-1

– KN 489-17

– EN 60601-1-2:2015

– EN 61000-6-1: 2007

• Radio:

– EN 300 328 (v2.1.1)

– EN 301 893 (v2.1.1)

– AS/NZS 4268 (rev. 2017)

– 47 CFR FCC Part 15C, 15.247, 15.407

– RSP-100

– RSS-GEN

– RSS-247

– China regulations SRRC

– LP0002 (rev 2018.1.10)

– Japan Std. 33a, Std. 66, and Std. 71

• RF safety:

– EN 50385 (rev. Aug 2002)

– ARPANSA

– AS/NZS 2772 (rev. 2016)

– EN 62209-1 (rev. 2016)

– EN 62209-2 (rev. 2010)

– 47 CFR Part 1.1310 and 2.1091

– RSS-102

• IEEE standards:

– IEEE 802.3

– IEEE 802.3ab

– IEEE 802.3af/at

– IEEE 802.11a/b/g/n/ac/ax

– IEEE 802.11h, 802.11d

• Security:

– 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA3

– 802.1X

– Advanced Encryption Standard (AES)

• Extensible Authentication Protocol (EAP) types:

– EAP-Transport Layer Security (TLS)

– EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol (MSCHAP) v2

– Protected EAP (PEAP) v0 or EAP-MSCHAP v2

– EAP-Flexible Authentication via Secure Tunneling (EAP-FAST)

– PEAP v1 or EAP-Generic Token Card (GTC)

– EAP-Subscriber Identity Module (SIM)
