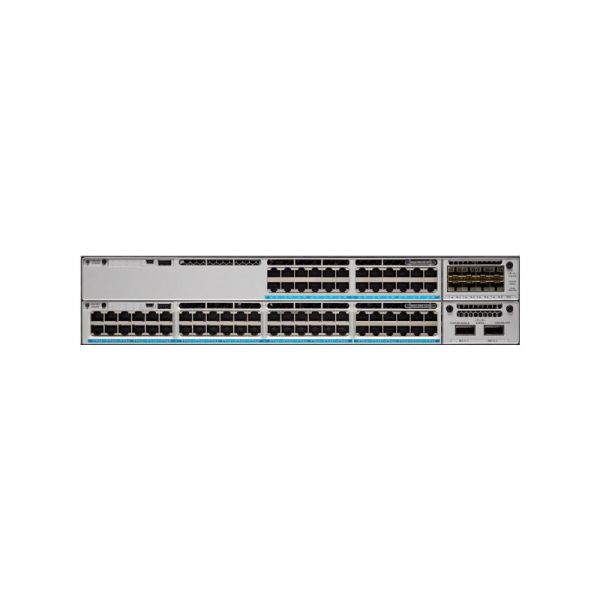

C9300-48H-A – Cisco Catalyst 9300 Switch
| Model: | C9300-48H-A – Cisco Catalyst 9300 Switch |
| Detail: |
Catalyst 9300 48-port UPoE+, Network Advantage
|
AED65,999.00
The Cisco Catalyst 9300 Series switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch. The Catalyst 9300 Series is designed for Cisco StackWise technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower, which delivers high-density Power over Ethernet Plus (PoE+), 60W Cisco Universal Power over Ethernet (Cisco UPOE) and 90W Cisco UPOE®+ ports.
Quick Specs
Table 1 shows the Quick Specs.
| Product Code | C9300-48H-A |
| Product Description | Catalyst 9300 48-port UPoE+, Network Advantage |
| Device Type | Switch – 48 ports – L3 – managed – stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (UPOE+) |
| RAM | 8 GB |
| Flash Memory | 16 GB |
| Interfaces | 48 x 1000Base-T RJ-45 UPOE+ | 1 x USB 2.0 |
C9300-48H-A Specification |
|
| Product Code | C9300-48H-A |
| Description | Catalyst 9300 48-port UPoE+, Network Advantage |
| General | |
| Device Type | Switch – 48 ports – L3 – managed – stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (UPOE+) |
| Power Over Ethernet (PoE) | UPOE+ |
| PoE Budget | 822 W |
| Performance | Switching capacity: 256 Gbps | Stacking bandwidth: 736 Gbps | Forwarding rate: 190.48 Mpps | Forwarding rate with stacking: 547.62 Mpps |
| Capacity | IPv4 routing table entries: 32000 | IPv6 routing table entries: 16000 | Flexible NetFlow entries: 64000 | VLAN IDs: 4000 | Switched virtual interfaces (SVIs): 2000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Encryption Algorithm | 128-bit AES |
| Features | DHCP support, trunking, Syslog support, full duplex mode, Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, Encapsulated Remote SPAN (ERSPAN), Security Group Tag (SGT) caching, Security Group Access Control List (SGACL), IT Service Management (ITSM) integration, third-party IP Address Management (IPAM) integration |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
| RAM | 8 GB |
| Flash Memory | 16 GB |
| Status Indicators | Status |
| Expansion / Connectivity | |
| Interfaces | 48 x 1000Base-T RJ-45 UPOE+ | 1 x USB 2.0 |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Power | |
| Power Device | Internal power supply – hot-plug |
| Installed Qty | 1 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Power Provided | 1100 Watt |
| Voltage Required | AC 120/230 V (50 – 60 Hz) |
| Miscellaneous | |
| MTBF | 227,410 hours |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1 |
| Software / System Requirements | |
| Software Included | Cisco Network Essentials |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 19.2 in |
| Height | 1.7 in |
| Manufacturer Warranty | |
| Service & Support | Limited warranty – replacement – lifetime – response time: next business day | Technical support – consulting – 90 days |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 – 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 – 90% (non-condensing) |
