Network Switches & Routers

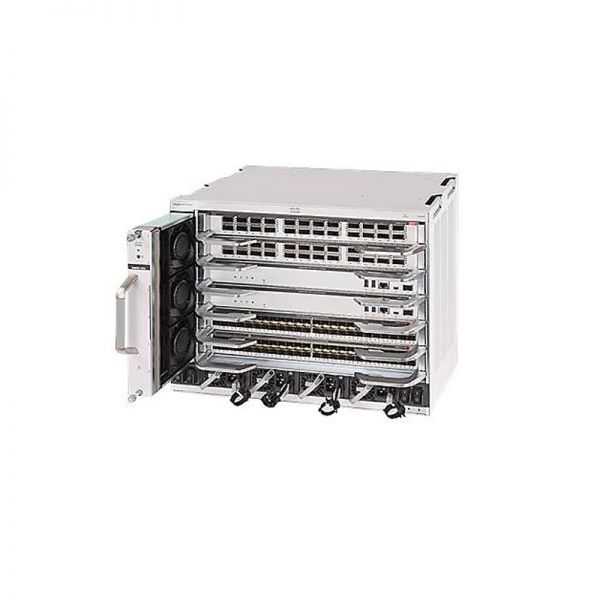

C9606R-48Y24C-BN-A – Cisco Switch Catalyst 9600
| Model: | C9606R-48Y24C-BN-A – Cisco Switch Catalyst 9600 |
| Detail: |
Catalyst 9600 Series 6 slot bundle,with 1xSup,2xLC,DNA-A LIC
|
AED568,199.00
Cisco Catalyst 9600 Series switches are purpose-built for resiliency at scale with the industry’s most comprehensive security and allows your business to grow at lowest total operational cost. Built upon the foundation of Catalyst 9000, the Catalyst 9600 Series offers scale and security when always on is a must.
Quick Specs
Table 1 shows the Quick Specs.
| Product Code | C9606R-48Y24C-BN-A |
| Product Description | Catalyst 9600 Series 6 slot, 1xSup, 2xLC , DNA-A LIC |
| Dimensions (H x W x D) | 35.43 x 44.2 x 40.9 cm
13.95 x 17.4 x 16.1 in. |
|
Rack Units (RU) |
8 |
|
Input voltage |
AC: 90V to 264V, 47 to 63 Hz AC DC: -40V to -72V |
Product Details
Cisco C9600 Series provide these highlights:
•Hardware ready to support up to 25.6 Tbps in wired switching capacity, with up to 6.4 Tbps bandwidth per slot.
•Up to 9.6 Tbps in wired switching capacity, with 3 Bpps of forwarding performance with the Cisco Catalyst 9600 Series Supervisor Engine 1.
•Up to 48 nonblocking 100 Gigabit Ethernet QSPF28 ports with the Cisco Catalyst 9600 Series Supervisor Engine 1.
•Up to 96 nonblocking 40 Gigabit Ethernet QSFP+ ports with the Cisco Catalyst 9600 Series Supervisor Engine 1.
•Up to 192 nonblocking 25 Gigabit/10 Gigabit Ethernet SFP28/SFP+ ports with the Cisco Catalyst 9600 Series Supervisor Engine 1.
•Platinum-rated AC and DC power supplies.
C9606R-48Y24C-BN-A Specification |
|
| Product Code | C9606R-48Y24C-BN-A |
| Product Description | Catalyst 9600 Series 6 slot, 1xSup, 2xLC , DNA-A LIC |
| Dimensions (H x W x D) | 35.43 x 44.2 x 40.9 cm
13.95 x 17.4 x 16.1 in. |
|
Rack Units (RU) |
8 |
|
Total number of slots |
6 |
|
Line-card slots |
4 |
|
Supervisor engine slots |
2 |
|
Dedicated supervisor engine slot numbers |
3 and 4 |
|
Supervisor engine redundancy |
Yes |
|
Supervisor engines supported |
C9600-SUP-1 |
|
Maximum bandwidth scalability per line-card slot |
6.4 Tbps** 2.4 Tbps*** |
|
Number of power supply bays |
4 |
|
Minimum number of power supplies |
2* |
|
Power supplies supported |
2000W AC, 2000W DC |
|
Number of fan-tray bays |
1 |
|
*Fully loaded 9606R chassis, Minimum 3 power supplies required if input voltage is 110V **Hardware ready ***With C9600-SUP-1 |
|
|
Input voltage |
AC: 90V to 264V, 47 to 63 Hz AC DC: -40V to -72V |
|
Operating temperature |
-5° to 45° C (23° to 113° F) up to 6000 feet -5° to 40° C (23° to 104° F) up to 10,000 feet |
|
Storage temperature |
-40° to 75° C (40° to 167° F) |
|
Relative humidity, operating and nonoperating, noncondensing |
10% to 95%, noncondensing |
|
Altitude |
-60 to 3000 m (-197 to 9843 feet) |
|
Mean Time Between Failures (MTBF) (hours) |
C9606R chassis: 4,113,900 C9606 fan tray: 452,570 |
|
Weight of fan tray |
3.56 kg(7.85 lb) |
|
Weight of individual PSUs |
AC PSU: 1.2 kg (2.65 lb) DC PSU: 1.28 kg (2.82 lb) |
|
Safety certifications |
C9606R •IEC 60950-1 plus Am1, Am2, Am9, Am10, Am11, Am12 and all deviations and differences •AS/NZS 60950.1.2011 •CAN/CSA-C22.2 No. 60950-1-07 •GB 4943-95 •EN 60950-1; 2006 plus Am1, Am 2, Am9, Am10, Am11, Am12 and all deviations and differences •NOM-019-SCFI-1998 •UL 60950-1, Second Edition |
|
EMI and EMC compliance |
47 CFR Part 15 Class A CNS13438: 2006 Class A EN 300 386 V1.6.1 EN61000-3-2: 2014 EN61000-3-3: 2013 ICES-003 Issue 6: 2016 Class A KN 32: 2015 Class A TCVN 7189: 2009 Class A EN 55032:2012/ AC:2013 Class A EN 55032:2015 Class A CISPR 32 Edition 2 Class A V-2/2015.04 Class A V-3/2015.04 Class A CISPR24: 2010 + A1: 2015 EN 300 386 V1.6.1 EN55024: 2010 + A1: 2015 KN35: 2015 TCVN 7317: 2003 |
