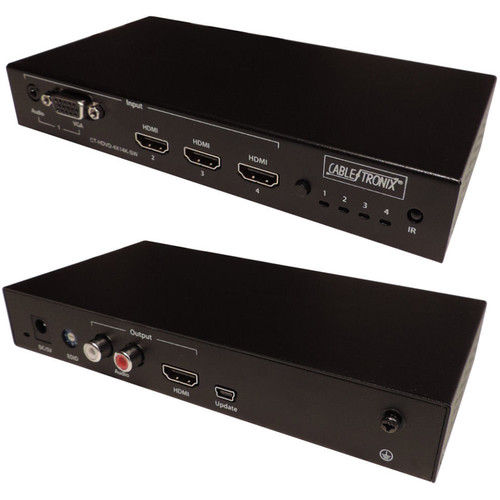

CableTronix CT-HDVD-4X14K-SW 4×1 High-Definition Switcher

Add to Wishlist

1,599.00 د.إ

Add to Wishlist

The CT-HDVD-4X14K-SW 4×1 High-Definition Switcher from CableTronix can be used for managing multiple audio and video sources. It provides three inputs for direct connection of HDMI devices. This switch features additional VGA and audio inputs. Analog audio inputs can be embedded in a HDMI signal, and a pair of RCA outputs enable extraction of audio for direct connection to amplifiers. You can also select your desired HDMI source for display on a HDTV. In addition, the switcher is suitable for use in digital entertainment centers, control centers, conference rooms, schools, and corporate training environments.

Supports 1 input (VGA + audio) and 3 HDMI inputs
Pair of RCA outputs for audio extraction
Supports 4K x 2K
Input Ports Priority: VGA > HDMI1 > HDMI2 > HDMI3
Supports HDMI and VGA inputs
HDMI 1.4 with 3D
HDCP compliant
EDID management
Firmware updates via mini-USB Type-B
SKU: CT-HDVD-4X14K-SW Category: Tag:
Video
Input
3 x HDMI, 1 x VGA
Output
1 x HDMI
Signal Type
Input:
HDMI: HDMI 1.4 with HDCP
VGA: RGBHV
Output:
HDMI: HDMI 1.4 with HDCP
Input/Output Resolutions
HDMI: 480i, 576i, 480p, 576p, 720p 50/60, 1080i 25/30, 1080p 24/30/50/60, 4K x 2K 30
VGA
640 x 480, 800 x 600, 1024 x 768, 1280 x 720, 1280 x 1024, 1920 x 1080, 1920 x 1200
Maximum Pixel Clock
297 MHz
Input Video Signal
0.5 to 1.5 V p-p
Video Impedance
100 Ohms
Audio
Input
1 x TRS 3.5 mm jack
Output
2 x RCA
Signal Type
Input/Output: Stereo
Input Impedance
>10 kOhms
Output Impedance
75 Ohms
General
Power Supply
5 VDC, 2 A
Power Consumption
6 W maximum
Control Method
Front panel
System Requirements
HDMI/DVI source devices (connect with HDMI cables)
VGA source devices (connect with VGA cables)
HDMI displays (TVs or monitors) or HDMI equipped AV receivers (connect with HDMI cables)
Industry standard HDMI, VGA, and analog audio cables
Operating Temperature & Humidity
32 to 95°F (0 to 35°C)
10 to 90%, non-condensing
Storage Temperature & Humidity
-4 to 140°F (-20 to 70°C)
10 to 90%, non-condensing
ESD Protection
±8 kV (air-gap discharge) / ±4 kV (contact discharge)
Certifications
CE, FCC, RoHS
Dimensions
7.09 x 1.1 x 3.54″ (180 x 28 x 90 mm)
Weight
1.06 lb (0.48 kg)
