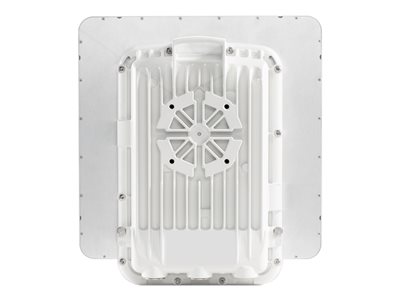

Cambium Networks PTP 670 – Integrated Outdoor Unit (ODU) – wireless bridge – with AC+DC Power Injector

Add to Wishlist

Tech overview

Cambium Networks PTP 670 – Integrated Outdoor Unit (ODU) – wireless bridge – GigE, TDM – with AC+DC Power Injector

AED18,199.00

Add to Wishlist

Cambium Networks combines spectral efficiency and reliability with high-capacity multipoint (HCMP) deployment flexibility. With up to 450 Mbps aggregate throughput, PTP 670 systems let you flexibly, reliably and securely handle today’s needs.

SKU: C050067H004C Category: Tag:
Specifications
General
Device Type Wireless bridge
Ruggedized Design Outdoor
Width 12 in
Depth 3.2 in
Height 12 in
Weight 9.04 lbs
Bundled with AC+DC Power Injector
Networking
Form Factor External
Connectivity Technology Wireless
Line Rate T-1/E-1
Data Transfer Rate 450 Mbps
Line Coding Format 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM
Framing Format G.823
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, TDM
Network/Transport Protocol IPv4, IPv6
Remote Management Protocol SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS
Max Range Open Space 155 miles
Performance
Bandwidth per Channel 45 Mbps
Capacity Remote modules master nodes: 8
Features
Power over Ethernet (PoE) MPLS support, Syslog support, manageable, IPv6 support, MIMO technology, Quality of Service (QoS), IPv4 support, Management Information Base (MIB) II, Jumbo Frames support (up to 9600 bytes), Time Division Duplex (TDD), spectrum analyzer
Encryption Algorithm TLS, 128-bit AES, 256-bit AES, FIPS 197
Authentication Method RADIUS
Compliant Standards IEEE 802.3, IEEE 802.1p, IEEE 802.3at, IEEE 1588v2
Antenna
Antenna Internal
Gain Level 23 dBi
Expansion/Connectivity
Interfaces 1 x 1000Base-T (PoE) – RJ-45, 1 x network – SFP (mini-GBIC), 1 x 1000Base-T (auxiliary) – RJ-45
Miscellaneous
Included Accessories Mounting bracket
Compliant Standards ETSI, EN55022, CISPR 22, CB, FCC Part 15 B, FCC Part 15 C, UL 60950-1, IEC 60950-1, FCC Part 15 E, ATEX Directive, IP66, EN 301 489, WEEE 2002/96/EC, RSS-210 Issue 8, EN 301 489.4, EN 301 489-1, EN 301 893, IEEE 1588v2
Power
Power Over Ethernet (PoE) Supported PoE
Power Device Power injector
Voltage Required AC 90-240 V (50/60 Hz)
Power Consumption Operational 70 Watt
Environmental Parameters
Min Operating Temperature -40 °F
Max Operating Temperature 168.8 °F
