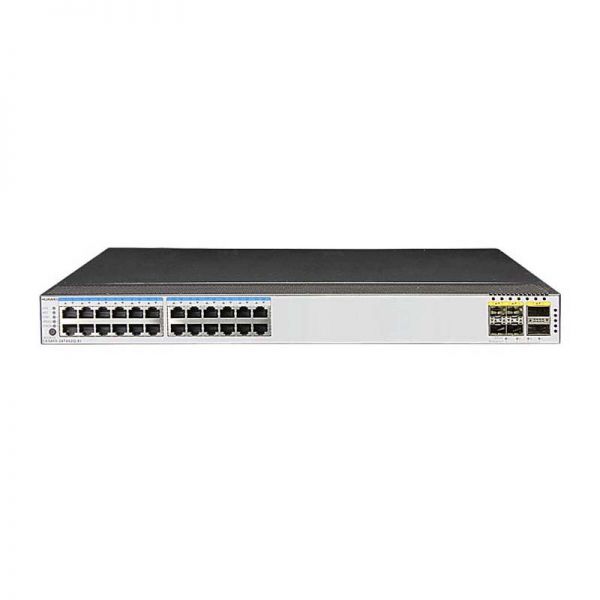

CE5810-EI-B-B01 Huawei CE5800 Series Data Center Switch
| Model: | CE5810-EI-B-B01 Huawei CE5800 Series Data Center Switch |
| Detail: |
CE5810-24T4S-EI Switch (2*AC Power Module,2*FAN Box,Port-side Intake)
|
12,199.00 د.إ
CE5810-EI-B-B01 is CE5810-24T4S-EI Switch (2*AC Power Module,2*FAN Box,Port-side Intake).
Quick Specs
Table 1 shows the Quick Specs.
| Product Code | CE5810-EI-B-B01 |
| Part Number | 02350EYN |
| Software Version | V100R002C00 and later |
| Base-T Ports | 24 |
| SFP+ Ports | 4 |
| QSFP+ Ports | 0 |
| Switching Capacity | 128 Gbit/s |
| Forwarding Rate | 96 Mpps |
| Power module type | 2*AC Power Module |
| Fan | 2*FAN Box |
| Rated voltage range(with power module) | 100 V AC to 240 V AC, 50/60 Hz
-48 V DC to -60 V DC |
| Maximum power consumption | 68 W |
| Fan type | Pluggable fan module |
| Airflow Design | Front-to-back or back-to-front |
| Typic Power(W) | 58 |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Weight (fully loaded) | 8 kg (17.6 lb) |
Product Details
Note:
| ā | Twenty-four 10/100/1000BASE-T Ethernet electrical ports |
| ā” | Four 10GE SFP+ Ethernet optical ports |
Note:
| ā | Power supply slot 1 |
| ā” | Fan slot 1 |
| ā¢ | Console port |
| ā£ | ETH management port |
| ā¤ | Bar code label |
| ā„ | USB port |
| ā¦ | Fan slot 2 |
| ā§ | Power supply slot 2 |
CE5810-EI-B-B01 Specification |
|
| Base-T Ports | Ā 24 |
| SFP+ Ports | Ā 4 |
| QSFP+ Ports | Ā – |
| Switching Capacity | 128 Gbit/s |
| Forwarding Rates | 96 Mpps |
| Airflow Design | Front-to-back or back-to-front |
| Device Virtualization | iStack |
| Super Virtual Fabric (SVF) | |
| Network Virtualization | M-LAG |
| TRILL (CE5855 & CE5850) | |
| VM Awareness | Agile Controller |
| SDN | Open Programmability System (OPS) |
| Traffic Analysis | NetStream |
| sFlow | |
| VLAN | Adding access, trunk, and hybrid interfaces to VLANs |
| Default VLAN | |
| QinQ | |
| MUX VLAN | |
| GVRP | |
| ACL | ingress: 2.25k egress: 512 |
| MAC Address Table | maximum: 32k |
| Dynamic learning and aging of MAC addresses | |
| Static, dynamic, and black hole MAC address entries | |
| Packet filtering based on source MAC addresses | |
| MAC address limiting based on ports and VLANs | |
| ARP (maximum) | 8k |
| IPv4 FIB (maximum) | 12k |
| IP Routing | IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS |
| IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+Ā (not supported by CE5855) | |
| IPv6 FIB (maximum) | 6k |
| IPv6 | IPv6 Neighbor Discovery (ND)Ā (not supported by CE5855) |
| Path MTU Discovery (PMTU)Ā (not supported by CE5855) | |
| TCP6, ping IPv6, tracert IPv6, socket IPv6, UDP6, and Raw IP6 | |
| Multicast FIB (maximum) | 8k |
| Multicast | IGMP, PIM-SM, PIM-DM, MSDP, and MBGP |
| IGMP snooping | |
| IGMP proxy | |
| Fast leave of multicast member interfaces | |
| Multicast traffic suppression | |
| Multicast VLAN | |
| Reliability | LACP |
| STP, RSTP, VBST, MSTP | |
| BPDU protection, root protection, and loop protection | |
| Smart Link and multi-instance | |
| DLDP | |
| ERPS (G.8032) | |
| VRRP, VRRP load balancing, and BFD for VRRP | |
| BFD for BGP/IS-IS/OSPF/Static route | |
| QoS | Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority |
| Actions of ACL, CAR, re-marking, and scheduling | |
| Queue scheduling algorithms, including PQ, WRR, DRR, PQ + WRR, and PQ + DRR | |
| Congestion avoidance mechanisms, including WRED and tail drop | |
| Traffic shaping | |
| Configuration and Maintenance | Console, Telnet, and SSH terminals |
| Network management protocols, such as SNMPv1/v2c/v3 | |
| File upload and download through FTP and TFTP | |
| BootROM upgrade and remote upgrade | |
| 802.3az Energy Efficient Ethernet (EEE) | |
| Hot patches | |
| User operation logs | |
| Zero-Touch Provisioning (ZTP) | |
| Security and Management | 802.1x authentication |
| Command line authority control based on user levels, preventing unauthorized users from using commands | |
| DoS, ARP, and ICMP attack defenses | |
| Port isolation, port security, and sticky MAC | |
| Binding of the IP address, MAC address, interface number, and VLAN ID | |
| Authentication methods, including AAA, RADIUS, and HWTACACS | |
| Remote Network Monitoring (RMON) | |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Weight (fully loaded) | 8 kg (17.6 lb) |
| Environmental Parameters | Operating temperature: 0Ā°C to 40Ā°C (32Ā°F to 104Ā°F) (0m to 1,800m) |
| Storage temperature: -40Ā°C to 70Ā°C (-40Ā°F to 158Ā°F) | |
| Relative humidity: 5%Ā to 95%, non-condensing | |
| Operating Voltage | Ā AC: 90V to 290V |
| DC: -38.4V to -72V | |
| Maximum Power Consumption | 68W |
