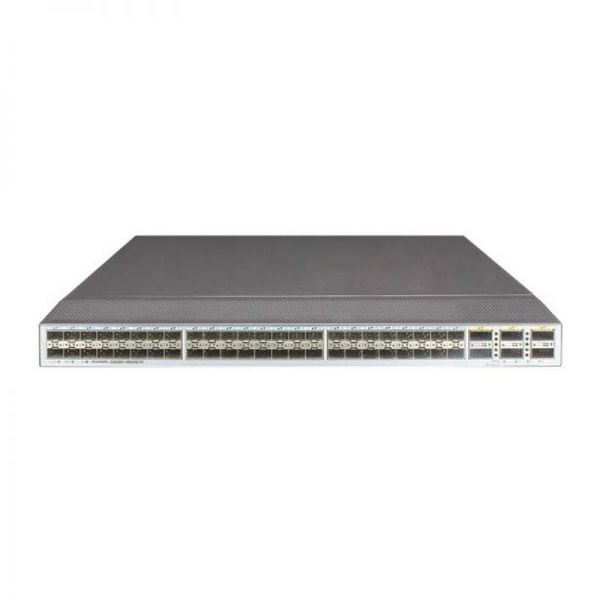

CE6857F-48S6CQ-B – Huawei Data Center Switches CE 6800 Series

Add to Wishlist
Model: CE6857F-48S6CQ-B – Huawei Data Center Switches CE 6800 Series
Detail:
Huawei CE6857F-48S6CQ switch (48 * 10Ge SFP +, 6 * 100GE QSFP28, 2 * AC power supply, 4 * fan box, port side air supply).

AED181,599.00

Add to Wishlist

Huawei CE6857F-48S6CQ switch (48 * 10Ge SFP +, 6 * 100GE QSFP28, 2 * AC power supply, 4 * fan box, port side air supply).

CloudEngine 6800 series switches are next-generation switches designed for data center and high-end campus networks, with high performance, high interface density, and low latency. They boast an advanced hardware design with high-density 10 GE/25 GE access interfaces, 40 GE/100 GE uplink interfaces, advanced data center features, high-performance stacking technologies, and flexible airflow capabilities.

Quick Spec

Table 1 shows the quick spec.

Model CE6857F-48S6CQ-B
Installation Type Cabinet Installation
CPU 4-core, 1.4GHz
Memory DRAM: 4 GB
NOR Flash 64MB
USB Supported
Console port RJ45
Downlink Service interface 48*10GE SFP+ (Note: The 10GE LRM/80KM linear optical module and 1000base-X auto-negotiation are not supported. 1GE optical modules can be used for interconnection only when auto-negotiation is disabled on the peer port.)
Uplink Service interface 6*100GE QSFP28 (Note: 1. 100GE interfaces are compatible with 40GE; 2. 100GE interfaces do not support splitting into 4x25GE and 4x10GE.)
Service port supporting the stack function 10GE optical ports and 100GE optical ports
RTC Supported
SKU: CE6857F-48S6CQ-B Category: Tags: ,
CE6857F-48S6CQ-B Specification
Model CE6857F-48S6CQ-B
Installation Type Cabinet Installation
CPU 4-core, 1.4GHz
Memory DRAM: 4 GB
NOR Flash 64MB
USB Supported
Console port RJ45
Downlink Service interface 48*10GE SFP+ (Note: The 10GE LRM/80KM linear optical module and 1000base-X auto-negotiation are not supported. 1GE optical modules can be used for interconnection only when auto-negotiation is disabled on the peer port.)
Uplink Service interface 6*100GE QSFP28 (Note: 1. 100GE interfaces are compatible with 40GE; 2. 100GE interfaces do not support splitting into 4x25GE and 4x10GE.)
Service port supporting the stack function 10GE optical ports and 100GE optical ports
RTC Supported
