Celestron LCD Digital Microscope II 44341

Availability:

10 in stock


AED899.00

10 in stock

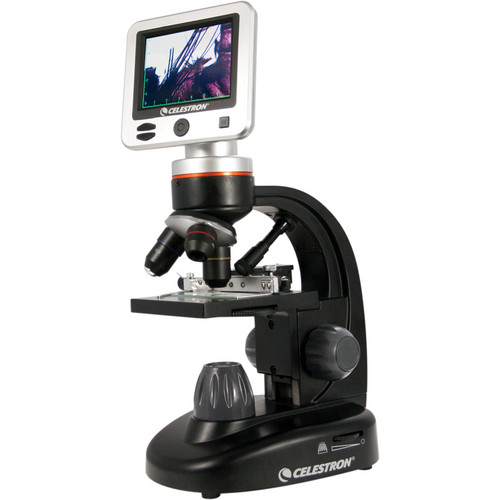

CelestronĀ 44341 LCD Digital Microscope II



Product Highlights

  • 5.0MP CMOS Sensor
  • 180° Rotating Head
  • 3.5″ TFT LCD Color Display
  • Captures Images and 30 fps Videos
  • Top/Bottom LED Illumination
  • 4x/10x/40x Achromatic Objectives
  • 40x/100x/400x Magnification/4x Digital
  • Metal Frame/Mechanical Stage/Two Clips
  • Disc Diaphragm with Color Filters



Built around its 5.0MP CMOS sensor,Ā Celestron’s 44341 LCD Digital Microscope IIĀ is capable of capturing high-resolution color images and videos at 30 fps. You can view them on the built-in 3.5″ color LCD display with an effective magnification of up to 400x or (with additional 4x digital zoom) on an external monitor with magnifying power of up 1600x. Also noteworthy is the 3.5 x 3.5″ mechanical stage. The stage features a full X-Y motion control using two precision Vernier micrometers and offers a metal bracket for holding your specimens. To make saving your findings a seamless experience, the LCD module offers an easy-to-use control panel, a 32GB microSD memory slot, and a mini-USB data port. To provide vivid and crisp images, the optics feature achromatic objectives and bright 8-LED illumination system with adjustable brightness. In addition to digital output, this scope features an AV video out port.

Its construction features an arched frame to serve as a carry handle and a 4 x AA battery compartment for cordless operation in the field. Using four alkaline AA batteries will allow you 3 hours of uninterrupted, cordless operation.

Digital Sensor, Display, and Illumination
  • 5.0MP CMOS sensor
  • Captures images and 30 fps videos
  • Effective magnifying power: 10x
  • 3.5″ TFT LCD color display
  • 320 x 240 display resolution
  • Onscreen 4x digital zoom
  • 32GB external memory card slot
  • Top and bottom LED illumination with adjustable brightness
  • 0.65NA bottom condenser lens
  • Power: AC adapter or 4 x AA batteries
Optical System
  • 4x, 10x, 40x achromatic objectives
  • 40x, 100x, 400x magnification
  • 160x, 400x, 1600x total magnification with 4x digital zoom
  • Single motion coarse focusing
Mechanical Stage
  • 3.5 x 3.5″ mechanical metal stage
  • X-Y Vernier precision motion controls
  • 6-position filter wheel
  • Filters: red, blue, and green
  • Aperture diaphragms: 1mm, 3mm, and 6mm
Construction Details
  • Metal frame
  • 180° display module rotation
  • 3-hole click-stop objective turret
  • Arched back serves as a carry handle
  • Constructed for cordless operation
  • Battery compartment for four AA batteries
  • Dust cover and carry case included
SKU: 44341 Category: Tags: , ,

Celestron 44341 Specs

Imaging
Optical Magnification 40x, 100x, 400x
Digital Magnification 160x, 400x, 1600x
Objective 4x, 10x, 40x
Max Resolution 5 MP
Sensor CMOS
Focusing Coarse
Illumination
Illumination Type LED
Condenser 0.65 Numerical Aperture (NA)
Connectivity/System Requirements
Wired Connectivity USB 2.0
Memory Card Type SDHC (Up to 32Ā GB)
General
Battery 4 xĀ AA (3-Hour Runtime)
Power 120 to 240 VAC, 50 / 60 Hz
Display Yes, 3.5″ / 89Ā mmĀ Color
Dimensions L: 6.7 x W: 5.5 x H: 13.0″ / L: 170.0 x W: 140.0 x H: 330.0Ā mm (Microscope)
L: 3.5 x W: 3.5″ / L: 88.0 x W: 88.0Ā mm (Specimen Stage)
Weight 56Ā oz / 1.6Ā kg
Packaging Info
Package Weight 7.05 lb
Box Dimensions (LxWxH) 16.0 x 9.3 x 7.5″
