Christie DWU1075-GS 10,875-Lumen WUXGA 1DLP Laser Phosphor Projector with BoldColor Technology (No Lens)

Add to Wishlist

98,499.00 د.إ

Add to Wishlist

Christie DWU1075-GS Overview

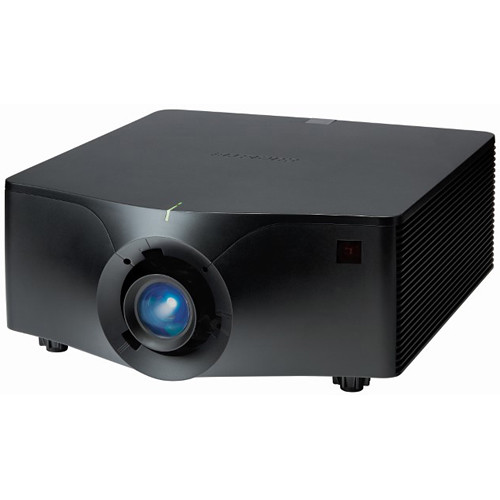

The black DWU1075-GS 10,875-Lumen WUXGA 1DLP Laser Phosphor Projector from Christie features laser phosphor illumination that eliminates the need for lamp and filter replacements and provides up to 20,000 hours of Illumination life. It uses Christie BoldColor Technology for accurate color reproduction. It offers a maximum resolution of 1920 x 1200 with a brightness level of 10,875 lumens. In addition, the projector is suitable for use in live events, corporate, houses of worship and smaller location-based entertainment venues.

Performance
  • Solid state laser phosphor illumination combined with Christie BoldColor Technology for accurate color reproduction
  • Advanced processing
  • 162 MHz pixel clock
  • Built-in color matching, constant intensity, and advanced warping and blending
  • Compact and lightweight for easy transportation and handling
  • Capable of 360° rotation and functions in portrait mode
  • DVI, two HDMI inputs, and one HDMI loop out
  • Accepts analog inputs via an HD15 connection for fixed installs and live events
  • Features a 3G-SDI loop through input for rental stagers
  • Horizontal and vertical scaling while maintaining aspect ratio on all inputs
  • Quiet operation
  • Automated camera-based stacking, warping, and blending capability allows for quick setup
  • Up to 20,000-hour life (with 50% brightness)
3D Inputs
  • HDMI 1.4, HDBaseT—frame packed, top/bottom, side by side
  • Up to 120 Hz 3D output
  • 3D Sync in (BNC) connector for genlocking projectors
  • 3D Sync out (BNC) connector for genlocking projectors or controlling emitter or polarizer
Networking
  • RS-232 in
  • Control via HDBaseT
  • Ethernet (10/100) RJ45 connections are fully compatible with the rugged and lockable EtherCon
  • Built-in backlit keypad
  • Wired remote control (3.5mm stereo)
  • Loop out available for daisy chaining
Lens Mount
  • Boresight adjustable
  • Motorized horizontal and vertical lens offset
  • Motorized zoom and focus adjustment
Regulatory
  • UL/CSA/IEC 60950-1
  • FCC Class A, CE, FDA, CCC, KC, PSE, CU, SABS, BIS, VCCI, RCM, Ukr, TER, SASO
  • RoHS, REACH, and WEEE
SKU: 140-041106-01 1 Category: Tag:
Display System
1-Chip 0.67″ DMD DLP
Native Resolution
1920 x 1200
Maximum Brightness
White: 9500 Lumens
Color: 9500 Lumens
HDR Support
No,
Inputs/Outputs
1x BNC (3G-SDI) Audio Output
1x HDMI Video Output
1x BNC (3G-SDI) Audio Input
1x DVI-D Video Input
1x DE-15/DB-15 (VGA) Video Input
1x HDMI 1.4 Video Input
1x USB-A Data Input
1x Micro-USB Data Input
1x DE-9/DB-9 (RS-232) LAN Input
1x RJ45 (HDBaseT) Control Input
1x RJ45 Data Input
1x Mini-HDMI Video Input
1x BNC Control Input
1x BNC Control Input
1x 1/8″ / 3.5 mm Mini Remote Input
1x 1/8″ / 3.5 mm Mini Remote Input
Light Source
Laser Phosphor
Image Display
Display System
1-Chip 0.67″ DMD DLP
Native Resolution
1920 x 1200
Supported Resolutions
1920 x 1200
Maximum Brightness
White: 9500 Lumens
Color: 9500 Lumens
Offset
100% ± vertical
30% ± horizontal
Aspect Ratio
Native: 16:10
Color Wheel
4-Segment (R/G/B/Y)
Scan
Horizontal: 15 to 9 kHz
Vertical: 24 to 85 Hz
Includes Lens
No
Features
HDR Support
No,
Multi-Input Support (PIP/PBP)
No
Projection Tilt Option
No
Input/Output Connectors
Inputs/Outputs
1x BNC (3G-SDI) Audio Output
1x HDMI Video Output
1x BNC (3G-SDI) Audio Input
1x DVI-D Video Input
1x DE-15/DB-15 (VGA) Video Input
1x HDMI 1.4 Video Input
1x USB-A Data Input
1x Micro-USB Data Input
1x DE-9/DB-9 (RS-232) LAN Input
1x RJ45 (HDBaseT) Control Input
1x RJ45 Data Input
1x Mini-HDMI Video Input
1x BNC Control Input
1x BNC Control Input
1x 1/8″ / 3.5 mm Mini Remote Input
1x 1/8″ / 3.5 mm Mini Remote Input
Hardware
Wireless LAN / Wi-Fi
No
Bluetooth
No
General
Light Source
Laser Phosphor
Expected Lamp Life
Full Brightness: 20,000 Hours
Fan Noise
Medium Brightness: 35 dB
Security
No
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
Medium Brightness: 1070 W
Dimensions (W x H x D)
19.9 x 22.2 x 7.6″ / 50.5 x 56.4 x 19.3 cm
Packaging Info
Package Weight
71.45 lb
Box Dimensions (LxWxH)
30 x 23.8 x 14.8″
