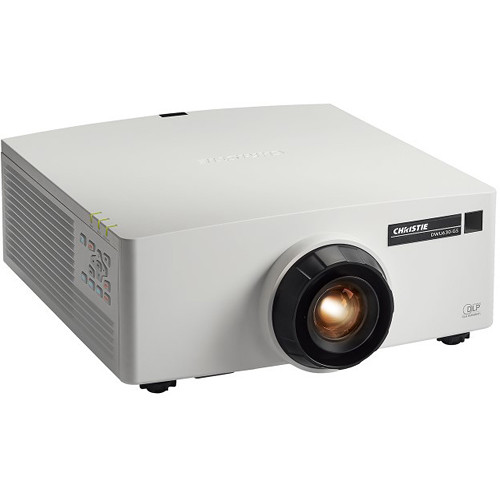

Christie DWU630-GS 6750-Lumen WUXGA 1DLP Laser Phosphor Projector (No Lens)

Add to Wishlist

35,199.00 د.إ

Add to Wishlist

The white DWU630-GS 1DLP Laser Phosphor Projector from Christie features laser phosphor diodes that produce 6750 ISO lumens of light output and provide up to 20,000 hours of illumination life. The projector offers a native resolution of 1920 x 1200 and a 1200:1 contrast ratio. With the Christie RealBlack technology, the projector can produce a 4,000,000:1 full on/off contrast ratio.

Performance
  • 1DLP technology for improved image quality
  • Phosphor laser diodes for 6750 ISO lumens of light output
  • Christie’s RealBlack technology produces 4,000,000:1 full on/off contrast ratio
  • 162 MHz pixel clock
  • Supports HDTV input formats—VGA through to WUXGA (1920 x 1200)
  • Horizontal and vertical scaling while maintaining aspect ratio across all inputs
  • 3.5mm stereo female remote connector for serial communications and power
  • RJ45 connector to control over wired network connection
  • Compatible with all GS Series lenses (lens available separately)
  • Noise rating of 36 dBA allows for quiet operation
  • Compact and light
  • 24/7 operation
3D Inputs
  • HDMI 1.4, HDBaseT—frame packed, top/bottom, and side by side, up to 120 Hz output
  • Does not support frame sequential 3D inputs
  • 3D Sync out (BNC) connector for genlocking projectors or controlling emitter or polarizer
Control & Networking
  • Control via HDBaseT, RS232 in, and IR remote
  • Ethernet (10/100) RJ45 connection
  • Built-in backlit keypad
  • Wired remote control (3.5mm stereo)
  • Loop out available for daisy chaining
Lens Mount
  • Boresight adjustable mount
  • Motorized horizontal (±15%) and vertical (±50%) lens offset
  • Motorized zoom and focus adjustment
Regulatory
  • UL/CSA/IEC 60950-1
  • FCC Class A, CE, FDA, CCC, KC, PSE, CU, SABS, BIS, VCCI, RCM, Ukr, TER, SASO
  • RoHS, REACH, and WEEE
SKU: 171-002103-02 Category: Tag:
Display System
1-Chip 0.65″ DMD DLP
Native Resolution
1920 x 1200
Maximum Brightness
White: 6000 Lumens
Color: 6000 Lumens
HDR Support
No,
Inputs/Outputs
1x RJ45 (HDBaseT) Control
2x HDMI Video
1x DVI-D Video
1x DE-15/DB-15 (VGA) Video Input
1x DE-15/DB-15 (VGA) Video Output
1x BNC (VESA 3D Sync) Video Output
1x 1/8″ / 3.5 mm Mini Remote Input
1x RJ45 LAN
1x DE-9/DB-9 (RS-232) Control
Light Source
Laser Phosphor
Image Display
Display System
1-Chip 0.65″ DMD DLP
Native Resolution
1920 x 1200
Supported Resolutions
Minimum: 640 x 640
Maximum: 1920 x 1200
Maximum Brightness
White: 6000 Lumens
Color: 6000 Lumens
Aspect Ratio
Native: 16:10
Dynamic Contrast Ratio
6000:1
Color Wheel
4-Segment (R/G/B/Y)
Scan
Horizontal: 15 to 9 kHz
Vertical: 24 to 120 Hz
Includes Lens
No
Features
Keystone Correction
No
HDR Support
No,
Multi-Input Support (PIP/PBP)
No
Built-In Speaker
No
Projection Tilt Option
No
Input/Output Connectors
Inputs/Outputs
1x RJ45 (HDBaseT) Control
2x HDMI Video
1x DVI-D Video
1x DE-15/DB-15 (VGA) Video Input
1x DE-15/DB-15 (VGA) Video Output
1x BNC (VESA 3D Sync) Video Output
1x 1/8″ / 3.5 mm Mini Remote Input
1x RJ45 LAN
1x DE-9/DB-9 (RS-232) Control
Media/Memory Card Slot
No
Hardware
Mobile App Compatible
No
Wireless LAN / Wi-Fi
No
Bluetooth
No
General
Light Source
Laser Phosphor
Expected Lamp Life
Full Brightness: 20,000 Hours
Fan Noise
Medium Brightness: 36 dB
Security
No
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
Medium Brightness: 650 W
Certifications
CSA, UL, IEC/EN, FCC, CE, CCC, KC, PSE, EAC, BIS, VCCI, RCM
Operating Temperature
32 to 86°F / 0 to 30°C
Operating Humidity
0 to 85%
Dimensions (W x H x D)
19.9 x 17.9 x 7.6″ / 50.5 x 45.5 x 19.3 cm
Weight
39.94 lb / 18.12 kg
Packaging Info
Package Weight
48.8 lb
Box Dimensions (LxWxH)
24.5 x 23.5 x 13.5″
