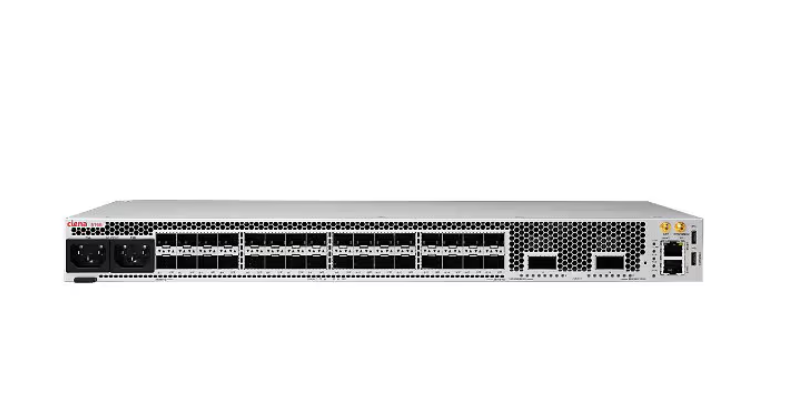

Ciena 5166 – router – rack-mountable

Add to Wishlist

Quick tech specs

  • Router 100GbE, 25GbE, 200GbE, 400GbE
  • rack-mountable

68,699.00 د.إ

Add to Wishlist

Know your gear

Ciena’s 5166 Router is purpose-built for 5G networks that converge 4G/5G fronthaul, midhaul, and backhaul (xHaul) networks onto a common, simpler infrastructure. With dense 1/10/25GbE to 100/200/400GbE aggregation and support for both hard network slicing (FlexEthernet) and soft network slicing (Segment Routing), the 5166 is the ideal platform to simplify and de-risk the unique 4G to 5G journeys of mobile and wholesale operators.
SKU: 170-5166-901 Category: Tag:
Category Specification
Overview
Brand Ciena
Product Line Ciena
Model 5166
Manufacturer Ciena
Network & Communication
Compliant Standards IEEE 1588v2, IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3-2018, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3ba, IEEE 802.3bs, IEEE 802.3by, IEEE 802.3z, ITU-T G.703, ITU-T G.8262, ITU-T G.8264, ITU-T G.8275.1, ITU-T G.8275.2, ITU-T Y.1564, ITU-T Y.1731
Connectivity Technology Wired
Data Link Protocols 10 Gigabit Ethernet, 100 Gigabit Ethernet, 200 Gigabit Ethernet, 25 Gigabit Ethernet, 400 Gigabit Ethernet, Gigabit Ethernet
Features Access Control List (ACL) support, Authentication, Authorization and Accounting (AAA), Border Gateway Protocol (BGP), Built-in GNSS receiver, Class of Service (CoS), DHCP support, Ethernet Virtual Connections (EVC), EVPN Virtual Private Wire Service (VPWS), Hierarchical Virtual Private LAN Service (H-VPLS), IP-routing, IPv4 support, Label Distribution Protocol (LDP), LACP support, Layer 2 switching, Layer 2 VPN (L2VPN) support, Layer 3 switching, Link Aggregation Control Protocol (LACP), Link Aggregation Group (LAG), LLDP support, MPLS support, NTP support, Q-in-Q tunneling, Quality of Service (QoS), Secure Zero-touch provisioning (SZTP), Software Defined Networking (SDN), Static label-switched paths (LSPs), Switching, Syslog support, Topology Independent Loop-Free Alternate (TI-LFA), Virtual Private LAN Service (VPLS), VLAN support
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 9216 bytes
Key Features USB port, VPN support
Network Standard DHCP, DHCPv6, IPv4, IPv6, NTP, SFTP
Product Type Router
Remote Management NTP, OAM, SFTP, SNMP 2
Routing Protocol BGP, BGP-4, IS-IS, MPLS, Multiprotocol BGP, OSPF
Connectivity
Interface Provided 2 x 100Gb Ethernet / 200Gb Ethernet / 400Gb Ethernet – QSFP-DD, 32 x 1Gb Ethernet / 10Gb Ethernet / 25Gb Ethernet, Antenna: 1 x, Console: 1 x 24 pin USB-C, Management: 1 x RJ-45, Synchronization: 1 x RJ-45, USB: 1 x 24 pin USB-C
Power
Power Supplies Installed 2
Power Supplies Supported 2
Required Voltage AC 100-240 volt
Technical Information
Max Operating Temperature 149 degree Fahrenheit
Min Operating Temperature -40 degree Fahrenheit
Product Information
Authentication Method RADIUS, Secure Shell v.2 (SSH2), TACACS+
Device Type Internal power supply
Packaged Quantity 1
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 11.46 lbs
Width 17.4 inch
Depth 10 inch
Physical Characteristics
Color Category Gray
Certifications & Listings
Compliant Standards CISPR 24, CISPR 32 Class A, CISPR 35, EN 300 386, EN 301 489-1, EN 301 489-19, EN 303 413, EN 55032, EN 55035, ETSI EN 300 132-2, ETSI EN 300 132-3, FCC Part 15 B Class A, GR-1089, Issue 6, GR-63-CORE, Issue 5, ICES-003 Class A, ITU-T G.703, ITU-T G.8262, ITU-T G.8264, ITU-T G.8273.2 Class C, ITU-T G.8275.1, ITU-T G.8275.2, NEBS, VCCI Class A
ENERGY STAR Certified No
EPEAT Compliant No
TCO Certified No
