Network Adapters

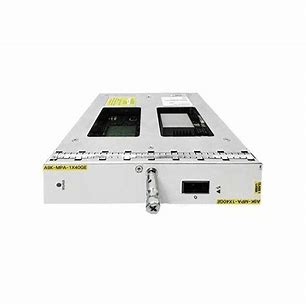

Cisco 1-port 40-Gigabit Ethernet Modular Port Adapter – expansion module
Cisco 1-port 40-Gigabit Ethernet Modular Port Adapter – Expansion module – 40 Gigabit LAN – for ASR 9001, 9006, 9006 with PEM Version 2, 9010, 9010 with PEM Version 2
AED222,599.00
The Cisco® ASR 9000 Series modular line cards provide customers with a flexible solution supporting multiple combinations of Ethernet ports, all in a single slot of the Cisco ASR 9000 Series Aggregation Services Routers. Modular line cards support a wide range of interfaces and densities offering the benefits of network scalability with lower initial costs and ease of upgrades. The Cisco ASR 9000 modular line cards and modular port adapter portfolio continues the Cisco focus on investment protection along with consistent feature support, broad interface availability, and the latest technology.
| General | |
|---|---|
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | 40 Gigabit Ethernet |
| Data Transfer Rate | 40 Gbps |
| Features | Flow control, full duplex capability, layer 3 switching, layer 2 switching, MPLS support, Quality of Service (QoS), NetFlow |
| Compliant Standards | IEEE 802.3x, IEEE 802.3ah, IEEE 802.1ag, ITU-T G.709 |
| Expansion / Connectivity | Interfaces: 1 x 40Gb Ethernet – QSFP |
| Compatible Slots | 1 x expansion slot |
| Miscellaneous | Compliant Standards: NEBS level 3, FCC Class A certified, ETSI, CISPR 22 Class A, EN 61000-3-2, EN55022, VCCI Class A ITE, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, AS/NZ 3548 Class A, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, FDA, CSA C22.2 No. 60950-1, BSMI Class A, GR-1089-CORE, EN 300 386 |
| Dimensions & Weight | Width: 6.4 in |
| Depth: 6.7 in | |
| Height: 1.4 in | |
| Weight: 1.54 lbs |
| Environmental Parameters | Min Operating Temperature: 41 °F |
| Max Operating Temperature: 104 °F | |
| Humidity Range Operating: 10 – 85% | |
| Compatibility Information | Designed For: Cisco ASR 9001, 9006, 9006 with PEM Version 2, 9010, 9010 with PEM Version 2 |
