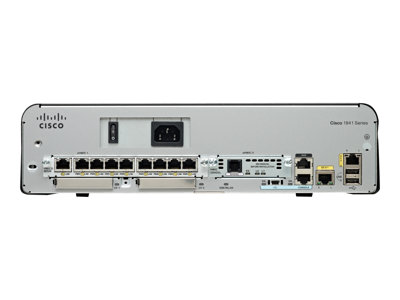

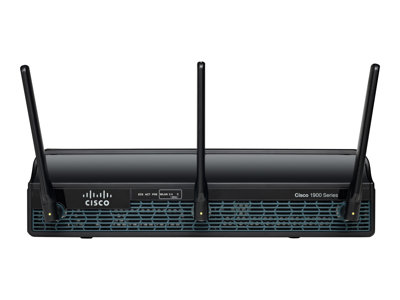

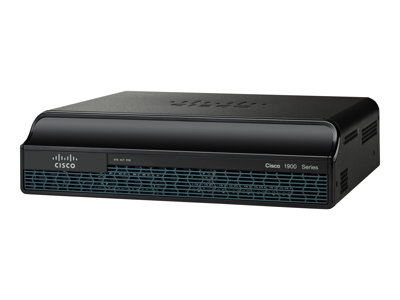

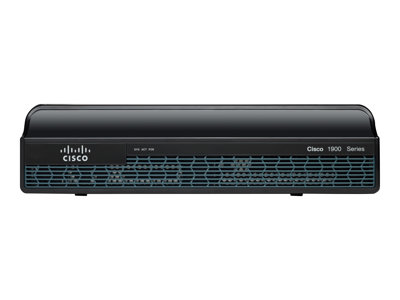

Cisco 1941 – wireless router – 802.11a/b/g/n (draft 2.0) – desktop, rack-mountable
Tech overview
8,199.00 د.إ
The platforms are architected to enable the next phase of branch-office evolution, providing rich media collaboration and virtualization to the branch while maximizing operational cost savings The Integrated Services Routers Generation 2 platforms are future-enabled with multicore CPUs, Gigabit Ethernet switching with enhanced POE, and energy monitoring and control capabilities while enhancing overall system performance. Overall, the Cisco 1900 series offer unparalleled total cost of ownership savings and network agility through the intelligent integration of market leading security, unified communications, wireless, and application services.
This Cisco 1900 series integrated services router offers embedded hardware encryption acceleration, optional firewall, intrusion prevention, and application services. In addition, the platforms support the industries widest range of wired and wireless connectivity options such as T1/E1, xDSL, 3G, and GE.
| Specifications |
|---|
| General |
| Device Type | Wireless router |
| Enclosure Type | Desktop, rack-mountable – modular – 2U |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, |
| IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, |
| IEEE 802.11n (draft 2.0) |
| Network / Transport Protocol | IPSec, PPPoE, L2TPv3 |
| Routing Protocol | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, |
| IGMPv3, GRE, PIM-SSM, static IPv4 routing, |
| static IPv6 routing, policy-based routing |
| (PBR), MPLS, Bidirectional Forwarding |
| Detection (BFD), IPv4-to-IPv6 Multicast |
| Remote Management Protocol | SNMP, RMON |
| Encryption Algorithm | LEAP, MD5, TLS, PEAP, TKIP, WPA, WPA2 |
| Authentication Method | RADIUS, Extensible Authentication Protocol |
| (EAP), EAP-FAST |
| Features |
| Firewall protection | Yes |
| Hardware encryption | Yes |
| VPN support | Yes |
| MPLS support | Yes |
| Syslog support | Yes |
| IPv6 support | Yes |
| CBWFQ | Yes |
| WRED | Yes |
| Compliant Standards |
| IEEE 802.11b | Yes |
| IEEE 802.11a | Yes |
| IEEE 802.11g | Yes |
| IEEE 802.3ah | Yes |
| IEEE 802.1ah | Yes |
| IEEE 802.1ag | Yes |
| IEEE 802.11n (draft 2.0) | Yes |
| CISPR 22 Class A | Yes |
| CISPR 24 | Yes |
| EN55024 | Yes |
| EN55022 Class A | Yes |
| EN50082-1 | Yes |
| CAN/CSA-E60065-00 | Yes |
| ICES-003 Class A | Yes |
| CS-03 | Yes |
| AS/NZS 3548 | Yes |
| FCC CFR47 Part 15 | Yes |
| UL 60950-1 | Yes |
| IEC 60950-1 | Yes |
| EN 60950-1 | Yes |
| CSA C22.2 No. 60065 | Yes |
| BSMI CNS 13438 | Yes |
| EN 300 386 | Yes |
| RAM |
| Installed | 512 MB |
| Max | 2 GB |
| Flash Memory |
| Installed | 256 MB |
| Max | 8 GB |
| Status Indicators |
| Power | Yes |
| Link/activity | Yes |
| Expansion / Connectivity |
| Interfaces |
| 10/100/1000Base-T | 2 x RJ-45 |
| Management | 1 x console – RJ-45 |
| Management | 1 x console – mini-USB Type B |
| Serial | 1 x auxiliary – RJ-45 |
| USB | 2 x 4 pin USB Type A |
| Expansion Slots |
| EHWIC | 2 (total) / 2 (free) |
| CompactFlash | 2 (total) / 1 (free) |
| Antenna |
| Type | External detachable |
| Qty | 3 |
| Directivity | Omni-directional |
| Gain Level | 2 dBi |
| Power |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous |
| Rack Mounting Kit | Included |
| Software / System Requirements |
| OS Provided | Cisco IOS IP Base |
| Dimensions & Weight |
| Width | 13.5 in |
| Depth | 11.5 in |
| Height | 3.5 in |
| Weight | 12.79 lbs |
