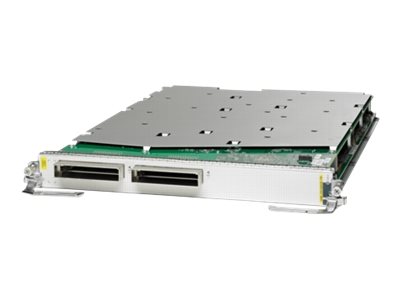

Cisco 2-Port 100GE Packet Transport Optimized Line Card – Expansion module – 100 Gigabit CFP x 2 – refurbished – for ASR 9001, 9006, 9006 with PEM Version 2, 9010, 9010 with PEM Version 2, 9904, 9912, 9922
AED852,299.00
The Cisco ASR 9000 Series 2-Port 100 Gigabit Ethernet Line Cards deliver an industry-leading two 100 Gigabit Ethernet ports to any slot of a Cisco ASR 9000 Series Aggregation Services Router. These high-capacity line cards are designed to remove bandwidth bottlenecks in the network today that are caused by a large increase in video-on-demand (VoD), IPTV, point-to-point video, Internet video, and cloud services traffic. Large 10 Gigabit Ethernet link aggregation bundles can now be replaced by a single 100 Gigabit Ethernet port to simplify network designs. These line cards deliver economical, scalable, highly available, line-rate Ethernet and IP/Multiprotocol Label Switching (MPLS) edge services. The Cisco ASR 9000 Series line cards and routers are designed to provide the fundamental infrastructure for scalable Carrier Ethernet and IP/MPLS networks, allowing profitable business, residential, and mobile services.
| General | |
|---|---|
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Networking | |
| Ports | 100 Gigabit CFP x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 100 Gigabit Ethernet |
| Data Transfer Rate | 100 Gbps |
| Features | Flow control, full duplex capability, layer 3 switching, layer 2 switching, MPLS support, Quality of Service (QoS), NetFlow |
| Compliant Standards | IEEE 802.1x, IEEE 802.3ah, IEEE 802.1ag, ITU-T G.709, ITU-T Y.1731 |
| Expansion / Connectivity | |
| Interfaces | 2 x 100Gb Ethernet – CFP |
| Compatible Slots | 1 x expansion slot |
| Miscellaneous | |
| Compliant Standards | NEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, ACA TS001, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, EN 61000-4-7, FDA, CSA C22.2 No. 60950-1, AS/NZS 3548 Class A, BSMI Class A, AS/NZS 60950 |
| Pricing Type | Refurbished |
| Dimensions & Weight | |
| Width | 1.7 in |
| Depth | 20.5 in |
| Height | 14 in |
| Weight | 14 lbs |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 85% |
| Compatibility Information | |
| Designed For | Cisco ASR 9001, 9006, 9006 with PEM Version 2, 9010, 9010 with PEM Version 2, 9904, 9912, 9922 |
