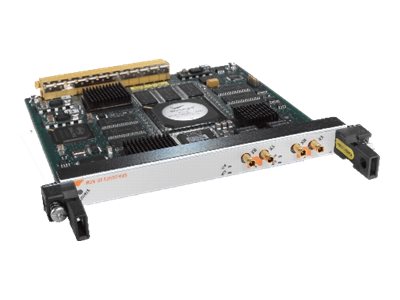

Cisco 2-port Channelized T3/E3 CE Over Packet & Channelized ATM SPA – expansion module – 2 ports


Cisco 2-port Channelized T3/E3 CE Over Packet & Channelized ATM SPA – Expansion module – 10Mb LAN, ATM, PPP, POS – 2 ports – T-3/E-3 – for Cisco 7603, 7604, 7606, 7609, 7613; ASR 1001, 1002, 1004, 1006, 1013; XR 12XXX

157,799.00 د.إ

The Cisco 2-Port Channelized T3/E3 circuit emulation over packet and ATM SPA is available on high-end Cisco routing platforms, offering the benefits of network scalability with lower initial costs and easy upgrades. The Cisco SPA/SIP portfolio continues Cisco’s focus on investment protection along with consistent feature support, broad interface availability, and the latest technology. The Cisco SPA/SIP portfolio allows different interfaces to be deployed on the same interface processor.

SKU: SPA-2CHT3-CE-ATM= 1 Category: Tag:
Device Type Expansion module – 2 ports
Form Factor Plug-in module
Networking
Connectivity Technology Wired
Data Link Protocol Ethernet, ATM, PPP, POS
Network / Transport Protocol PPPoA, ARP
Remote Management Protocol SNMP
Line Rate T-3/E-3
Status Indicators Port status, active, carrier detect, status, alarm
Features MPLS support, traffic shaping, EZQoS
Compliant Standards ANSI T1.102
Expansion / Connectivity
Interfaces 2 x T3/E3
Compatible Slots 1 x expansion slot
Miscellaneous Compliant Standards: VCCI, EN55022, ICES-003, EN55024, CISPR 22, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, FCC Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, NEBS, EN 300 386
Dimensions & Weight
Width 6.8 in
Depth 7.3 in
Height 0.8 in
Weight 11.99 oz
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 – 85%
Compatibility Information Designed For: Cisco 7603, 7603-S, 7604, 7604 Security Bundle, 7606, 7606 Security Bundle, 7606-S, 7609, 7609 Security Bundle, 7609-S, 7613, 7613 Security Bundle ¦ Cisco ASR 1001, 1002, 1002 BB Bundle, 1002 FPI Bundle, 1002 HA Bundle, 1002 Security HA Bundle, 1002 VPN and Firewall Bundle, 1002 VPN Bundle, 1002-F, 1002-F Security HA Bundle, 1002-F VPN and Firewall Bundle, 1002-F VPN Bundle, 1004, 1004 FPI Bundle, 1004 HA Bundle, 1004 Security HA Bundle, 1004 VPN and Firewall Bundle, 1004 VPN Bundle, 1006, 1006 BB Bundle, 1006 FPI Bundle, 1006 HA Bundle, 1006 Security HA Bundle, 1006 VPN and Firewall Bundle, 1006 VPN Bundle, 1013 ¦ Cisco XR 12000, 12404, 12406, 12406E, 12410, 12416
