10 in stock
AED2,899.00
10 in stock

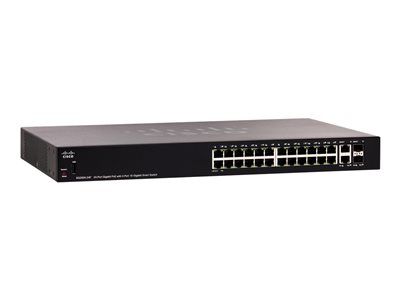

The Cisco SG250X-24P is a 24-port Gigabit with Power over Ethernet and 4-port 10 Gigabit Ethernet switch that provides seamless networking. You can deploy and configure a complete business network in minutes with Smart Network Application, FindIT Network Manager, and Network Plug and Play (PnP) support. Energy-efficient capabilities are embedded, including energy detect and Energy Efficient Ethernet (EEE); all provide an eco-friendly and cost-effective solution without compromising performance. This switch is part of the Cisco small and midsize business portfolio and is an affordable smart switch equipped with security, performance, and ease of use to help build a solid business network.
In addition to basic management, security, and quality of service (QoS), these switches support capabilities such as Layer 3 static routing, access control lists (ACLs), and Power over Ethernet Plus (PoE+).
The Smart Network Application provides an innovative solution for on-box multi-device management. The 250 Series also supports FindIT Network Manager with Network PnP for on premise and cloud management across multiple sites.
The 250 Series is designed and tested to deliver the high performance and reliability you would expect from Cisco switches. Enjoy speedy file transfers and keep vital business applications available.
Comprehensive energy-saving features are embedded, including energy detect, cable length detection, and Energy Efficient Ethernet (EEE). All provide an eco-friendly and cost-effective solution without compromising performance.
| Device Type | Switch – 24 ports – L3 – smart |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 2 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 195 W |
| Performance | Switching capacity: 128 Gbps Switching capacity (64-byte packet size): 95.23 Mpps |
| Capacity | Active VLANs: 256 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, MLDv2, MLD, CIDR |
| Remote Management Protocol | SNMP, RMON, Telnet, HTTP, HTTPS, TFTP, SSH |
| Encryption Algorithm | MD5, SSL |
| Authentication Method | RADIUS |
| Features | DHCP support, BOOTP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, 12MB packet buffer, SNMP support, 2 fans, Cisco Discovery Protocol |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az |
| Processor | X ARM: 800 MHz |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Status Indicators | System, link/speed |
| Interfaces | 24 x 1000Base-T PoE+ 2 x 10GBase-T RJ-45 2 x 10GBase-X SFP+ |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Rack Mounting Kit | Included |
| MTBF | 62,949 hours |
| Compliant Standards | UL 60950, FCC Part 15 A, CSA 22.2 |
| Localization | North America |
| Width | 17.3 in |
| Depth | 10.1 in |
| Height | 1.7 in |
| Weight | 8.51 lbs |
| Service & Support | Limited warranty – replacement – lifetime – response time: next business day Limited warranty – power supply and fans – 1 year |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 – 90% (non-condensing) |
| General | |
|---|---|
| Authentication Method | RADIUS |
| Capacity | Active VLANs: 256 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az |
| Device Type | Switch – 24 ports – L3 – smart |
| Enclosure Type | Rack-mountable 1U |
| Encryption Algorithm | MD5, SSL |
| Features | DHCP support, BOOTP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, 12MB packet buffer, SNMP support, 2 fans, Cisco Discovery Protocol |
| Flash Memory | 256 MB |
| Jumbo Frame Support | 9KB |
| MAC Address Table Size | 8K entries |
| Performance | Switching capacity: 128 Gbps ¦ Switching capacity (64-byte packet size): 95.23 Mpps |
| PoE Budget | 195 W |
| Ports | 24 x 10/100/1000 (PoE+) + 2 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| Processor | X ARM: 800 MHz |
| RAM | 512 MB |
| Remote Management Protocol | SNMP, RMON, Telnet, HTTP, HTTPS, TFTP, SSH |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, MLDv2, MLD, CIDR |
| Status Indicators | System, link/speed |
| Subtype | Gigabit Ethernet |
| Dimensions & Weight | |
|---|---|
| Depth | 10.1 in |
| Height | 1.7 in |
| Weight | 8.51 lbs |
| Width | 17.3 in |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating | 10 – 90% (non-condensing) |
| Humidity Range Storage | 10 – 90% (non-condensing) |
| Max Operating Temperature | 122 °F |
| Max Storage Temperature | 158 °F |
| Min Operating Temperature | 32 °F |
| Min Storage Temperature | -4 °F |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 24 x 1000Base-T PoE+ ¦ 2 x 10GBase-T RJ-45 ¦ 2 x 10GBase-X SFP+ |
| Manufacturer Warranty | |
|---|---|
| Service & Support | Limited warranty – replacement – lifetime – response time: next business day ¦ Limited warranty – power supply and fans – 1 year |
| Miscellaneous | |
|---|---|
| Compliant Standards | UL 60950, FCC Part 15 A, CSA 22.2 |
| Localization | North America |
| MTBF | 62,949 hours |
| Rack Mounting Kit | Included |
| Power | |
|---|---|
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
