The Cisco 2900 series Integrated Services Routers offer embedded hardware encryption acceleration, voice- and video-capable digital signal processor (DSP) slots, intrusion prevention, call processing, voicemail, and application services. In addition, the platforms support the industries widest range of wired and wireless connectivity options such as T1/E1, xDSL, copper and fiber GE. The Cisco 2901 Voice Bundle provides superior services integration and agility. Designed for scalability, the modular architecture of these platforms enables you to grow and adapt with your business needs.
Routers

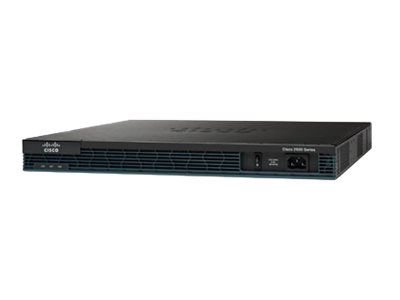

Cisco 2901 Voice Bundle – router – voice / fax module – desktop, rack-mountable, wall-mountable
Tech overview
Cisco 2901 Voice Bundle – Router – voice / fax module – GigE – WAN ports: 2 – rack-mountable, wall-mountable – refurbished
8,599.00 د.إ
Specifications |
---|
General |
Device Type | Router |
Enclosure Type | Desktop, rack-mountable, wall-mountable – modular – 1U |
Connectivity Technology | Wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Capacity |
Cisco Unified SRST sessions | 35 |
Cisco Unified Communications Manager Express sessions: | 35 |
Network / Transport Protocol | IPSec, PPPoE, L2TPv3 |
Routing Protocol | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), IPv4-to-IPv6 Multicast |
Remote Management Protocol | SNMP, RMON, TR-069 |
Encryption Algorithm | SSL |
Features |
Firewall protection | Yes |
Hardware encryption | Yes |
VPN support | Yes |
MPLS support | Yes |
Syslog support | Yes |
Content filtering | Yes |
IPv6 support | Yes |
CBWFQ | Yes |
WRED | Yes |
QoS | Yes |
DMVPN | Yes |
WSMA | Yes |
NetFlow | Yes |
Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824, CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI CNS 13438, AS/NZS 3548 Class A, VCCI V-3, EN 61000, TIA/EIA/IS-968, EN 300 386, CAN/CSA-C22.2 No. 60950-1 |
RAM | 512 MB (installed) / 2 GB (max) – DDR2 SDRAM |
Flash Memory | 256 MB (installed) / 8 GB (max) |
Status Indicators | Power, link/activity |
Communications |
Type | Voice / fax module |
Digital Ports Qty | 16 |
IP Telephony |
Voice Codecs | G.711, G.722, G.723.1, G.728, G.729, G.729a, G.729ab, G.726, G.729b |
Expansion / Connectivity |
Interfaces | WAN: 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Management: 1 x console – RJ-45 ¦ Management: 1 x console – mini-USB Type B ¦ Serial: 1 x auxiliary – RJ-45 ¦ USB 2.0: 2 x 4 pin USB Type A |
Expansion Slots | 4 (total) / 4 (free) x EHWIC ¦ 2 (total) / 1 (free) x PVDM ¦ 2 (total) / 1 (free) x CompactFlash ¦ 1 (total) / 1 (free) x ISM |
Power |
Power Device | Internal power supply |
Voltage Required | AC 120/230 V (50/60 Hz) |
Miscellaneous |
Rack Mounting Kit | Included |
Pricing Type | Refurbished |
Software / System Requirements |
OS Provided | Cisco IOS IP Base |
Software Included | Cisco IOS Unified Communications |
Dimensions & Weight |
Width | 17.3 in |
Depth | 17.3 in |
Height | 1.8 in |
Weight | 13.45 lbs |
