Cisco 3548-X, Refurbished Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Grey

Add to Wishlist

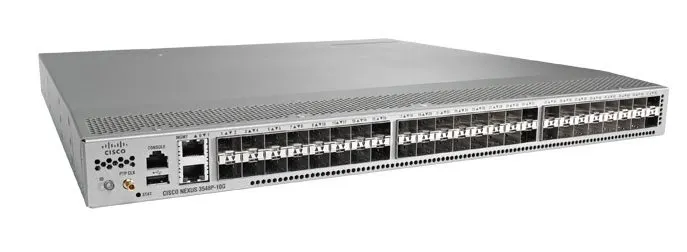

Nexus 3548-X Switch, 48 SFP+, 960 Gbps, 1RU, Refurbished

28,199.00 د.إ

Add to Wishlist

The Cisco Nexus®3000 Series Switches are a comprehensive portfolio of 1, 10, and 40 Gigabit Ethernet switches built from a Switch-on-a-Chip (SoC) architecture. Introduced in April 2011, this series of switches provides line-rate Layer 2 and 3 performance and is suitable for Top-of-the-Rack (ToR) architecture. This series of switches has established itself as a leader in High-Frequency Trading (HFT), High-Performance Computing (HPC), and big data environments by pairing high performance and low latency with innovations in performance visibility, automation, and time synchronization. The Cisco Nexus 3548-X and 3524-X Switches are the next generation of the Cisco Nexus 3500 platform. Like the previous generation, these switches are compact 1RU form-factor 10 Gigabit Ethernet switches and provide line-rate Layer 2 and 3 switching with ultra-low latency. In addition, they consume 25 percent less power. This new generation introduces powerful hardware-based multicast NAT and latency monitoring capabilities and a second USB port for easier manageability.

SKU: N3K-C3548P-10GX-RF Categories: , Tag:
Feature Details
Switch type Managed
Switch layer L2/L3
Web-based management Y
ARP inspection Y
System event log Y
Basic switching RJ-45 Ethernet ports 1
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity 48
Fiber optic connector SFP+
Console port RS-232
USB 2.0 ports quantity 2
Networking standards IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3z
10G support Y
Broadcast storm control Y
Spanning tree protocol Y
VLAN support Y
Number of VLANs 4096
MAC address table 64000 entries
Switching capacity 960 Gbit/s
Forwarding rate 720 Mpps
Jumbo frames support Y
Jumbo frames 9216
Packet buffer memory 18 MB
DHCP features DHCP relay
Access Control List (ACL) Y
Security algorithms AES, SNMP, SSH-2
SSH/SSL support Y
Authentication type AAA, RADIUS
Multicast support Y
IPv4 multicast entries 8000
Virtual Router Redundancy Protocol (VRRP) Y
Routing protocols BGP, EIGRP, HSRP, OSPF, RIP-2, VRRP
Rack mounting Y
Form factor 1U
Product colour Grey
LED indicators Y
Number of fans 4 fan(s)
Internal memory 4000 MB
Flash memory 4000 MB
Telnet Y
Redundant power supply (RPS) support Y
Number of power supply units 2
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
Power consumption (typical) 112 W
Power consumption (max) 213 W
Power over Ethernet (PoE) N
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -40 – 70 °C
Operating relative humidity (H-H) 10 – 85%
Storage relative humidity (H-H) 5 – 95%
Operating altitude 0 – 3000 m
Heat dissipation 383 BTU/h
Width 439 mm
Depth 467 mm
Height 43.6 mm
Weight 7.9 kg
