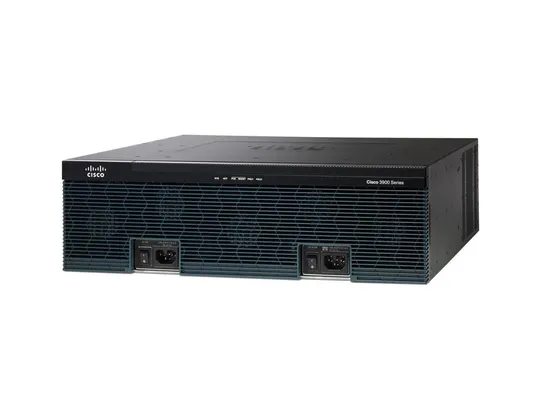

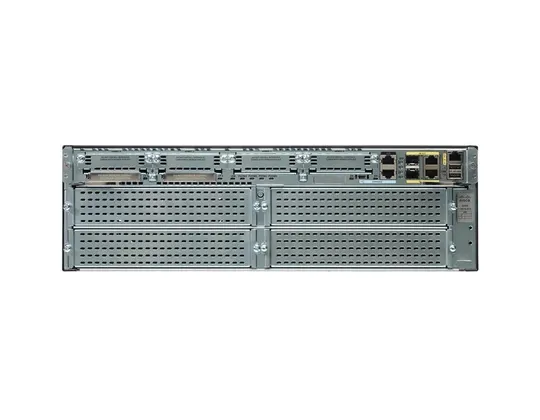

Cisco 3945 wired router Gigabit Ethernet Black, Grey


3945 Voice Sec. Bundle, PVDM3-64, UC and SEC License PAK

93,999.00 د.إ

Highlights

The Cisco 3945 Integrated Services Router (ISR) delivers highly secure data, voice, video, and application services to the small office. Key features include: – Modular Services Performance Engine (SPE) 150, which can be upgraded for even higher performance as next-generation WAN environments evolve – 3 integrated 10/100/1000 Ethernet ports with 2 ports capable of RJ-45 or SFP connectivity – 4 service module slots – 4 Enhanced High-Speed WAN Interface Card slots – 4 onboard digital signal processor (DSP) slots – 1 Internal Services Module slot – Dual integrated power supplies – Fully integrated power distribution to modules supporting 802.3af Power over Ethernet Security – Embedded hardware-accelerated VPN encryption for secure connectivity – Integrated threat control using Cisco IOS Firewall, Cisco IOS Zone-Based Firewall, Cisco IOS IPS, and Cisco IOS Content Filtering – Identity management using authentication, authorization, and accounting (AAA) and public key infrastructure Unified Communications – High-density-packet voice DSP module, optimized for voice and video support – Standards-certified VoiceXML browser services – Cisco Unified Border Element capabilities for up to 1000 sessions – Cisco Unity Express voicemail support – Support for Cisco Communications Manager Express and Survivable Remote Site Telephony

Category: Tag:
Feature Details
Ethernet WAN Y
Networking standards IEEE 802.1ag, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3u
Ethernet interface type Gigabit Ethernet
Ethernet LAN Y
Cabling technology 10/100/1000Base-T(X)
Ethernet LAN data rates 10,100,1000 Mbit/s
Web-based management Y
Quality of Service (QoS) support Y
Ethernet LAN (RJ-45) ports 3
USB ports quantity 2
USB version 2.0
Routing protocols BGP, EIGRP, IS-IS, OSPF
Management protocols CBWFQ, WRED, QoS, PBR, NBAR
Supported protocols IPv4, IPv6, IGMPv3, PIM SM, PIM SSM, DVMRP, IPv4-to-IPv6 Multicast, MPLS, Layer 2 & Layer 3 VPN, IPSec, L2TPv3, BFD, IEEE802.1ag, IEEE802.3ah
Security algorithms SSL/TLS
MAC address filtering Y
Harmonized System (HS) code 85176990
Flash memory 256 MB
Internal memory 1024 MB
Safety UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950-1, IEC 60950-1
Electromagnetic compatibility 47 CFR, 15 ICES-003 A, EN55022 A, CISPR22 A, AS/NZS 3548 A, VCCI V-3 CNS 13438, EN 300-386, EN 61000, EN 55024, CISPR 24, EN50082-1
Product colour Black, Grey
Rack mounting Y
Rack capacity 3U
LED indicators Y
On/off switch Y
Power consumption (typical) 105 W
Power source type AC
AC input voltage 100 – 240 V
AC input frequency 47 – 63 Hz
Input current 3 – 7.1 A
Power over Ethernet (PoE) Y
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -40 – 70 °C
Operating relative humidity (H-H) 5 – 85%
Storage relative humidity (H-H) 5 – 95%
Operating altitude 0 – 4000 m
Non-operating altitude 0 – 4570 m
Operating temperature (T-T) (imperial) 32 – 104 °F
Width 438.1 mm
Depth 476.2 mm
Height 133.3 mm
Weight 17.7 kg
I/O ports 2 x SFP, 2 x serial, 1 x USB (Type B)
Expansion slots 16
Weight (imperial) 27.2 kg (60 lbs)
Dimensions (W x D x H) (imperial) 438.1 x 476.2 x 133.3 mm (17.2 x 18.8 x 5.25″)
