Remove bandwidth bottlenecks in your network today that are caused by a large increase in video-on-demand (VoD), IPTV, point-to-point video, Internet video, and cloud services traffic with the Cisco ASR 9000 Series 40 and 56 Gigabit Ethernet Line Cards. This line card delivers industry-leading 40 1-Gigabit Ethernet ports or a combination of 4 10-Gigabit Ethernet and 16 1-Gigabit Ethernet ports to any slot of a Cisco ASR 9000 Series Aggregation Services Router. These line cards deliver economical, scalable, highly available, line-rate Ethernet and IP/Multiprotocol Label Switching IP/MPLS) edge services. The Cisco ASR 9000 Series line cards and routers are designed to provide the fundamental infrastructure for scalable Carrier Ethernet and IP/MPLS networks, allowing profitable business, residential, and mobile services.
Network Adapters

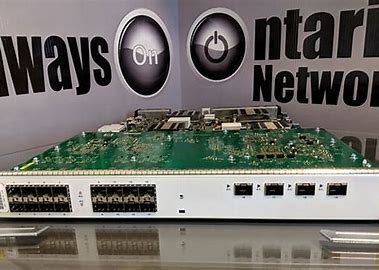

Cisco 4-port 10GE/16-port GE Packet Transport Optimized Line Card – expansion module
Cisco 4-port 10GE/16-port GE Packet Transport Optimized Line Card – Expansion module – 10 GigE – for ASR 9001, 9006, 9006 with PEM Version 2, 9010, 9010 with PEM Version 2, 9912, 9922
184,099.00 د.إ
General | |
---|---|
Device Type | Expansion module |
Form Factor | Plug-in module |
Networking | |
Connectivity Technology | Wired |
Data Link Protocol | 10 Gigabit Ethernet |
Data Transfer Rate | 10 Gbps |
Remote Management Protocol | SNMP |
Features | Flow control, layer 3 switching, layer 2 switching, VPN support, MPLS support, QoS, NetFlow |
Compliant Standards | IEEE 802.3, IEEE 802.1x, IEEE 802.3ah, IEEE 802.1ag, ITU-T Y.1731 |
Expansion / Connectivity | |
Expansion Slots | 12 (total) / 12 (free) x SFP, 4 (total) / 4 (free) x SFP+ |
Miscellaneous | Compliant Standards: NEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, ACA TS001, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, FDA, AS/NZS 3548 Class A, BSMI Class A, AS/NZS 60950, GR-1089-CORE, IEC 60825, VCCI Class A, GR-63-CORE, ETSI 300 019, CSA 22.2 No. 60950-1, EN 300386 |
Dimensions & Weight | |
Width | 1.7 in |
Depth | 20.5 in |
Height | 14 in |
Environmental Parameters |
Min Operating Temperature | 41 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 10 – 85% |
Compatibility Information | Designed For: Cisco ASR 9001, 9006, 9006 with PEM Version 2, 9010, 9010 with PEM Version 2, 9912, 9922 |
