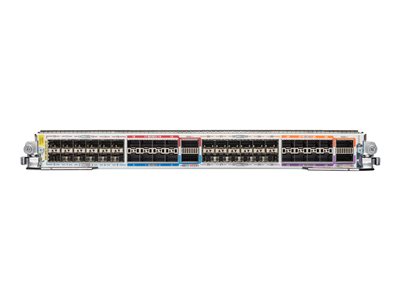

Cisco 400GE Combo Service Edge Line Card – 5th Generation – expansion module – 100 Gigabit QSFP28 / 40 Gigabit QSFP28 x 4 + 10/25 Gigabit SFP28 x 16 + 10 Gigabit SFP+ x 24

Add to Wishlist

Cisco 400GE Combo Service Edge Line Card – 5th Generation – Expansion module – 100 Gigabit QSFP28 / 40 Gigabit QSFP28 x 4 + 10/25 Gigabit SFP28 x 16 + 10 Gigabit SFP+ x 24 – for P/N: ASR-9006-MIG-KIT, ASR-9912-MIG-KIT, ASR-9922-LS-BUN, ASR-9922-MIG-KIT

د.إ1,270,799.00

Add to Wishlist

The Cisco ASR 9000 Series 5th Generation 400 Gigabit Ethernet Multi-Rate Line Card delivers high density, with line-rate 10, 25, 40, and 100 Gigabit Ethernet ports, to any slot of a Cisco ASR 9000 Series Aggregation Services Router. This Multi-Rate line card is designed to remove bandwidth bottlenecks in the network that are caused by a large increase in Video-on-Demand (VoD), IPTV, point-to-point video, internet video, and cloud services traffic. The physical interfaces support QSFP28, SFP28, QSFP+, SFP+ optics, giving customers the flexibility to mix and match interface types on the same line card.

SKU: A9K-4HG-FLEX-SE 1 Category: Tag:
General
Device Type Expansion module
Form Factor Plug-in module
Networking
Ports 100 Gigabit QSFP28 / 40 Gigabit QSFP28 x 4 + 10/25 Gigabit SFP28 x 16 + 10 Gigabit SFP+ x 24
Connectivity Technology Wired
Cabling Type Ethernet 10GBase-X, Ethernet 100GBase-X, Ethernet 40GBase-X, Ethernet 25GBase-X
Data Link Protocol 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet
Remote Management Protocol CLI, OAM
Features Flow control, MPLS support, full duplex mode, NetFlow, Virtual Circuit Connectivity Verification (VCCV), 802.1x authentication, IP Service Level Agreements (IP SLAs), support for Online Insertion and Removal (OIR), Cyclic Redundancy Check (CRC) support
Compliant Standards IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3ba, ITU-T Y.1731
Expansion / Connectivity Interfaces: 4 x 40Gb Ethernet/100Gb Ethernet – QSFP28, 16 x 10Gb Ethernet/25Gb Ethernet – SFP28, 24 x 10Gb Ethernet – SFP+
Miscellaneous Compliant Standards: FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, EN55022, IEC 61000-3-2, EN55024, EN50082-1, EN 61000-6-1, ACA TS001, ICES-003 Class A, FDA, NEBS, AS/NZS 60950, EN 50121-4, GR-1089-CORE, VCCI Class A, GR-63-CORE, EN 50121-3-2, IEC/UL/CSA/EN 60950-1, EN 55022 Class A, CNS 13438 Class A, EN 300 386, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55032 Class A, EN 55032, SR-3580 NEBS Level 3, CISPR 32 Class A, ETSI 300 019-2-3, ETSI 300 019-1-1, EN 55035, ETSI 300 019-3-1, IEC/EN 61000-3-3, IEC/EN 60825
Dimensions & Weight Width: 15.9 in
Depth: 24 in
Height: 1.7 in
Weight: 18.74 lbs
Environmental Parameters Min Operating Temperature: 41 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 10 – 85%
Compatibility Information Designed For: P/N: ASR-9006-AC-V2, ASR-9006-AC-V2=, ASR-9006-AC-V2-RF, ASR-9006-AC-V2-WS, ASR-9006-DC-V2, ASR-9006-DC-V2=, ASR-9006-DC-V2-RF, ASR-9006-DC-V2-WS, ASR-9006-MIG-KIT, ASR-9006-SYS, ASR-9006-SYS=, ASR-9006-SYS-RF, ASR-9006-SYS-WS, ASR-9010-AC-V2, ASR-9010-AC-V2=, ASR-9010-AC-V2-RF, ASR-9010-AC-V2-WS, ASR-9010-DC-V2, ASR-9010-DC-V2=, ASR-9010-DC-V2-RF, ASR-9010-DC-V2-WS, ASR-9010-MIG-KIT, ASR-9010-SYS, ASR-9010-SYS=, ASR-9010-SYS-RF, ASR-9010-SYS-WS, ASR-9904, ASR-9904=, ASR-9904-AC, ASR-9904-AC=, ASR-9904-DC, ASR-9904-DC=, ASR-9904-LS-BUN, ASR-9904-MIG-KIT, ASR-9904-RF, ASR-9904-WS, ASR-9906, ASR-9906=, ASR-9906-LS-BUN, ASR-9906-MIG-KIT, ASR-9906-RF, ASR-9906-WS, ASR-9910, ASR-9910=, ASR-9910-LS-BUN, ASR-9910-MIG-KIT, ASR-9910-RF, ASR-9910-WS, ASR-9912, ASR-9912=, ASR-9912-AC, ASR-9912-AC=, ASR-9912-DC, ASR-9912-DC=, ASR-9912-DC-RF, ASR-9912-LS-BUN, ASR-9912-MIG-KIT, ASR-9912-RF, ASR-9922, ASR-9922=, ASR-9922-AC, ASR-9922-AC=, ASR-9922-AC-RF, ASR-9922-AC-WS, ASR-9922-DC, ASR-9922-DC=, ASR-9922-DC-RF, ASR-9922-DC-WS, ASR-9922-LS-BUN, ASR-9922-MIG-KIT, ASR-9922-RF
