Cisco ASR 9000 series 40 and 56 Gigabit Ethernet Line Cards delivers industry-leading 40 1-Gigabit Ethernet ports or a combination of 10-Gigabit Ethernet ports to any slot of a Cisco ASR 9000 series aggregation services router. These line cards deliver economical, scalable, highly available, line-rate Ethernet and IP/Multiprotocol Label Switching (IP/MPLS) edge services. The Cisco ASR 9000 series line cards and routers are designed to provide the fundamental infrastructure for scalable Carrier Ethernet and IP/MPLS networks, allowing profitable business, residential, and mobile services.
Network Adapters

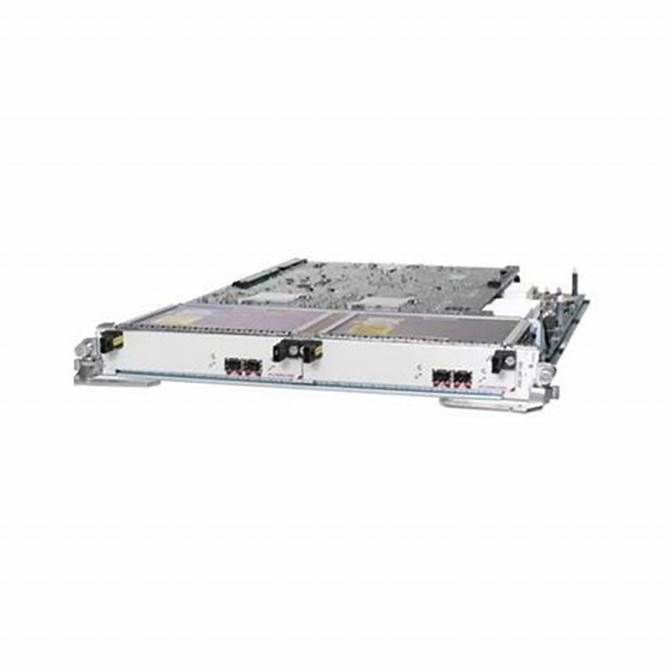

Cisco 40G Service Edge Optimized Line Card – expansion module – 10 Gigabit SFP+ x 4 + Gigabit SFP x 16
Cisco 40G Service Edge Optimized Line Card – Expansion module – 10 Gigabit SFP+ x 4 + Gigabit SFP x 16 – for ASR 9001, 9006, 9006 with PEM Version 2, 9010, 9010 with PEM Version 2, 9904, 9912, 9922
306,799.00 د.إ
General |
---|
Device Type | Expansion module |
Form Factor | Plug-in module |
Networking |
Ports | 10 Gigabit SFP+ x 4 + Gigabit SFP x 16 |
Connectivity Technology | Wired |
Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
Remote Management Protocol | CLI |
Features | Flow control, full duplex capability, MPLS support, QoS, NetFlow, VCCV |
Compliant Standards | IEEE 802.3, IEEE 802.3x, IEEE 802.3ah, IEEE 802.1ag, ITU-T Y.1731, NEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, ACA TS001, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, FDA, AS/NZS 3548 Class A, BSMI Class A, AS/NZS 60950, GR-1089-CORE, IEC 60825, VCCI Class A, GR-63-CORE, ETSI 300 019, EN 300386 |
Expansion / Connectivity |
Interfaces | 4 – SFP+ ¦ 12 – SFP (mini-GBIC) |
Dimensions & Weight |
Width | 1.7 in |
Depth | 20.5 in |
Height | 14 in |
Weight | 12.19 lbs |
Environmental Parameters |
Min Operating Temperature | 41 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 10 – 85% |
Compatibility Information |
Designed For | Cisco ASR 9001, 9006, 9006 with PEM Version 2, 9010, 9010 with PEM Version 2, 9904, 9912, 9922 |
