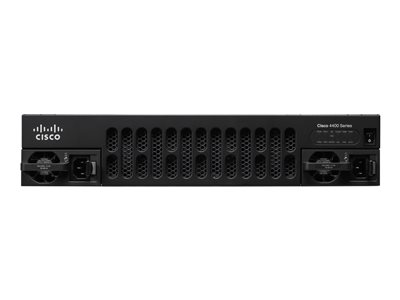

Cisco 4451-X Integrated Services Router – Application Experience with Voice Bundle – router – rack-mountable


Tech overview

Cisco 4451-X Integrated Services Router – Application Experience with Voice Bundle – router – GigE – WAN ports: 4 – rack-mountable – remanufactured

88,599.00 د.إ

The Cisco 4451-X Integrated Services Router revolutionizes the delivery of application-aware services in a branch-office environment. This member of the Cisco ISR Family provide extensive Layer 7 services hosted internally to the branch office while maximizing operating expenses (OpEx) savings.

The Cisco 4451-X offers a multicore CPU architecture running modular Cisco IOS XE software that dynamically adapts to the changing needs of your branch-office environment. The separation of the control and data planes provides the ability to deliver application-aware network services while maintaining a stable platform and a high level of performance during periods of heavy network load. With the ability to integrate application-aware services and the ability to scale performance without a complete equipment upgrade, the Cisco 4451-X offers exceptional total cost of ownership (TCO) savings and network agility through the intelligent integration of market-leading security, unified communications, and application services.

The Cisco 4451-X offers encryption acceleration, voice- and video-capable architecture, application firewall, call processing, and embedded services. In addition, the platform supports a range of wired connectivity options such as T1/E1, T3/E3, and fiber Gigabit Ethernet. This platform offers superior performance and flexibility for network deployments across large enterprise offices.

SKU: ISR4451-X-AXVK9-RF Category: Tag:
Specifications
General
Device Type Router
Enclosure Type Rack-mountable – modular – 2U
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Performance
Aggregate throughput 1 Gbps
Network / Transport Protocol
IPSec, PPPoE, DHCP, L2TPv3
Routing Protocol
OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), IPv4-to-IPv6 Multicast
Remote Management Protocol
SNMP, RMON
Features
Firewall protection Yes
VPN support Yes
MPLS support Yes
VLAN support Yes
Syslog support Yes
IPv6 support Yes
Class-Based Weighted Fair Queuing (CBWFQ) Yes
Weighted Random Early Detection (WRED) Yes
Wall mountable Yes
IPSec Virtual Private Network (VPN) Yes
Access Control List (ACL) support Yes
Quality of Service (QoS) Yes
Dynamic Multipoint VPN (DMVPN) Yes
RADIUS support Yes
Bidirectional Forwarding Detection (BFD) Yes
NetFlow Yes
IPFIX Yes
Compliant Standards
IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824, CISPR 22 Class A, CISPR 24, EN55024, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 3548 Class A, VCCI V-3, EN 61000, EMI, KN22, KN24, CNS 13438, EN 55022 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1
RAM
Installed 4 GB
Maximum 16 GB
Type DDR3 SDRAM
Flash Memory
Installed 8 GB
Maximum 32 GB
Expansion / Connectivity
Interfaces
WAN / LAN 4 x 10/100/1000Base-T – RJ-45
Serial 1 x console – RJ-45, 1 x auxiliary – RJ-45
Management 1 x console – mini-USB Type B, 1 x RJ-45
USB 2.0 2 x 4 pin USB Type A
SFP (mini-GBIC) 4
Expansion Slots
Total 3
Free 3
NIM 3 (total) / 3 (free)
ISC 1 (total) / 0 (free)
Enhanced Service Module (SM-X) 2 (total) / 2 (free)
DIMM 240-pin 3 (total) / 0 (free)
CompactFlash 1
Power
Power Device Internal power supply – hot-plug – 450 Watt
Power Redundancy Yes
Installed Qty 2 (installed) / 2 (max)
Voltage Required AC 100-240 V (50/60 Hz)
Miscellaneous
Included Accessories 64-channel voice DSP module
Rack Mounting Kit Included
Pricing Type Remanufactured
Software / System Requirements
OS Provided Cisco IOS Application Experience License
Software Included Cisco IOS IP Base, Cisco IOS Unified Communications, Cisco IOS Security, Cisco Unified Border Element Enterprise Edition (25 sessions)
Dimensions & Weight
Width 17.2 in
Depth 18.5 in
Height 3.5 in
Weight 28.88 lbs
