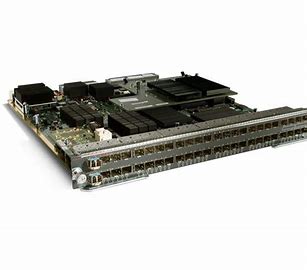

Cisco 48-Port 1 Gigabit SFP Fiber Ethernet Module with DFC4 – expansion module – 48 ports

Add to Wishlist

Cisco 48-Port 1 Gigabit SFP Fiber Ethernet Module with DFC4 – Expansion module – 1GbE – 48 ports – for Catalyst 6503-E, 6504-E, 6506-E, 6506-E IDSM-2, 6509-E, 6509-E 10Gig, 6513-E

AED110,399.00

Add to Wishlist

Designed for high performance Enterprise and Service Provider distribution, core layers, data-center, Web-hosting and Metro Ethernet applications, 6800 Series Fiber and Copper media interface modules provide Gigabit Ethernet forwarding using fiber optic or twisted pair cabling.

SKU: WS-X6848-SFP-2T 1 Category: Tag:
General
Device Type Expansion module – 48 ports
Form Factor Plug-in module
Networking
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet
Data Transfer Rate 1 Gbps
Status Indicators Status, link/activity
Features Jumbo Frames support, Link Aggregation Control Protocol (LACP)
Compliant Standards IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s
Processor / Memory RAM: 1 GB
Expansion / Connectivity
Interfaces 48 x network – SFP (mini-GBIC)
Compatible Slots 1 x expansion slot
Miscellaneous
Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, ICES-003 Class A, FCC CFR47 Part 15, FCC CFR21 Part 1040, IEC 60950-1, EN 60950-1, IEC 60825-1, EN 60825-1, CAN/CSA-C22.2 No. 60950-1
Power
Power Consumption Operational 334.44 Watt
Dimensions & Weight
Width 14 in
Depth 16 in
Height 1.2 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 90% (non-condensing)
Compatibility Information
Designed For Cisco Catalyst 6503-E, 6503-E chassis with Supervisor Engine 32, 6503-E Firewall Security System Bundle, 6503-E WSLM Bundle, 6504-E, 6504-E Application Control Engine (ACE) 20 Bundle, 6504-E chassis with Supervisor Engine 32, 6504-E with Supervisor Engine 720-3B, 6504-E with WiSM Bundle, 6506-E, 6506-E chassis with Supervisor Engine 32, 6506-E Firewall Security System Bundle, 6506-E IDSM-2 Bundle with 2-Gbps Performance, 6506-E IPSec VPN SPA Security System Bundle, 6506-E VPN System, 6506-E WLSM Bundle, 6509-E, 6509-E 10Gig Firewall Security System Bundle, 6509-E Application Control Engine (ACE) 20 Bundle, 6509-E Application Control Engine (ACE) 30 8G Bundle, 6509-E chassis with Supervisor Engine 32, 6509-E Data Center Services Bundle, 6509-E Firewall Security System Bundle, 6509-E Firewall Security System Bundle with Supervisor Engine 720-3BXL, 6509-E IPSec VPN SPA Security System, 6509-E with Supervisor Engine 720, 6509-E with WiSM Bundle, 6513-E
