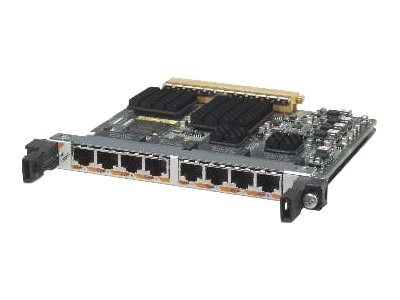

Cisco 8-Port 10BASE-T/100BASE-TX Fast Ethernet Shared Port Adapter, Version 2 – expansion module – 10/100 Ethernet x 8
Cisco 8-Port 10BASE-T/100BASE-TX Fast Ethernet Shared Port Adapter, Version 2 – Expansion module – 10/100 Ethernet x 8 – for Cisco 12XXX, 7603, 7604, 7606, 7609, 7613; XR 12XXX
AED86,099.00
The Cisco 8-Port Fast Ethernet shared port adapter (SPA) is available on high-end Cisco routing platforms, offering the benefits of network scalability with lower initial costs and ease of upgrades. The Cisco SPA/SIP portfolio continues the company’s focus on investment protection along with consistent feature support, broad interface availability, and the latest technology. The Cisco SPA/SIP portfolio allows deployment of different interfaces (packet over SONET/SDH [POS], ATM, Ethernet, etc.) on the same interface processor. Fast Ethernet interfaces are commonly used to interconnect routers or other devices within a central office or data center or in a metropolitan-area network (MAN). With Cisco FE SPAs, users can mix and match SPA ports with other types of interfaces in the same slot. Each SPA provides standards-based Fast Ethernet implementation for compatibility and interoperability.
| General |
|---|
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Networking |
| Ports | 10/100 Ethernet x 8 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Data Transfer Rate | 100 Mbps |
| Remote Management Protocol | SNMP, RMON, CLI |
| Status Indicators | Port status, power, status |
| Features | Flow control, full duplex capability, auto-sensing per device, auto-negotiation, MPLS support, VLAN support, MAC address filtering, Virtual Route Redundancy Protocol (VRRP) support, Quality of Service (QoS), Jumbo Frames support |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1ad |
| Expansion / Connectivity |
| Interfaces | 8 x 100Base-TX – RJ-45 |
| Compatible Slots | 1 x expansion slot |
| Miscellaneous |
| Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EMC, ICES-003 Class A, EN 61000-4-11, FCC CFR21 Part 1040, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, EN 60825-1, FCC Part 15 B Class A, EN 55022 Class A, EN 300 386 |
| Dimensions & Weight |
| Width | 6.8 in |
| Depth | 7.3 in |
| Height | 0.8 in |
| Weight | 11.99 oz |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 – 85% |
| Compatibility Information |
| Designed For | Cisco 12006, 12008, 12010, 12012, 12016, 12404, 12406, 12410, 12416, 12810, 12816, 7603, 7604, 7606, 7606 Security Bundle, 7609, 7609 Security Bundle, 7613, 7613 Security Bundle ¦ Cisco XR 12404, 12406, 12410, 12416 |
