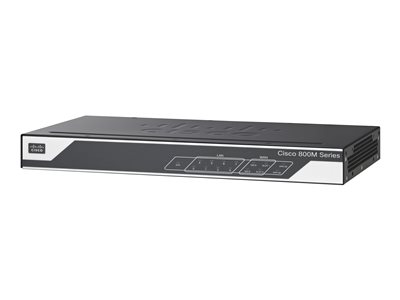

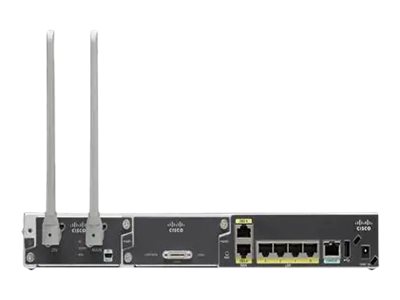

Cisco 841M – router – desktop, rack-mountable, wall-mountable
Tech overview
Cisco 841M – Router – 4-port switch – GigE – WAN ports: 2 – rack-mountable, wall-mountable – refurbished
3,199.00 د.إ
The Cisco 841M integrated services router (ISR) is a modular platform in the Cisco 800 Series ISR product family. Intended for small to medium sites, it provides a flexible array of WAN connectivity possibilities with easy migration among WAN interface types. The Cisco 841M integrates enterprise-class security and application services while delivering optimal price / performance ratio. It supports multiple 3G technologies on the same pluggable WAN interface, providing you with the ability to choose the service provider. The platform provides an open, extensible environment for developing and hosting applications at the network edge for local processing right in the router.
| Specifications |
|---|
| General |
| Device Type | Router – 4-port switch (integrated) |
| Enclosure Type | Desktop, rack-mountable, wall-mountable – modular |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet |
| Capacity | Virtual interfaces (VLANs) per port for 802.1q: 16 |
| Network / Transport Protocol |
| L2TP | Yes |
| RSVP | Yes |
| IPSec | Yes |
| PPPoE | Yes |
| FTP | Yes |
| DHCP | Yes |
| DNS | Yes |
| L2TPv3 | Yes |
| RTP | Yes |
| Routing Protocol |
| OSPF | Yes |
| RIP-1 | Yes |
| RIP-2 | Yes |
| BGP | Yes |
| EIGRP | Yes |
| HSRP | Yes |
| VRRP | Yes |
| NHRP | Yes |
| IGMPv3 | Yes |
| OSPF for IPv6 | Yes |
| GRE | Yes |
| OSPFv3 | Yes |
| PBR | Yes |
| BGP-4+ | Yes |
| WCCP | Yes |
| BFD | Yes |
| BGP for IPv6 | Yes |
| Remote Management Protocol |
| SNMP | Yes |
| Telnet | Yes |
| SNMP 3 | Yes |
| HTTP | Yes |
| HTTPS | Yes |
| SSH | Yes |
| CLI | Yes |
| Encryption Algorithm |
| DES | Yes |
| Triple DES | Yes |
| IKE | Yes |
| SSL | Yes |
| PKI | Yes |
| 128-bit AES | Yes |
| 192-bit AES | Yes |
| 256-bit AES | Yes |
| IKEv2 | Yes |
| Authentication Method |
| SSH | Yes |
| RADIUS | Yes |
| TACACS+ | Yes |
| Features |
| NAT support | Yes |
| DiffServ support | Yes |
| MAC address filtering | Yes |
| LLQ | Yes |
| CBWFQ | Yes |
| WFQ | Yes |
| STP support | Yes |
| ACL support | Yes |
| QoS | Yes |
| LFI | Yes |
| DMVPN | Yes |
| DHCP server | Yes |
| DNS proxy | Yes |
| Reset button | Yes |
| DHCP relay | Yes |
| DHCP client | Yes |
| MIB | Yes |
| VRF | Yes |
| FNF | Yes |
| Security lock slot | Yes |
| 802.1x authentication | Yes |
| DSCP support | Yes |
| Storm Control | Yes |
| ICMP | Yes |
| Compliant Standards |
| IEEE 802.1D | Yes |
| IEEE 802.1Q | Yes |
| IEEE 802.1x | Yes |
| EN 61000-3-2 | Yes |
| EN55024 | Yes |
| EN55022 Class B | Yes |
| EMC | Yes |
| FCC CFR47 Part 15 | Yes |
| UL 60950-1 | Yes |
| VCCI Class B | Yes |
| EN 300 386 V1.6.1 | Yes |
| IEC 60950-1:2005 Second Edition | Yes |
| EN 301 489-7 | Yes |
| EN 301 489-1 | Yes |
| FCC CFR47 Part 22 | Yes |
| FCC CFR47 Part 24 | Yes |
| EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 | Yes |
| EN 301 489-24 | Yes |
| EN 301 908-1 | Yes |
| EN 301 908-2 | Yes |
| EN 301 511 | Yes |
| RAM |
| Installed | 512 MB |
| Max | 512 MB |
| Flash Memory |
| Installed | 2 GB |
| Max | 2 GB |
| Status Indicators |
| Status | Yes |
| Expansion / Connectivity |
| Interfaces |
| Serial: | 1 x console |
| LAN: | 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45 |
| WAN: | 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45 |
| USB: | 1 x 4 pin USB Type A |
| Expansion Slots |
| WIM | 2 (total) / 2 (free) |
| Power |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50 – 60 Hz) |
| Miscellaneous |
| Pricing Type | Refurbished |
| Localization | Japan |
| Software / System Requirements |
| OS Provided | Cisco IOS Advanced IP services |
| Dimensions & Weight |
| Width | 13.5 in |
| Depth | 6.9 in |
| Height | 1.7 in |
| Weight | 3.75 lbs |
