Routers

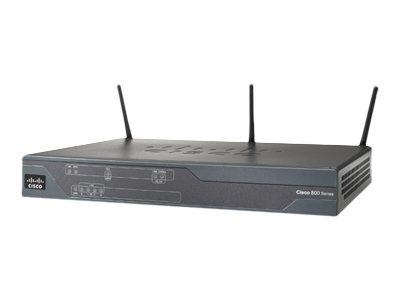

Cisco 866VAE – router – ISDN/DSL – desktop, rack-mountable
Tech overview
Cisco 866VAE – Router – ISDN/DSL – 4-port switch – GigE – WAN ports: 2 – rack-mountable
1,699.00 د.إ
An entry-level member of the Cisco integrated services router generation 2 (ISR G2) family, the Cisco 866VAE integrated services router offers connectivity to teleworkers and small branches.
| Specifications | |
|---|---|
| General | |
| Device Type | Router – 4-port switch (integrated) |
| Enclosure Type | Desktop, rack-mountable – 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Capacity | IPSec VPN tunnels: 10 |
| Network / Transport Protocol | IPSec, PPPoE, PPPoA, DHCP, DNS |
| Routing Protocol | RIP-1, RIP-2 |
| Remote Management Protocol | SNMP 3, HTTP, HTTPS, SSH |
| Features | Firewall protection, auto-uplink (auto MDI/MDI-X), IPv6 support, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), DHCP server, DNS proxy, DHCP relay, Web Services Management Agent (WSMA), NetFlow, DHCP client |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ah, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN55022 Class B, EN 61000-4-3, EN 61000-4-6, AS/NZS 3548, FCC CFR47 Part 15, VCCI V-3 |
| RAM | 256 MB (installed) / 256 MB (max) |
| Flash Memory | 64 MB |
| Line Properties | Framing Format: ANSI T1.413 |
| Communications | |
| Type | ISDN / DSL modem combo |
| Digital Signaling Protocol | ADSL2+ over ISDN, VDSL2 over ISDN |
| Protocols & Specifications | ITU G.994.1 (G.hs), ITU G.992.3 Annex A, ITU G.992.3 Annex L, ITU G.992.5 Annex M, ITU G.993.2, ITU G.992.3 Annex M, ITU G.992.5 Annex A, ITU G.992.5 Annex B, ITU G.992.3 Annex B |
| Expansion / Connectivity | |
| Interfaces | LAN: 4 x 10Base-T/100Base-TX – RJ-45 ¦ Management: 1 x console – RJ-45 ¦ WAN: 1 x ADSL2+ over ISDN ¦ USB: 1 x 4 pin USB Type A ¦ WAN: 1 x VDSL2 over ISDN ¦ LAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 |
| Power | |
| Power Device | External power adapter – 60 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| OS Provided | Cisco IOS IP Base |
| Dimensions & Weight | |
| Width | 8.2 in |
| Depth | 7.8 in |
| Height | 1.5 in |
| Weight | 5.51 lbs |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 85% (non-condensing) |
