Routers

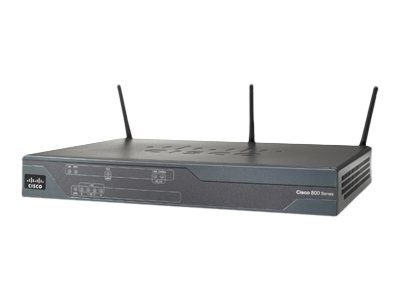

Cisco 866VAE – wireless router – ISDN/DSL – 802.11b/g/n (draft 2.0) – desktop
Tech overview
Cisco 866VAE – Wireless router – ISDN/DSL – 5-port switch – GigE – WAN ports: 2 – 802.11b/g/n (draft 2.0) – 2.4 GHz – refurbished
AED3,199.00
An entry-level member of the Cisco integrated services router generation 2 (ISR G2) family, the Cisco 866VAE integrated services router offers connectivity to teleworkers and small branches.
| Specifications |
|---|
| General |
| Device Type | Wireless router – 5-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft 2.0) |
| Frequency Band |
| 2.4 GHz |
| Selectable Channels Qty | 13 |
| Capacity |
| IPSec VPN tunnels | 10 |
| Network / Transport Protocol |
| IPSec | Yes |
| PPPoE | Yes |
| PPPoA | Yes |
| DHCP | Yes |
| DNS | Yes |
| Routing Protocol |
| RIP-1 | Yes |
| RIP-2 | Yes |
| BGP | Yes |
| PBR | Yes |
| Remote Management Protocol |
| SNMP 3 | Yes |
| HTTP | Yes |
| HTTPS | Yes |
| SSH | Yes |
| Encryption Algorithm |
| LEAP | Yes |
| DES | Yes |
| Triple DES | Yes |
| MD5 | Yes |
| TLS | Yes |
| PEAP | Yes |
| TTLS | Yes |
| TKIP | Yes |
| WPA | Yes |
| WPA2 | Yes |
| WPA-PSK | Yes |
| PKI | Yes |
| 128-bit AES | Yes |
| 192-bit AES | Yes |
| 256-bit AES | Yes |
| Authentication Method |
| RADIUS | Yes |
| TACACS+ | Yes |
| Features |
| NAT support | Yes |
| VLAN support | Yes |
| Auto-uplink (auto MDI/MDI-X) | Yes |
| SPI | Yes |
| MAC address filtering | Yes |
| IPv6 support | Yes |
| CBWFQ | Yes |
| WFQ | Yes |
| ACL support | Yes |
| QoS | Yes |
| DHCP server | Yes |
| DNS proxy | Yes |
| NetFlow | Yes |
| Compliant Standards |
| IEEE 802.1D | Yes |
| IEEE 802.1Q | Yes |
| IEEE 802.11b | Yes |
| IEEE 802.11g | Yes |
| IEEE 802.3ah | Yes |
| Wi-Fi CERTIFIED | Yes |
| IEEE 802.11n (draft 2.0) | Yes |
| CISPR 24 | Yes |
| EN 61000-3-2 | Yes |
| EN55022 | Yes |
| ICES-003 | Yes |
| EN 61000-3-3 | Yes |
| EN55024 | Yes |
| CISPR 22 | Yes |
| EN55022 Class B | Yes |
| EN 61000-4-3 | Yes |
| EN 61000-4-6 | Yes |
| AS/NZS 3548 | Yes |
| FCC CFR47 Part 15 | Yes |
| VCCI V-3 | Yes |
| RAM |
| Installed | 256 MB |
| Max | 256 MB |
| Flash Memory |
| Installed | 128 MB |
| Max | 128 MB |
| Status Indicators |
| Port status | Yes |
| Power | Yes |
| Line Properties |
| Framing Format | ANSI T1.413 |
| Communications |
| Type | ISDN / DSL modem combo |
| Digital Signaling Protocol |
| ADSL2+ over ISDN | Yes |
| VDSL2 over ISDN | Yes |
| Protocols & Specifications |
| ITU G.994.1 (G.hs) | Yes |
| ITU G.992.3 Annex A | Yes |
| ITU G.992.3 Annex L | Yes |
| ITU G.992.5 Annex M | Yes |
| ITU G.993.2 | Yes |
| ITU G.992.5 Annex M | Yes |
| ITU G.992.5 Annex A | Yes |
| ITU G.992.5 Annex B | Yes |
| ITU G.992.3 Annex B | Yes |
| Expansion / Connectivity |
| Interfaces |
| LAN | 3 x 10Base-T/100Base-TX – RJ-45 |
| LAN | 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45 |
| WAN | 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 |
| WAN | 1 x VDSL2 / ADSL2+ over ISDN – RJ-11 |
| Management | 1 x console – RJ-45 |
| USB 2.0 | 1 x 4 pin USB Type A |
| Antenna |
| Antenna | External detachable |
| Antenna Qty | 3 |
| Directivity | Omni-directional |
| Gain Level | 2 dBi |
| Power |
| Power Device | External power adapter – 30 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous |
| Pricing Type | Refurbished |
| Localization | Europe |
| Software / System Requirements |
| OS Provided | Cisco IOS Advanced Security |
| Dimensions & Weight |
| Width | 9.5 in |
| Depth | 9 in |
| Height | 1.8 in |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity |
