| General |
|
| Device Type |

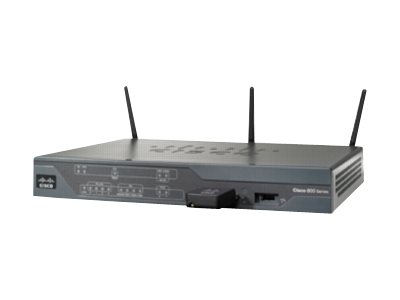

Wireless router – 4-port switch (integrated) |
| Enclosure Type |
Desktop |
| Connectivity Technology |
Wireless, wired |
| Data Link Protocol |
Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft 2.0) |
| Frequency Band |
2.4 GHz |
| Capacity |
IPSec VPN tunnels: 20 |
| Network / Transport Protocol |
L2TP, RSVP, IPSec, PPPoE, PPPoA, FTP, DHCP, DNS, L2TPv3, DDNS |
| Routing Protocol |
OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, PIM-SM, GRE, policy-based routing (PBR), WCCP |
| Remote Management Protocol |
Telnet, SNMP 3, HTTP, HTTPS, SSH |
| Encryption Algorithm |
LEAP, DES, Triple DES, MD5, TLS, PEAP, TTLS, TKIP, WPA, WPA2, WPA-PSK, PKI, 128-bit AES, 192-bit AES, 256-bit AES |
| Authentication Method |
RADIUS, TACACS+ |
| Features |
NAT support, VPN support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, Stateful Packet Inspection (SPI), content filtering, DiffServ support, MAC address filtering, IPv6 support, High Availability, Intrusion Prevention System (IPS), URL filtering, Stateful Failover, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), MIMO technology, Spanning Tree Protocol (STP) support, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, Quality of Service (QoS), Link Fragmentation and Interleaving (LFI), Dynamic Multipoint VPN (DMVPN), WAN failover, DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), DNS proxy, Bidirectional Forwarding Detection (BFD) |
| Compliant Standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.3ah, Wi-Fi CERTIFIED, IEEE 802.1ag, IEEE 802.11n (draft 2.0), CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN50082-1, EN55022 Class B, EN 61000-6-1, AS/NZ 3548 Class B, EN 60555-2, FCC CFR47 Part 15, FCC CFR47 Part 15 B, VCCI V-3, EN 300 386 |
| RAM |
512 MB (installed) / 1024 MB (max) – DDR2 SDRAM – SO-DIMM 200-pin |
| Flash Memory |
128 MB |
| Status Indicators |
Port status, power |
| Expansion / Connectivity |
|
| Interfaces |
LAN: 4 x 10Base-T/100Base-TX – RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX – RJ-45 ¦ Management: 1 x console – RJ-45 ¦ USB: 1 x 4 pin USB Type A |
| Expansion Slots |
1 (total) / 1 (free) x SO-DIMM 200-pin |
| Antenna |
|
| Antenna |
External detachable |
| Antenna Qty |
3 |
| Directivity |
Omni-directional |
| Gain Level |
2 dBi |
| Power |
|
| Power Device |
External power adapter – 30 Watt |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Miscellaneous |
|
| Cables Included |
1 x network cable – 6 ft |
| Software / System Requirements |
|
| OS Provided |
Cisco IOS Advanced IP services |
| Dimensions & Weight |
|
| Width |
12.8 in |
| Depth |
10.4 in |
| Height |
1.7 in |
| Weight |
5.51 lbs |
