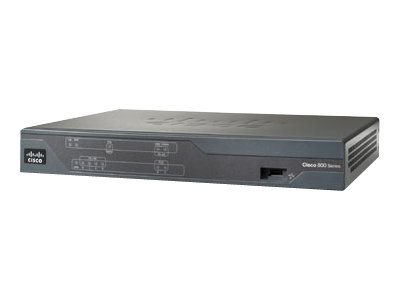

Cisco 886 VDSL/ADSL Annex J over ISDN Multi-mode – router – ISDN/DSL – desktop
Tech overview
2,299.00 د.إ
Cisco 880 Series Integrated Services Routers are fixed-configuration routers that provide collaborative business solutions for secure voice and data communication to small businesses and enterprise teleworkers. They offer concurrent broadband services over third-generation (3G), Metro Ethernet, and multiple DSL technologies to provide business continuity. Wireless 802.11n and 3G offer LAN and WAN mobility. The routers provide the performance required for concurrent services, including firewall, intrusion prevention, content filtering, and encryption for VPNs; optional 802.11g/n for mobility; and quality-of-service (QoS) features for optimizing voice and video applications. In addition, the web-based Cisco Configuration Professional configuration tool simplifies setup and deployment. Centralized management capabilities give network managers visibility and control of the network configurations at the remote site.
| Specifications |
|---|
| General |
| Device Type | Router – 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Capacity | IPSec VPN tunnels: 20 |
| Network / Transport Protocol | L2TP, IPSec, PPPoE, PPPoA, FTP, DHCP, DNS, L2TPv3, DDNS |
| Routing Protocol | OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, PIM-SM, GRE |
| Remote Management Protocol | Telnet, SNMP 3, HTTP, HTTPS, SSH |
| Encryption Algorithm | LEAP, DES, Triple DES, SSL, PEAP, TKIP, PKI, 128-bit AES, 192-bit AES, 256-bit AES |
| Authentication Method | RADIUS, TACACS+ |
| Features | NAT support, VPN support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, SPI, content filtering, DiffServ support, MAC address filtering, IPv6 support, High Availability, IPS, URL filtering, Stateful Failover, CBWFQ, WFQ, STP support, ACL support, QoS, LFI, DMVPN, WAN failover, DHCP server, VRF-Lite, DNS proxy, BFD |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN50082-1, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, AS/NZ 3548 Class B, EN 60555-2, FCC CFR47 Part 15, FCC CFR47 Part 15 B, VCCI V-3, EN 300 386 |
| RAM | 256 MB (installed) / 768 MB (max) |
| Flash Memory | 256 MB |
| Status Indicators | Port status, power |
| Communications |
| Type | ISDN / DSL modem combo |
| Digital Signaling Protocol | ADSL over ISDN, VDSL over ISDN |
| Protocols & Specifications | ITU G.992.1 (G.DMT) |
| Expansion / Connectivity |
| Interfaces | LAN: 4 x 10Base-T/100Base-TX – RJ-45 ¦ Management: 1 x console – RJ-45 ¦ WAN: 1 x VDSL / ADSL over ISDN – RJ-11 ¦ USB: 1 x 4 pin USB Type A ¦ WAN: 1 x BRI ST |
| Power |
| Power Device | External power adapter – 60 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous |
| Pricing Type | Refurbished |
| Software / System Requirements |
| OS Provided | Cisco IOS Advanced Security |
| Dimensions & Weight |
| Width | 12.8 in |
| Depth | 9.8 in |
| Height | 1.7 in |
