Tech overview
3,199.00 د.إ

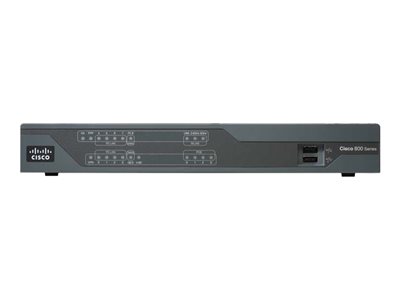

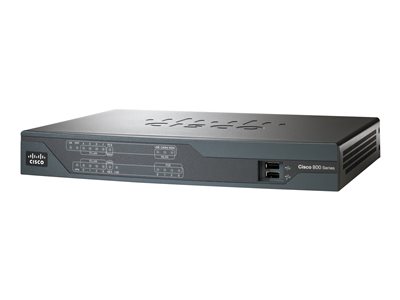

If you need an affordable router but don’t want to give up important network services such as security, take a look at the Cisco 800 Series Integrated Services Routers. These ISRs deliver the secure, reliable WAN connectivity your small offices and remote workers need. But they don’t stop there.
Routing, switching, wireless, and intelligent IP network services are all bundled into one compact form factor that’s quick to install. So you get lots of functionality with a single hardware investment. That also means there’s only one device per site to manage. The 800 ISRs provide comprehensive security – encryption, VPN, firewall, and cloud-based URL filtering – to help you safeguard your customers and data.
| Specifications |
|---|
| General |
| Device Type | Router – 8-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Capacity |
| IPSec VPN tunnels | 50 |
| Network / Transport Protocol | L2TP, RSVP, IPSec, FTP, DHCP, DNS, L2TPv3, DDNS |
| Routing Protocol | OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, GRE, policy-based routing (PBR), WCCP |
| Remote Management Protocol | Telnet, SNMP 3, HTTP, HTTPS, SSH |
| Encryption Algorithm | LEAP, DES, Triple DES, SSL, PEAP, TKIP, PKI, 128-bit AES, 192-bit AES, 256-bit AES |
| Authentication Method | RADIUS, TACACS+ |
| Features | NAT support, VPN support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, Stateful Packet Inspection (SPI), content filtering, DiffServ support, MAC address filtering, IPv6 support, High Availability, Intrusion Prevention System (IPS), URL filtering, Stateful Failover, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Link Fragmentation and Interleaving (LFI), Dynamic Multipoint VPN (DMVPN), WAN failover, DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), DNS proxy, Bidirectional Forwarding Detection (BFD) |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN50082-1, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, AS/NZ 3548 Class B, EN 60555-2, FCC CFR47 Part 15, FCC CFR47 Part 15 B, VCCI V-3, EN 300 386 |
| RAM | 512 MB (installed) / 768 MB (max) |
| Flash Memory | 256 MB (installed) / 256 MB (max) |
| Status Indicators | Port status, power |
| Communications |
| Type | Modem (analog) |
| Protocols & Specifications | ITU V.92 |
| Expansion / Connectivity |
| Interfaces | LAN: 8 x 10Base-T/100Base-TX – RJ-45 Ā¦ Management: 1 x console – RJ-45 Ā¦ WAN: 1 x 10Base-T/100Base-TX – RJ-45 Ā¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 Ā¦ Management: 1 x auxiliary – RJ-45 Ā¦ Peripheral: 2 x USB 2.0 – 4 pin USB Type A Ā¦ WAN: 1 x modem |
| Power |
| Power Device | External power adapter – 60 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous |
| Pricing Type | Refurbished |
| Software / System Requirements | OS Provided: Cisco IOS Advanced IP services |
| Dimensions & Weight |
| Width | 12.8 in |
| Depth | 9.8 in |
| Height | 1.7 in |
| Weight | 5.51 lbs |
