General |
|
Device Type |

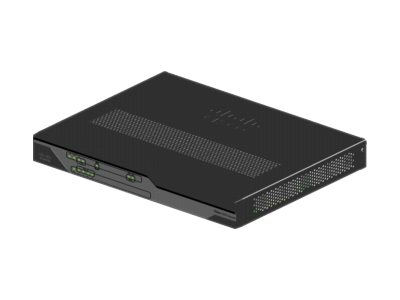

Router – 8-port switch (integrated) |
Enclosure Type |
Desktop |
Connectivity Technology |
Wired |
Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
Capacity |
|
IPSec VPN tunnels |
50 |
Network / Transport Protocol |
L2TP, RSVP, ICMP/IP, IPSec, FTP, DHCP, DNS, L2TPv3 |
Routing Protocol |
OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, GRE, OSPFv3, policy-based routing (PBR), BGP-4+, WCCP, Bidirectional Forwarding Detection (BFD) |
Remote Management Protocol |
Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI |
Encryption Algorithm |
Triple DES, PKI, 128-bit AES, 192-bit AES, 256-bit AES |
Authentication Method |
RADIUS, TACACS+ |
Features |
|
NAT support |
Yes |
VPN support |
Yes |
Load balancing |
Yes |
VLAN support |
Yes |
Auto-uplink (auto MDI/MDI-X) |
Yes |
IGMP snooping |
Yes |
Traffic shaping |
Yes |
Stateful Packet Inspection (SPI) |
Yes |
Content filtering |
Yes |
DiffServ support |
Yes |
MAC address filtering |
Yes |
IPv6 support |
Yes |
Intrusion Prevention System (IPS) |
Yes |
URL filtering |
Yes |
Stateful Failover |
Yes |
Low-latency queuing (LLQ) |
Yes |
Class-Based Weighted Fair Queuing (CBWFQ) |
Yes |
Weighted Fair Queuing (WFQ) |
Yes |
Spanning Tree Protocol (STP) support |
Yes |
Access Control List (ACL) support |
Yes |
Quality of Service (QoS) |
Yes |
Link Fragmentation and Interleaving (LFI) |
Yes |
Dynamic Multipoint VPN (DMVPN) |
Yes |
RADIUS support |
Yes |
WAN failover |
Yes |
DHCP server |
Yes |
Virtual Route Forwarding-Lite (VRF-Lite) |
Yes |
DNS proxy |
Yes |
Bidirectional Forwarding Detection (BFD) |
Yes |
DHCP relay |
Yes |
DHCP client |
Yes |
Virtual Routing and Forwarding (VRF) |
Yes |
Class of Service (CoS) |
Yes |
Compliant Standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN50082-1, EN 61000-6-1, AES, FCC CFR47 Part 15, VCCI V-3 |
RAM |
512 MB (installed) / 1 GB (max) |
Flash Memory |
256 MB (installed) / 256 MB (max) |
Status Indicators |
Port status, power |
Communications |
|
Type |
DSL modem |
Digital Signaling Protocol |
SHDSL |
Protocols & Specifications |
ITU G.991.2 (G.shdsl) |
Expansion / Connectivity |
|
Interfaces |
LAN: 8 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ WAN: 1 x SFP (mini-GBIC) ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Management: 1 x console – RJ-45 ¦ USB: 1 x 4 pin USB Type A ¦ WAN: 1 x SHDSL – RJ-45 |
Expansion Slots |
1 (total) / 1 (free) x memory |
Power |
|
Power Device |
External power adapter – 60 Watt |
Voltage Required |
AC 120/230 V (50/60 Hz) |
Miscellaneous |
|
Cables Included |
1 x network cable – 6 ft ¦ 1 x modem cable |
Software / System Requirements |
|
OS Provided |
Cisco IOS Advanced IP services |
Dimensions & Weight |
|
Width |
12.7 in |
Depth |
9.8 in |
Height |
1.7 in |
