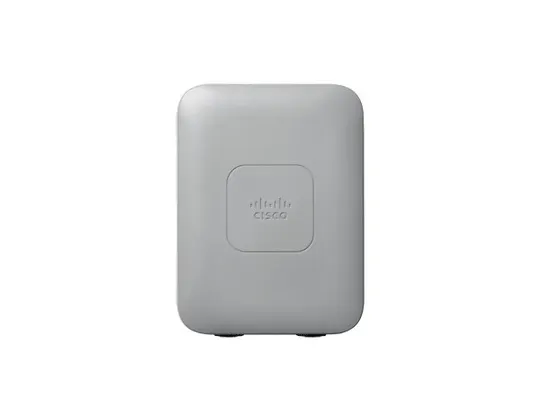

Cisco Aironet 1542D 1100 Mbit/s Grey Power over Ethernet (PoE)

Add to Wishlist
Dual-band 802.11a/g/n/ac, Wave 2, internal directional antennas, A regulatory domain

6,399.00 د.إ

Add to Wishlist

Highlights

Cisco® Aironet® 1540 Series outdoor access points offer the latest 802.11ac Wave 2 functions in a rugged, ultra-low-profile housing that service providers and enterprises can deploy easily. The Cisco Aironet 1540 Series is ideal for applications requiring rugged outdoor Wi-Fi coverage and supports the latest 802.11ac Wave 2 radio standard. Housed in a compact, aesthetically pleasing, easy-to-deploy package, the 1540 Series offers flexible deployment options for service providers and enterprise networks that need the fastest links possible for mobile outdoor clients (smartphones, tablets, and laptops) and wireless backhaul. The 1540 Series access points give network operators the flexibility to balance their desired wireless coverage with their need for easy deployment. Whether deployed as a traditional access point or a wireless mesh access point, the 1540 Series provides the throughput capacity needed for today’s bandwidth-hungry devices.

SKU: AIR-AP1542D-A-K9 Category: Tag:
Feature Specification
2.4 GHz Y
5 GHz Y
Maximum data transfer rate 1100 Mbit/s
Maximum data transfer rate (5 GHz) 867 Mbit/s
Ethernet LAN data rates 10, 100, 1000 Mbit/s
Frequency band 2.412 – 2.462 GHz, 5.28 – 5.32 GHz, 5.5 – 5.58 GHz, 5.66 – 5.7 GHz, 5.745 – 5.825 GHz
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Number of users 400 user(s)
Channels quantity 27 channels
Channel bandwidth 80 MHz
MIMO Y
MIMO type Multi User MIMO
Maximal-Ratio Combining (MRC) Y
Cyclic Shift Diversity (CSD) Y
Dynamic Frequency Selection (DFS) Y
Data unit aggregation A-MSDU, A-MPDU
Transmitting power 27 dBmW
Security algorithms AES, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, IPSec, LEAP, WPA, WPA2
MAC address filtering Y
Ethernet LAN (RJ-45) ports 1
WAN connection Ethernet (RJ-45)
Power over Ethernet (PoE) Y
Power consumption (max) 13.9 W
Placement Pole, Wall
Product colour Grey
International Protection (IP) code IP67
Reset button Y
LED indicators Y
Certification UL60950 CAN/CSA-C22.2 No. 60950 IEC 60950 EN 60950 EN61000-4-5 EN61000-4-4 EN61000-4-3 EN61000-4-2 FCC RSS-210 RSS-102 AS/NZS 4268.2003 ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) EN 300 328 EN 301 893 ICES-003 EN 301 489-1, -17
Antenna type Internal
Antenna direction type Directional
Antenna features Integrated antenna
Antennas quantity 2
Antenna gain level (max) 9 dBi
Polarization Dual polarization
Operating relative humidity (H-H) 5 – 95%
Operating temperature (T-T) -40 – 65 °C
Storage temperature (T-T) -40 – 85 °C
Storage relative humidity (H-H) 5 – 95%
Width 200 mm
Depth 150 mm
Height 61 mm
Weight 1.25 kg
Number of products included 1 pc(s)
