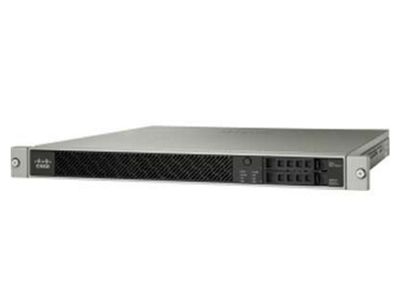

Cisco ASA 5500-X Series Next-Generation Firewalls with firepower services
Cisco ASA 5500-X Next Generation, ASA5545-FPWR-K9, 8*GE ports, 1GE Mgmt, AC, 3DES/AES, AVC, FirePower
AED92,999.00
ASA5545-FPWR-K9 Overview
ASA5545-FPWR-K9 firewall is the entry-level next-generation firewall system. It is designed for big-size enterprise. The next-generation firewall combines with FirePower services which offers greater visibiltiy and automation with superior response to protect the network. it offers the industryās first adaptive threat focus next-generation firewall which includes SourceFires next-generation Intrusion Prevention System or engine IPS and advanced Malware capabilities, this comprehensive next-generation solution lowers costs in simplifies complexity. Cisco’s integrated approach correlated threats with vulnerabilities to determine their impact.
Quick Specs
Table 1 shows the Quick Specs.
| Product Code | ASA5545-FPWR-K9 |
| Firepower service | Supported, including Firesight management Center, ASDM 9.X |
| Interfaces | 8 copper GE ports,
1 copper GE management port, 1 expansion slot |
| Stateful inspection throughput (maximum) | 3 Gbps |
| 3DES/AES VPN throughput | 400 Mbps |
| IPsec VPN peers | 2,500 |
| Virtual interfaces (VLANs) | 300 |
| Memory | 12 GB |
| Flash | 8 GB |
| Height (rack units) | 1 RU |
| Dimensions (D x H x W) | 4.24 x 42.9 x 48.4 cm |
Product Details
Table 2 shows the Front Panel LEDsā descriptions.
| LED | Color | Description |
| BOOT | Flashing green | Power-up diagnostics are running, or system is booting. |
| Solid green | System has passed power-up diagnostics. | |
| Off | Power-up diagnostics are not operational. | |
| ACTIVE | Solid green | Failover pair is operating normally. |
| Off | Failover is not operational. | |
| PS | – | Power supply status |
| ALARM | Off | Normal operating system function. |
| Solid amber | Critical Alarm indicating one or more of the following:
āa major failure of a hardware or software component. āan over-temperature condition. āpower voltage is outside of the tolerance range. |
|
| VPN | Solid green | VPN tunnel is established. |
| Off | No VPN tunnel established. | |
| HD0 | Flashing green | Proportioned to read/write activity. |
| Solid amber | Hard-disk drive failure. | |
| Off | No hard-disk drive present. | |
| HD1 | Flashing green | Proportioned to read/write activity. |
| Solid amber | Hard-disk drive failure. | |
| Off | No hard-disk drive present. |
Noteļ¼
| ā | LEDs | ā¤ | AC Socket |
| ā” | One Console port | ā„ | one Management 0/0 interface |
| ā¢ | Two USB Ports | ā¦ | I/O slot |
| ā£ | Eight Gigabit Ethernet data interfaces |
Ā· There are seven LEDs on the back panel: POWER, ALARM, BOOT, ACTIVE, VPN, HD0 and HD1.
ASA5545-FPWR-K9 Specification
ASA5545-FPWR-K9 Specifications |
|
| Throughput:
Application Control (AVC) |
1,500 Mbps |
| Throughput:
Application Control (AVC) and IPS |
1,000 Mbps |
| Maximum concurrent sessions | 750,000 |
| Maximum New Connections per second | 30,000 |
| Supported applications | More than 3,000 |
| URL categories | 80+ |
| Number of URLs categorized | More than 280 million |
| Centralized configuration, logging, monitoring, and reporting | Multi-device Cisco Security Manager (CSM) and Cisco Firepower Management Center |
| On-Device Management | ASDM |
| Feature | Cisco ASA 5545-X w/ FirePOWER Services |
| Stateful inspection throughput (maximum1) | 3 Gbps |
| Stateful inspection throughput (multiprotocol2) | 1.5 Gbps |
| Triple Data Encryption Standard/ Advanced Encryption Standard (3DES/AES) VPN throughput3 |
400 Mbps |
| Users/nodes | Unlimited |
| IPsec site-to-site VPN peers | 2500 |
| Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections5 | 25005 |
| Virtual interfaces (VLANs) | 300 |
| Security contexts5(included; maximum) | 2; 50 |
| High availability4 | Active/ Active and Active/ Standby |
| Integrated Wireless Access Point
(See Cisco AP 702 datasheet for WiFi technical details) |
N/A |
| Expansion slot | 1 interface card |
| User-accessible Flash slot | – |
| USB 2.0 ports | 2 |
| Integrated I/O | 8 GE copper |
| Expansion I/O | 6 GE copper or 6Ā GE SFP |
| Dedicated management port | Yes (1 GE) |
| Serial ports | 1 RJ-45 console |
| Solid-state drive | 2 slots, RAID 1 or 120 GB MLC SED |
| Memory | 12 GB |
| System flash | 8 GB |
| System bus | Multibus architecture |
| Temperature | 23 to 104Ā°F (-5 to 40Ā°C) |
| Relative humidity | 90 percent |
| Altitude | Designed and tested for 0 to 10,000 ft (3050 m) |
| Temperature7 | -13 to 158Ā°F (-25Ā to 70Ā°C) |
| Relative humidity | 10 to 90 percent |
| Altitude | Designed and tested for 0 to 15,000 ft (4572 m) |
| AC range line voltage | 100 to 240 VAC |
| AC normal line voltage | 100 to 240 VAC |
| AC current | 5A, 100 to 120V or 2.5A, 200 to 240V |
| AC frequency | 50/60 Hz |
| Dual-power supplies | Yes |
| DC domestic line voltage | -40.5 to 56 VDC (-48 VDC nominal) |
| DC international line voltage | -55 to -72 VDC (-60 VDC nominal) |
| DC current | 15A (maximum input) |
| Steady state | 86W |
| Maximum peak |
125W |
| Maximum heat dissipation |
427 Btu/hr |
| Form factor | 1RU, 19-in. rack-mountable |
| Weight (with AC power supply) | 16.82 lb (7.63 kg) with single power supply;
18.86 lb (8.61 kg) with dual power supply |
