| General |
|
| Device Type |

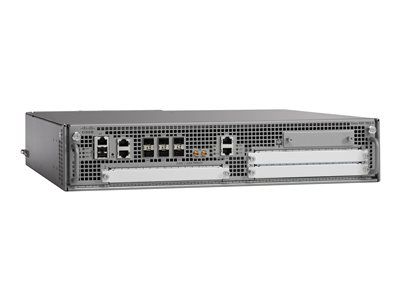

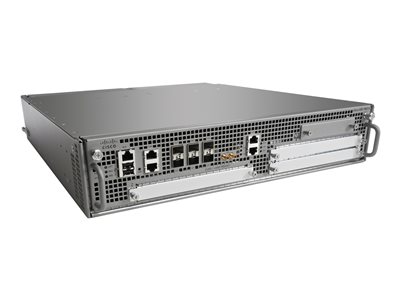

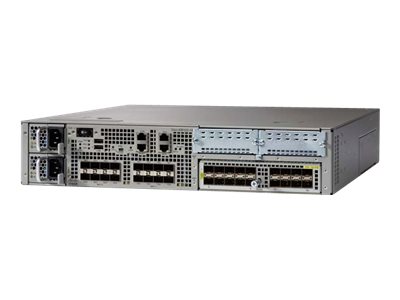

Router |
| Enclosure Type |
Front to back airflow rack-mountable – modular – 2U |
| Connectivity Technology |
Wired |
| Data Link Protocol |
10 Gigabit Ethernet |
| Performance |
ESP bandwidth: 100 Gbps ¦ Encryption throughput: up to 25 Gbps |
| Capacity |
IPSec tunnels: 8000 |
| Network / Transport Protocol |
IPSec |
| Features |
NAT support, DPI, ACL support, QoS, NetFlow, DSCP support, ISSU, DNA support |
| Compliant Standards |
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN55022, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, EN55022 Class A, CISPR 22, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, VCCI Class A, AS/NZS CISPR 22, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386 |
| RAM |
16 GB (installed) / 16 GB (max) |
| Status Indicators |
Power, active, standby, status |
| Expansion / Connectivity |
|
| Interfaces |
8 x 1000Base-X – SFP (mini-GBIC) ¦ 8 x 10GBase-X – SFP+ ¦ Management: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Management: 1 x console – RJ-45 ¦ Management: 1 x auxiliary – RJ-45 ¦ USB: 2 x 4 pin USB Type A ¦ USB: 1 x console |
| Expansion Slots |
1 (total) / 1 (free) x expansion slot |
| Installed Modules Qty (Max) |
0 (installed) / 1 (max) |
| Power |
|
| Power Device |

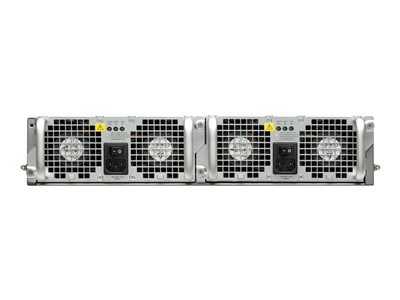

Internal power supply – hot-plug – 500 Watt |
| Power Redundancy |
Yes |
| Installed Qty |
2 (installed) / 2 (max) |
| Miscellaneous |
|
| Included Accessories |
Ethernet Port Adapter (EPA) blank cover, faceplate blank cover |
| Software / System Requirements |
|
| OS Required |
Cisco IOS XE 16.2.1S |
| Dimensions & Weight |
|
| Width |
17.3 in |
| Depth |
19.3 in |
| Height |
3.5 in |
| Weight |
34.06 lbs |
