Cisco ASR 1002-X VPN and Firewall Bundle – router – desktop, rack-mountable
Tech overview

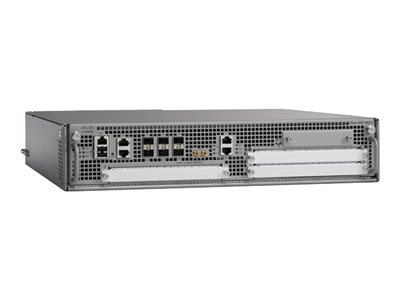

Cisco ASR 1002-X VPN and Firewall Bundle – Router – GigE – front to back airflow – rack-mountable
AED400,999.00
The Cisco ASR 1002-X router offers embedded services for enterprise and service provider networks in a 2-rack unit small form factor. It is integrated with a route processor, embedded services processor, and SPA interface processor. The ASR 1002-X is ideal for high-end enterprise branch offices, and as a high-performing edge solution for a private WAN.
| Specifications |
|---|
| General |
| Device Type | Router |
| Enclosure Type | Front to back airflow desktop, rack-mountable – modular – 2U |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet |
| Performance |
| Bandwidth | 10 Gbps |
| Encryption throughput | 4 Gbps |
| Network / Transport Protocol | IPSec |
| Encryption Algorithm | AES |
| Features |
| Firewall protection | Yes |
| Hardware encryption | Yes |
| VPN support | Yes |
| Compliant Standards | CISPR 24, EN55022, VCCI Class A ITE, EN55024, CISPR 22, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, AS/NZS 60950-1, AS/NZ 3548 Class A, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, EN 300 386 |
| RAM | 8 GB (installed) / 16 GB (max) |
| Status Indicators | Power, active, standby, status |
| Expansion / Connectivity |
| Interfaces | Management: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 |
| Management: 1 x console – RJ-45 |
| Management: 1 x auxiliary – RJ-45 |
| 6 x Ethernet 1000 – SFP (mini-GBIC) |
| USB: 2 x 4 pin USB Type A |
| Expansion Slots | 3 (total) / 3 (free) x expansion slot |
| Installed Modules Qty (Max) | 0 (installed) / 3 (max) |
| Power |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Installed Qty | 2 (installed) / 2 (max) |
| Miscellaneous |
| Rack Mounting Kit | Included |
| Software / System Requirements |
| OS Provided | Cisco IOS Universal |
| Dimensions & Weight |
| Width | 17.2 in |
| Depth | 18.1 in |
| Height | 3.5 in |
| Weight | 38.27 lbs |
