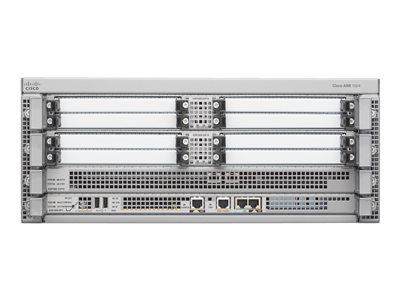

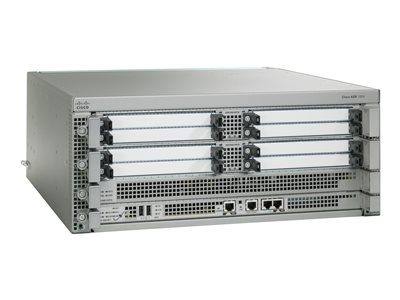

Cisco ASR 1004 – router – desktop, rack-mountable – with Cisco ASR 1000 Series Embedded Services Processor, 20Gbps / Route Processor 2 / SPA Interface Processor 10G


Tech overview

Cisco ASR 1004 – Router – rack-mountable – with Cisco ASR 1000 Series Embedded Services Processor, 20Gbps / Route Processor 2 / SPA Interface Processor 10G

AED313,999.00

The Cisco ASR 1000 series aggregation services routers are designed to optimize service provider edge and enterprise aggregation solutions. The innovative hardware and software design of these routers integrates powerful resiliency and intelligent services into a single router platform.

The Cisco ASR 1004 router in a 4-rack unit (RU) form factor supports up to 8 shared port adapters (SPAs) and comes with one route processor and one embedded services processor slot. This provides flexibility for future upgrades, enhancing control plane and data plane scalability. The Cisco ASR 1004 router provides 10 Gbps throughput support, making it a very cost-effective edge solution.

SKU: ASR1K4R2-20G/K9 Category: Tag:
Specifications
General
Device Type Router – with Cisco ASR 1000 Series Embedded Services Processor, 20Gbps / Route Processor 2 / SPA Interface Processor 10G
Enclosure Type Desktop, rack-mountable – modular – 4U
Connectivity Technology Wired
Performance
Bandwidth 20 Gbps
Capacity
Concurrent L2TP VPN tunnels 16000
ACL rules 16000
IPv4 routes 4000000
IPv6 routes 4000000
IPSec VPN tunnels 10000
Network / Transport Protocol
L2TP
IPSec
Remote Management Protocol
SNMP
Telnet
SSH
Encryption Algorithm
Triple DES
AES
Features
Firewall protection
NAT support
VPN support
MPLS support
IPv6 support
Stateful switchover (SSO)
Access Control List (ACL) support
Quality of Service (QoS)
MPLS VPN
Compliant Standards
CISPR 24
EN55022
VCCI Class A ITE
EN55024
CISPR 22
EN50082-1
CSA 22.2 No. 60950
EN 61000-6-1
AS/NZS 60950-1
AS/NZ 3548 Class A
ICES-003 Class A
FCC CFR47 Part 15
UL 60950-1
IEC 60950-1
EN 60950-1
EN 300 386
RAM
8 GB
Hard Drive
80 GB
Expansion / Connectivity
Interfaces Management: 1 x 10Base-T/100Base-TX – RJ-45
Management: 1 x console – RJ-45
Management: 1 x auxiliary – RJ-45
4 x SFP (mini-GBIC)
Expansion Slots 1 (total) / 0 (free) x processor board
11 (total) / 9 (free) x expansion slot
Installed Modules Qty (Max) 3 (installed) / 12 (max)
Power
Power Device Internal power supply (not installed)
Power Redundancy Yes
Installed Qty 2 (max)
Miscellaneous
Rack Mounting Kit Included
Software / System Requirements
OS Provided Cisco IOS Advanced Enterprise Services
Dimensions & Weight
Width 17.2 in
Depth 21.9 in
Height 7 in
