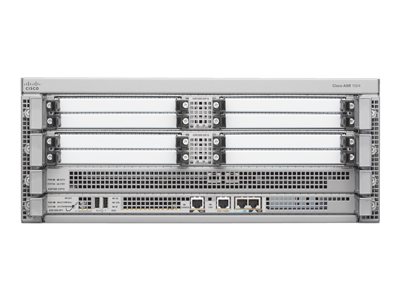

Cisco ASR 1004 – VPN Bundle – router – desktop, rack-mountable – with Cisco ASR 1000 Series Embedded Services Processor, 40Gbps / Route Processor 2 / SPA Interface Processor 40G

Add to Wishlist

Tech overview

Cisco ASR 1004 – VPN Bundle – router – front to back airflow – rack-mountable – with Cisco ASR 1000 Series Embedded Services Processor, 40Gbps / Route Processor 2 / SPA Interface Processor 40G

AED511,699.00

Add to Wishlist

The Cisco ASR 1000 series aggregation services routers are designed to optimize service provider edge and enterprise aggregation solutions. The innovative hardware and software design of these routers integrates powerful resiliency and intelligent services into a single router platform.

The Cisco ASR 1004 router in a 4-rack unit (RU) form factor supports up to 8 shared port adapters (SPAs) and comes with one route processor and one embedded services processor slot. This provides flexibility for future upgrades, enhancing control plane and data plane scalability. The Cisco ASR 1004 router provides 10 Gbps throughput support, making it a very cost-effective edge solution.

SKU: ASR1K4R2-40G-VPNK9 Category: Tag:
pecifications
General
Device Type Router – with Cisco ASR 1000 Series Embedded Services Processor, 40Gbps / Route Processor 2 / SPA Interface Processor 40G
Enclosure Type Front to back airflow desktop, rack-mountable – modular – 4U
Connectivity Technology Wired
Performance Forwarding performance: 23 Mpps ¦ Bandwidth: 40 Gbps ¦ VPN throughput (IPSec): 11 Gbps
Capacity IPv4 routes: 4000000 ¦ IPv6 routes: 1000000 ¦ ACL rules: 4000 ¦ IPSec VPN tunnels: 8000 ¦ NAT entries: 2000000 ¦ L2TP VPN tunnels: 64000 ¦ QoS hardware entries: 128000
Network / Transport Protocol IPSec
Remote Management Protocol SNMP, Telnet, SSH, CLI
Encryption Algorithm AES
Features Firewall protection, NAT support, VPN support, load balancing, IPv6 support, Non-Stop Forwarding (NSF), Stateful switchover (SSO), Quality of Service (QoS), IPv4 support, NetFlow
Compliant Standards CISPR 24, EN55022, VCCI Class A ITE, EN55024, CISPR 22, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, EN 300 386
RAM 16 GB
Hard Drive 80 GB
Expansion / Connectivity
Interfaces Management: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Management: 1 x console – RJ-45 ¦ Management: 1 x auxiliary – RJ-45 ¦ Management: 1 x USB – 4 pin USB Type A
Expansion Slots 8 (total) / 5 (free) x expansion slot processor board
Installed Modules Qty (Max) 3 (installed) / 12 (max)
Power
Power Device Internal power supply (not installed)
Power Redundancy Yes
Installed Qty 2 (max)
Miscellaneous
Rack Mounting Kit Included
Software / System Requirements
OS Provided Cisco IOS Advanced Enterprise Services
Dimensions & Weight
Width 17.2 in
Depth 22 in
Height 7 in
