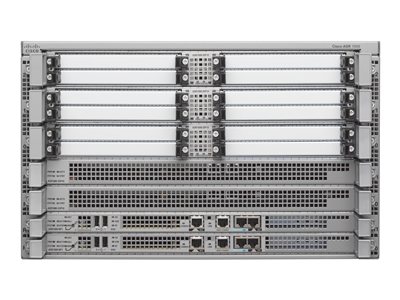

Cisco ASR 1006 – modular expansion base – desktop, rack-mountable
Tech overview
Cisco ASR 1006 – Modular expansion base – rack-mountable – refurbished
71,599.00 د.إ
The Cisco ASR 1006 Router in a 6-rack unit (RU) form factor is the most flexible edge routing solution in the Cisco ASR 1000 Series. It has the option of dual route processor and embedded services processor support with 10 Gbps throughput support. It also supports up to 12 shared port adapters (SPAs), which makes it the highest port density solution of the three Cisco ASR 1000 Routers.
| Specifications |
|---|
| General |
| Device Type | Modular expansion base |
| Enclosure Type | Desktop, rack-mountable – modular – 6U |
| Connectivity Technology | Wired |
| Compliant Standards | CISPR 24, EN55022, VCCI Class A ITE, EN55024, CISPR 22, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, AS/NZS 60950-1, AS/NZ 3548 Class A, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, EN 300 386 |
| Expansion / Connectivity |
| Expansion Slots | 12 (total) / 12 (free) x expansion slot ¦ 2 (total) / 2 (free) x expansion slot ¦ 2 (total) / 2 (free) x processor board |
| Installed Modules Qty (Max) | 0 (installed) / 14 (max) |
| Power |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Installed Qty | 2 (installed) / 2 (max) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | Rack Mounting Kit Included |
| Pricing Type | Refurbished |
| Dimensions & Weight |
| Width | 17.2 in |
| Depth | 21.9 in |
| Height | 10.5 in |
| Environmental Parameters |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 – 90% |
