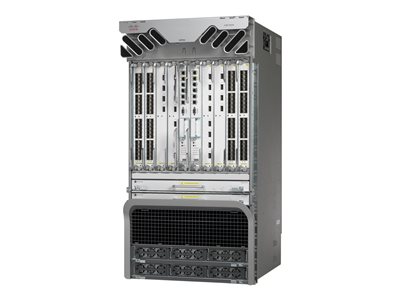

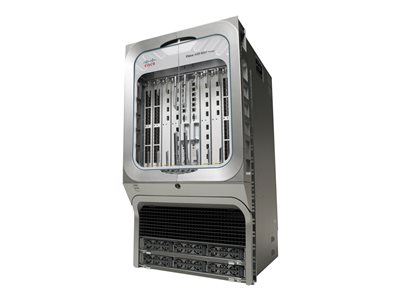

Cisco ASR 9010 with PEM Version 2 – router – desktop, rack-mountable – with 2 x Cisco ASR 9000 Series Route Switch Processor 440 (A9K-RSP440-SE)
Tech overview
AED128,999.00
The Cisco ASR 9000 series product family represents an exciting paradigm in the world of carrier Ethernet transport with exceptional scalability, carrier-class reliability, environmentally conscious design, incredible flexibility, and an attractive price-to-performance benchmark. Cisco ASR 9000 series routers are designed to provide true carrier-class reliability using the Cisco IOS XR operating system, comprehensive system redundancy, and a full complement of network resiliency schemes. The Cisco ASR 9000 series also offers service and application-level intelligence focused on optimized video delivery and mobile aggregation. Finally, the Cisco ASR 9000 series is designed to simplify and enhance the operational and deployment aspects of service-delivery networks.
| Specifications |
|---|
| General |
| Device Type | Router – with 2 x Cisco ASR 9000 Series Route Switch Processor 440 (A9K-RSP440-SE) |
| Enclosure Type | Front to back airflow desktop, rack-mountable – modular |
| Connectivity Technology | Wired |
| Compliant Standards | ETSI, BSMI, CISPR 22 Class A, EN55022, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-8, VCCI Class A ITE, EN55024, EN50082-1, EN 61000-6-1, ACA TS001, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, EN 61000-4-8, EN 60825, FDA, EN 300 386 |
| RAM | 24 GB |
| Flash Memory | 16 GB |
| Hard Drive | 32 GB |
| Expansion / Connectivity |
| Interfaces | Management: 2 x RJ-45 ¦ Serial: 2 x auxiliary – RJ-45 ¦ Management: 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Alarm: 6 x output ¦ 4 x 10Gb Ethernet – SFP+ ¦ Serial: 2 x RS-232/422 ¦ USB 2.0: 2 x 4 pin USB Type A |
| Expansion Slots | 10 (total) / 8 (free) x expansion slot |
| Installed Modules Qty (Max) | 2 (installed) / 10 (max) |
| Power |
| Power Device | Internal power supply (not installed) – 2 kW |
| Power Redundancy | Yes |
| Installed Qty | 8 (max) |
| Voltage Required | DC -40 -72 V (50/60 Hz) |
| Dimensions & Weight |
| Width | 17.5 in |
| Depth | 28.6 in |
| Height | 36.8 in |
