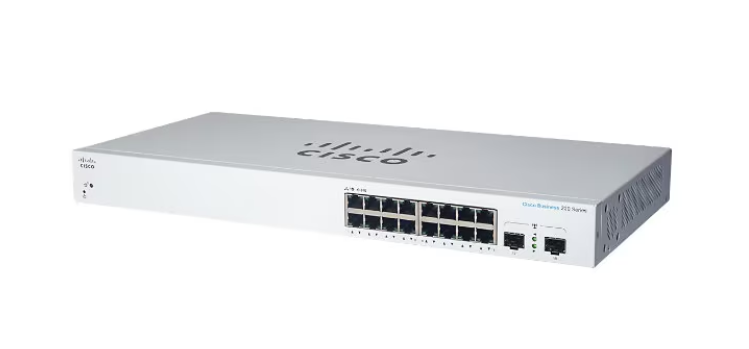

Cisco Business 220 Series CBS220-16P-2G – switch – 18 ports – smart – rack-mountable

Add to Wishlist

Quick tech specs

  • 16P-2G
  • smart
  • rack-mountable
  • Switch
  • 16 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink)
  • PoE+ (130 W)

AED2,299.00

Add to Wishlist

Know your gear

The Cisco Business CBS220-16P-2G switch is simple and affordable smart switch for business-class network. CBS220 series bridge the gap between the affordability of an unmanaged device and the ease-of-use of smart switches. With their intuitive dashboard, mobile app support, and multiple Power over Ethernet (PoE) options, these switches deliver a solid business network.
Category: Tag:
Overview
Brand Cisco
Product Line Cisco Business 220 Series
Model CBS220-16P-2G
Manufacturer Cisco Systems
Memory
Flash Memory Installed 64 megabyte
RAM Installed 256 megabyte
Network & Communication
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features 802.1x authentication, Access Control List (ACL) support, Auto voice VLAN, Automatic Media-Dependent Interface Crossover (MDIX), BOOTP support, BPDU Guard, Broadcast Storm Control, Cable Diagnostics Function, Cisco Discovery Protocol (CDP), DHCP client, DiffServ Code Point (DSCP) support, DiffServ support, DoS attack prevention, Dual firmware images, Duplicate Address Detection (DAD), Energy Efficient Ethernet, Fanless, Generic VLAN Registration Protocol (GVRP), Guest VLAN, Head-of-line (HOL) Blocking Prevention, IGMP snooping, LACP support, LLDP support, LLDP-MED, Loopback detection, MAC address filtering, Management Information Base (MIB), Multicast Storm Control, Neighbor Discovery Protocol (NDP), Port mirroring, Port Security, Quality of Service (QoS), STP loop guard, Syslog support, TCP support, Telnet server, Type of Service (ToS), Unknown Storm Control, User Datagram Protocol (UDP), VLAN management, VLAN support, Weighted Round Robin (WRR)
Form Factor Rack-mountable
Jumbo Frame Support 9216 bytes
MAC Address Table Size 8192 entries
Manageable Yes
PoE Budget 130 watt
Ports 18
Power Over Ethernet (PoE) PoE+
Product Type Switch
Remote Management CLI, DHCP, HTTP, HTTPS, ICMP, RADIUS, RMON, RSTP, SCP, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, TACACS+, Telnet, TFTP
Routing Protocol IGMP, IGMPv2, IGMPv3, MLD, MLDv2, MSTP, RSTP, STP
Smart Yes
Status Indicators Link/activity/speed, System
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Connectivity
Interface Provided 16 x 10/100/1000 Base-T RJ-45 PoE+ – 30 W, 2 x 1000Base-X SFP uplink
Port Quantity 16
Port Type 10/100/1000 (PoE+)
Ports Type (2nd) Gigabit SFP (uplink)
Power
Frequency 50/60 hertz
Power Consumption Operational 160.2 watt
Required Voltage AC 100-240 volt
Technical Information
Encryption SSL
Humidity Range Storage 10 – 90% (non-condensing)
Max Operating Temperature 122 degree Fahrenheit
Max Storage Temperature 158 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Min Storage Temperature -4 degree Fahrenheit
MTBF 611,476 Hours
Operating Humidity 10 – 90% (non-condensing)
Product Information
Authentication Method RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS, TACACS+
Capacity ACL rules: 512, Buffer capacity (MB): 4.1, MSTP instances: 16, VLANs supported: 256
Country Canada, Chile, Colombia, Latin America, Mexico, United States
Device Type Internal power supply
Packaged Quantity 1
Performance Forwarding performance (64-byte packet size): 26.78 Mpps, Switching capacity: 36 Gbps
Ports (2nd) Quantity 2
Rack Mounting Kit Included
Dimensions & Weight
Height 1.7 inch
Weight 6.68 lbs
Width 17.3 inch
Depth 8 inch
Physical Characteristics
Color Category White
Certifications & Listings
Compliant Standards CSA 22.2, C-Tick, FCC CFR47 Part 15 A, UL 60950
