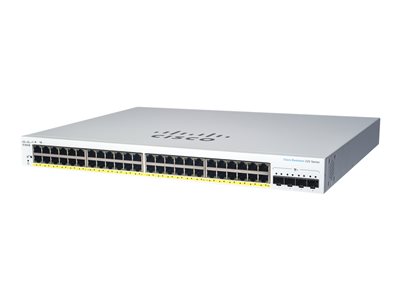

Cisco Business 220 Series CBS220-48T-4X – switch – 48 ports – smart – rack-mountable

Add to Wishlist
Cisco Business 220 Series CBS220-48T-4X – Switch – smart – 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ (uplink) – rack-mountable

4,099.00 د.إ

Add to Wishlist

The Cisco Business CBS220-48T-4X switch is simple and affordable smart switch for business-class network. CBS220 series bridge the gap between the affordability of an unmanaged device and the ease-of-use of smart switches. With their intuitive dashboard, mobile app support, and multiple Power over Ethernet (PoE) options, these switches deliver a solid business network.

SKU: CBS220-48T-4X-NA Category: Tag:
Device Type Switch – 48 ports – smart
Enclosure Type Rack-mountable
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 Base-T RJ-45 + 4 x 10GBase-X SFP+ uplink
Performance Forwarding performance (64-byte packet size): 130.94 Mpps
Switching capacity: 176 Gbps
Capacity MSTP instances: 16
VLANs supported: 256
ACL rules: 512
Buffer capacity (MB): 16
MAC Address Table Size 8192 entries
Jumbo Frame Support 9216 bytes
Routing Protocol IGMPv2, IGMP, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP
Remote Management Protocol SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Encryption Algorithm SSL
Authentication Method Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, ACL support, QoS, Cable Diagnostics Function, LACP support, LLDP support, Port Security, DHCP client, Energy Efficient Ethernet, MIB, dual firmware images, NDP, GVRP, 802.1x authentication, Type of Service (ToS), DSCP support, VLAN management, LLDP-MED, Guest VLAN, UDP, STP loop guard, WRR, HOL Blocking Prevention, loopback detection, Telnet server, Unknown Storm Control, BPDU Guard, CDP, DAD, TCP support, auto voice VLAN, MDIX
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
RAM 256 MB
Flash Memory 64 MB
Status Indicators System, link/activity/speed
Expansion / Connectivity Interfaces: 48 x 10/100/1000 Base-T RJ-45, 4 x 10GBase-X SFP+ uplink
Power Power Device: Internal power supply
Voltage Required: AC 100-240 V (50/60 Hz)
Power Consumption Operational: 41.2 Watt
Miscellaneous Rack Mounting Kit: Included
MTBF: 420,827 hours
Compliant Standards C-Tick, UL 60950, CSA 22.2, FCC CFR47 Part 15 A
Localization Colombia, Canada, Chile, Mexico, Latin America, United States
Dimensions & Weight Width: 17.3 in
Depth: 10.1 in
Height: 1.7 in
Weight: 7.8 lbs
