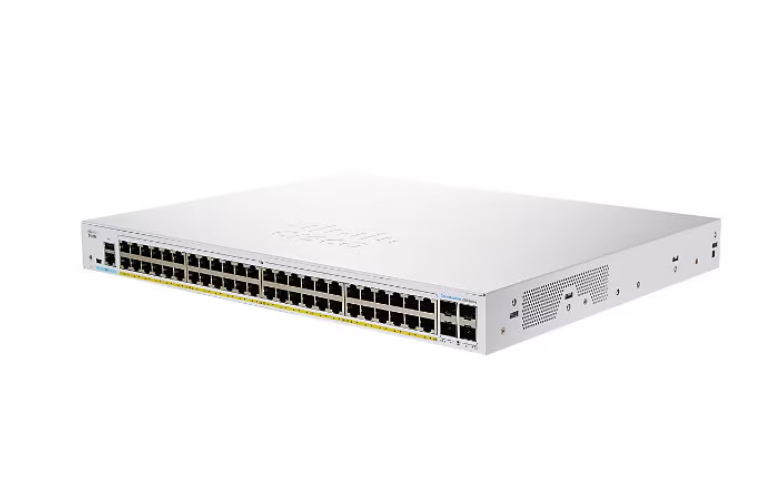

Cisco Business 250 Series CBS250-48P-4X – switch – 48 ports – smart – rack-mountable

Add to Wishlist

Quick tech specs

  • 48P-4X
  • L3
  • 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
  • PoE+ (370 W)
  • Switch
  • smart
  • rack-mountable

AED7,099.00

Add to Wishlist

Know your gear

The Cisco Business CBS250-48P-4X switch is the next generation of affordable, smart switch that combines powerful network performance, security, and reliability with a comprehensive suite of network features you need for a solid small business network.
SKU: CBS250-48P-4X-NA Category: Tag:
Category Details
Overview
Brand Cisco
Product Line Cisco Business 250 Series
Model CBS250-48P-4X
Manufacturer Cisco Systems
Processor
Clock Speed 800 megahertz
Processor Brand ARM
Memory
Flash Memory Installed 256 megabyte
RAM Installed 512 megabyte
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features Access Control List (ACL) support, ARP support, Bridge protocol data unit (BPDU), DHCP server, DHCP snooping, DHCP support, DoS attack prevention, Dynamic ARP Inspection (DAI), Dynamic VLAN Support (GVRP), IP source guard, IP/Mac/Port Binding (IPMB), ISATAP tunnel support, LLDP-MED, Multicast VLAN Registration (MVR), Multiple Spanning Tree Protocol (MSTP) support, Multiple tag protocol identifiers (TPID), Per-VLAN Spanning Tree Plus (PVST+), Private VLAN, Quality of Service (QoS), RADIUS support, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Secure Core Technology (SCT), Secure Sensitive Data (SSD), Spanning Tree Protocol (STP) support, Storm Control, STP loop guard, STP Root Guard, Type of Service (ToS), Uni-Directional Link Detection (UDLD), VLAN support, Voice VLAN, Weighted Round Robin (WRR)
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 2KB
MAC Address Table Size 8K entries
Manageable Yes
PoE Budget 370 watt
Ports 48
Power Over Ethernet (PoE) PoE+
Product Type Switch
Remote Management ICMP, RMON, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2
Routing Protocol CIDR, IGMP, Policy-based routing (PBR)
Smart Yes
Status Indicators Link/activity, Status
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Connectivity
Interface Provided 1 x console (USB) Type B, 1 x console RJ-45, 1 x USB Type A, 4 x 10GBase-X SFP+, 48 x 10/100/1000 Base-T RJ-45 PoE+
Port Quantity 48
Port Type 10/100/1000 (PoE+)
Ports Type (2nd) 10 Gigabit SFP+
Power
Frequency 50/60 hertz
Technical Information
Encryption SSL
Humidity Range Storage 10 – 90% (non-condensing)
Max Operating Temperature 122 degree Fahrenheit
Max Storage Temperature 158 degree Fahrenheit
Min Operating Temperature 23 degree Fahrenheit
Min Storage Temperature -13 degree Fahrenheit
MTBF 856,329 Hours
Operating Humidity 10 – 90% (non-condensing)
Product Information
Authentication Method RADIUS, Secure Shell (SSH), TACACS+
Capacity Buffer capacity (MB): 3, Link aggregation groups: 8, VLANs supported: 4094
Country Canada, Chile, Colombia, Latin America, Mexico, United States
Device Type Internal power supply
Packaged Quantity 1
Performance Forwarding performance (64-byte packet size): 130.94 Mpps, Switching capacity: 176 Gbps
Ports (2nd) Quantity 4
Rack Mounting Kit Included
Dimensions & Weight
Height 1.7 inch
Weight 11.97 lbs
Width 17.5 inch
Depth 13.8 inch
Physical Characteristics
Color Category White
Certifications & Listings
Compliant Standards CSA C22.2, FCC CFR47, UL 60950, USGv6
ENERGY STAR Certified No
EPEAT Compliant No
TCO Certified No
